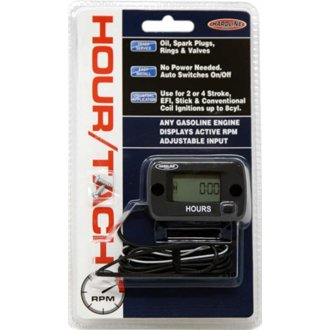

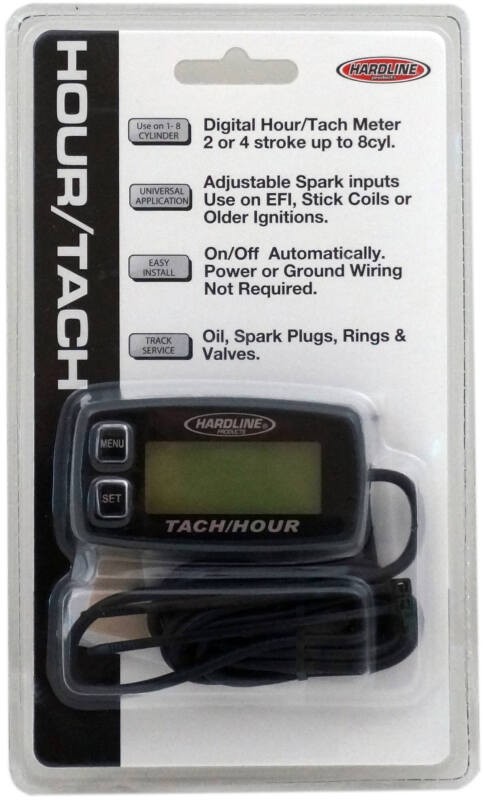

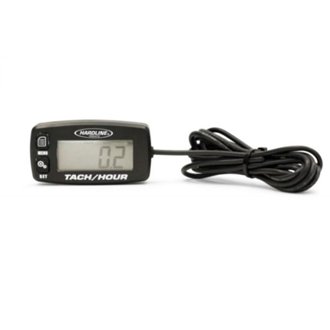

Hour Tachometer Meter Up To 8 Cylinders

Description

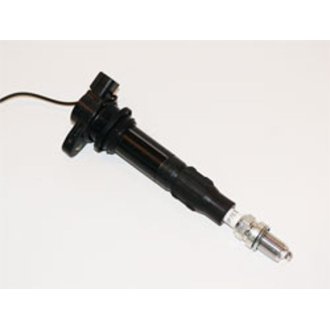

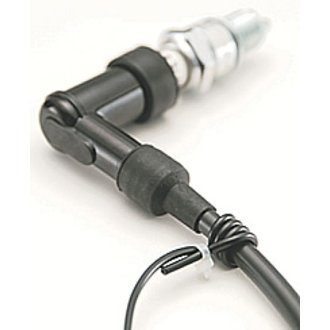

Surface-mounted inductive hour meter / tachometer. Works on any gasoline engine up to 8 cylinders. Knowing what to service and when, is the key to a successful preventative maintenance program for your motorcycle, ATV, PWC, Boat and Generator. Meter display can be read at all times. The hour tachometer meter shows total hours accumulated when engine is off. Shows tachometer when engine is running. Adjustable inductive inputs for multiple spark combinations. Installation is easy with simple one wire wrap around spark plug boot or head of pen stick coil. Green backlit LCD display measures 1-5/8″ wide x 5/8″ high. Built-in replaceable battery and battery level indicator on screen display.

Easy Installation – peel & stick, no wiring necessary just plug and play

Works on any gas engine up to 8 cylinders and 20,000 RPM

Perfect for performance 4-stroke motocross bikes with needy valvetrain components and short oil change intervals

Can be used with fuel injection engines

Max RPM is recallable

60" Pick-up wire length can be shortened by trimming

Log book included for service recording

Track the service life of Your Vehicle – oil changes, valve, adjustments, spark plugs, etc…

Operates with new generation 2-stroke or 4-stroke “pen stick” coils

No power required – Includes replaceable CR2032 battery inside

Records and Displays to 9,999.9 hours

Resolution: .1=6 minutes

Refresh rate 0.5/1.0s

RPM accuracy 10 RPM

IP 68 Rating: 100% epoxy encapsulated casing resists water

One-year manufacturer's warranty

Unit measures: 2-1/8″ L x 1-1/2″ W x 5/8″ H

Includes 3M® two-sided tape for easy mounting

Note:

Does not fit on any Hardline Products Meter Mounts (HRMM-2,3,4,5)

When using meter in a salt-water environment upgrade battery cover screws to stainless steel

Pick-up wire can not be extended on this model

Features & benefits

• Works on any gas engine up to 8 cylinders and 20,000 rpm
• Pick-up wire length is 56" and can't be extended
• Pick-up wire length can be shortened by trimming
• 100% epoxy encapsulated casing resists water
• Includes Log Book for service recording
• Can be used with Fuel Injection engines
• Records and Displays to 9,999.9 hours
• Max RPM is recallable
• RPM accuracy 10 RPM
• No Power Required
