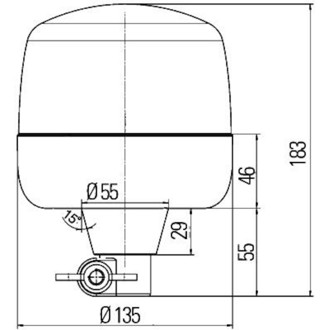

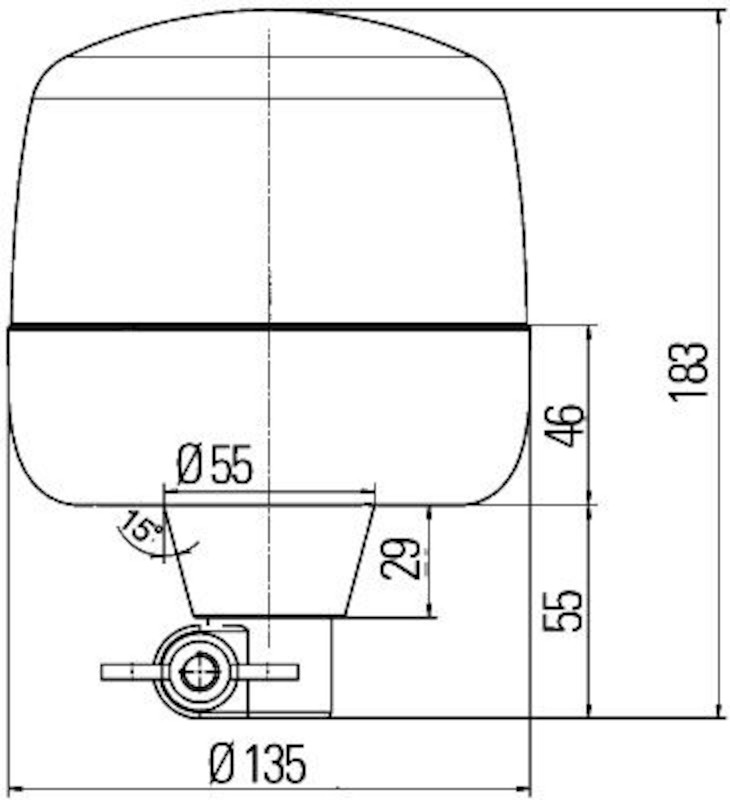

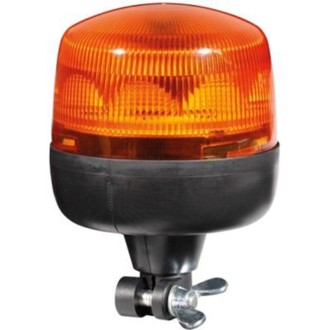

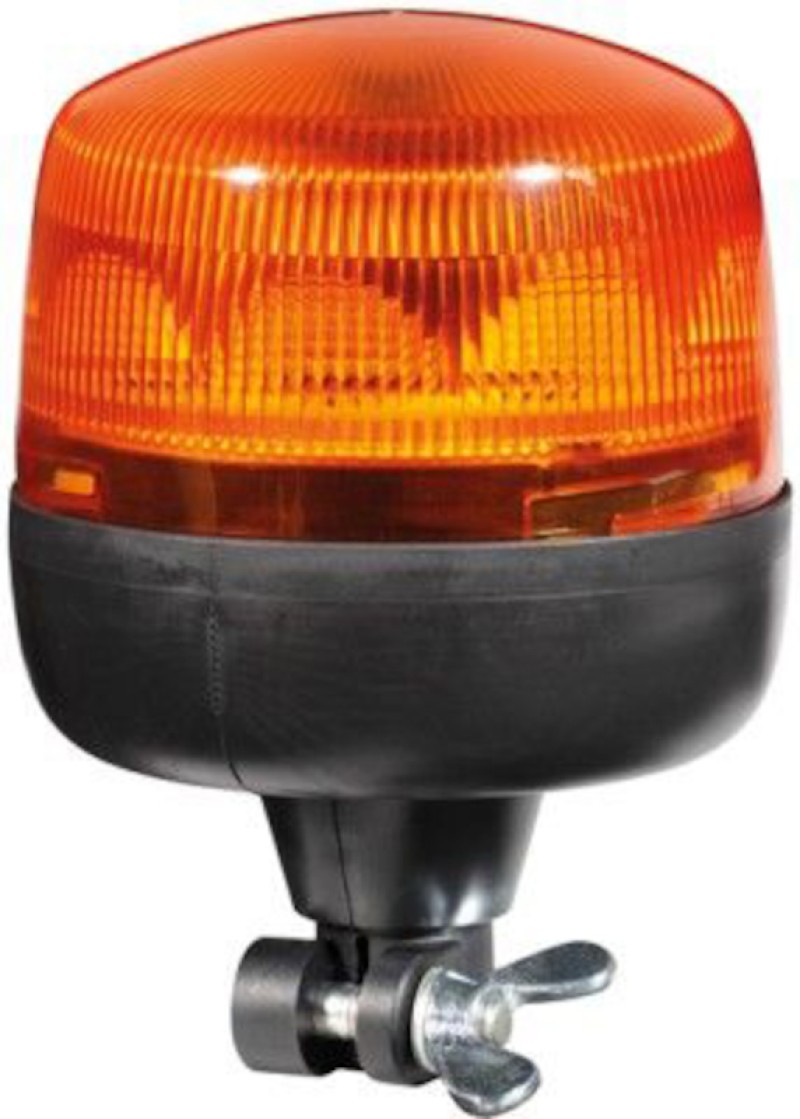

The RotaLED beacon is available as a flashing or rotating version. The signal is generated by means of an electronic concept and thus without moving parts. The beacon can be connected to an operating voltage of 10 - 30 V and has an impact-resistant polycarbonate light cover. The height is approx. 124 mm (F) to 184 mm (FL), depending on the design. The RotaLED beacon meets the requirements of IP 5K4K and IP X9K and is therefore protected against dust and resistant to high-pressure cleaners. The product is attached to the vehicle by means of screws in the case of fixed mounting or by means of a flexible pipe socket or magnetic adapter in the case of the other variants. The beacon is particularly suitable as an attention-grabbing warning signal and for safeguarding danger spots.
Benefit from our OE (original equipment) know-how and our technological expertise. With more than 38,000 products, HELLA offers a remarkably good range of vehicle-specific components, universal parts and accessories - all to top quality standards for successful business. HELLA offers you a great selection of spare parts. On the one hand, a great range of electronics for continuously rising repair volumes - with sensors, actuators and control units. On the other hand a broad range of electrical products that has grown over many years. HELLA is the Number 1 player on the independent component market for vehicle-specific lighting, and has the most extensive market coverage. Our innovative power allows us to continually further develop our product range of headlights, lamps, interior lights, bulbs, and more.
| Assy/Disassy By Qualified Personnel Required! | . |
|---|---|
| Certification | Regulatory Compliance Mark (RCM) |
| Diffusing Lens Material | PC (Polycarbonate) |
| ECE Regulation | R65 |
| Electromagnetic Compatibility (EMC) | ECE R10/R65 |
| EMC/CISPR Standard | Class 5 |
| Fulfills EMC/CISPR Norm | Class 5 |
| Fulfills Test Standard | RCM |
| Height [in] | 7.20 |
| Height [mm] | 183.00 |
| Housing Color | Black |
| Housing Material | PC (Polycarbonate) |
| Illuminated Area [in] | 4.57 |
| Illuminated Area [mm] | 116.00 |
| IP Rating | IP5K4K |
| Lamp Type | LED |
| LED Color | White |
| LED Quantity | 8 |
| Lens Color | Yellow / Amber |
| Light Color | Yellow / Amber |
| Light Design | LED |
| Light Function | with Flashing Warning Signal |
| Mounting Type | Bolted |
| Number Of Light Functions | 1 |
| Operating Temperature From [°C] | -10.00 |
| Operating Temperature From [°F] | 14.00 |
| Operating Temperature To [C°] | 60.00 |
| Outer Diameter 1 [in] | 5.31 |
| Outer Diameter 1 [mm] | 135.00 |
| Outer Diameter [in] | 5.31 |
| Outer Diameter [mm] | 135.00 |
| Power Consumption [A] | 0.40 |
| Quantity | 1 |
| Registration Type | ECE Approved |
| Reverse Polarity Protection | Yes |
| Rotating Beacon RPM | 123 1/min |
| Rotating Beacon RPM [1/min] | 123.00 |
| SAE Regulation | J845 Class 2 |
| Supplementary Article/Supplementary Info 2 | Electromagnetic Compatibility (EMC) |
| Temperature Range From [°C] | -10.00 |
| Temperature Range From [°F] | 14.00 |
| Temperature Range To [°C] | 60.00 |
| Temperature Range To [°F] | 140.00 |
| Test Mark | ECE-R65 |
| Type | Yes |
| Voltage | 12.0 |
| Voltage [VDC] | 12.00 |
| Wattage | 10.0 |
| Wattage [W] | 10.00 |
| Weight [g] | 745.00 |
| Weight [kg] | 745.00 |
| Weight [lbs] | 1642.73 |
| Weight [oz] | 26.28 |
12 Months
