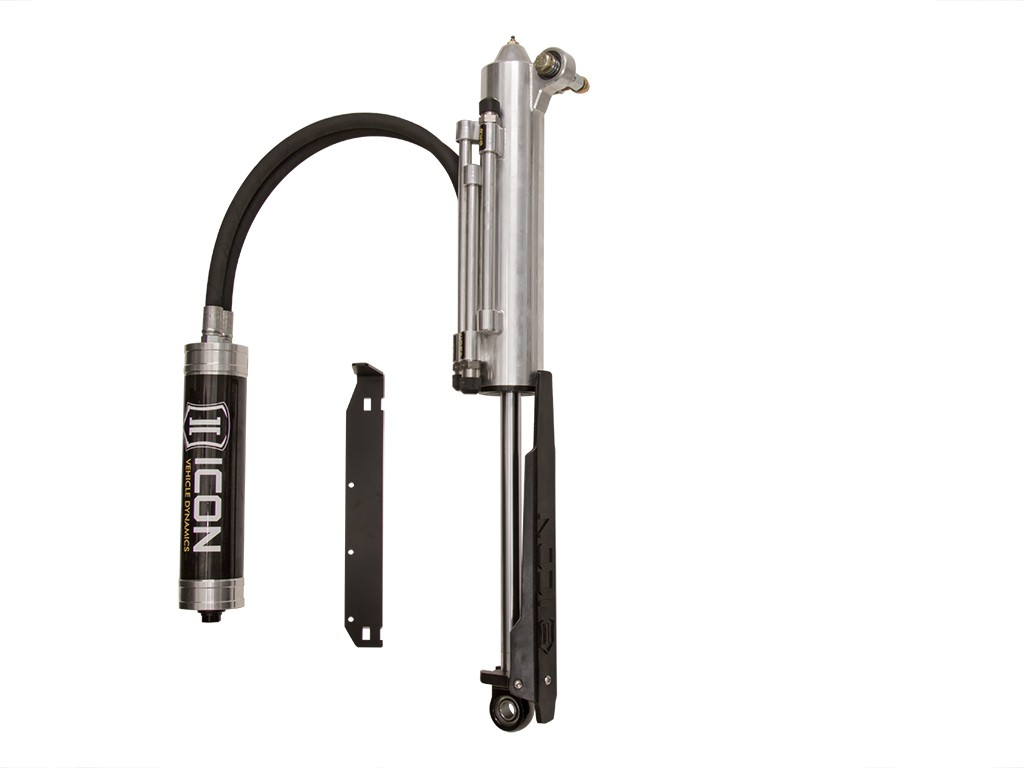

ICON 2010-14 Ford Raptor RXT 3.0 Zeta Remote Reservoir Shock, Driver Side

Name: ICON 2010-14 Ford Raptor RXT 3.0 Zeta Remote Reservoir Shock, Driver Side
Brand: ICON Vehicle Dynamics
SKU: 166652881
Price: 2229.31 USD
Availability: InStock

Part Number 95201L (166652881)

Select vehicle for guaranteed fit

$2,229.31

In stockShips by 21st Oct

Description

ICON RXT Rear 3.0 Remote Reservoir Bypass Shocks are far from the norm when compared to a traditional bypass shock you see on Trophy Trucks and other off-road race vehicles. Each bypass valve has a specific port design and individually equipped with a different spring rate to ensure proper performance at each zone of shock travel. These same bypass valves feature dampened valve stops for quiet and precise operation. That means no clicking noises as you hit bumps or road chatter driving down the road. The biggest difference in these shocks versus an industry standard bypass shock, are the included “Easy-to-Adjust” knobs and the replaceable bypass tubes. The “Easy to Adjust” High Resolution Clicker Knobs do not require any tools for adjustment, and can be adjusted in seconds from plush off-road performance to firm on road manners for extra control while driving the mountains or towing a trailer. Another unique feature of this shock is the replaceable bypass tubes that can be swapped out during a standard rebuild if any damage were to occur, where a normal bypass shock body would need to be completely replaced, saving you hundreds of dollars.

ICON Vehicle Dynamics specializes in performance suspension components, shocks, and accessories for today’s most popular trucks & SUVs. Since 2008, ICON has been developing products that redefine the limits of what a “stock” vehicle is capable of. ICON is part of a family of manufacturing companies that includes state of the art machining, laser cutting, and metal forming processes. This unique situation allows ICON to develop products that are at the forefront of technology quickly and efficiently, while maintaining a standard of quality unrivaled in the industry.

Fitment

This part fits the following vehicles.

2010-2014 Ford F-150

Features & benefits

3.0 RXT 3 tube bypass rear shock with 3.0 remote reservoir
Unique side-mounted upper eyelet allows for increased up-travel while utilizing factory mounting location
Recirculating Dual Hose Reservoir (Patent Pending) keeps shock temperatures low by pumping heat to the reservoir for increased dissipation
Anti-Wobble Link (Patent Pending) keeps bypass tubes clear of leaf spring and tire
Easy-to-Adjust detented adjustment knobs offer quick adjustability without the use of tools
High resolution bypass valves designed for noticeable fine tune adjustments in rebound and compression
High flow CNC machined welded bypass blocks designed to increase fluid flow for enhanced performance & high definition tuning
Replaceable bypass tubes that can easily be replaced if damaged

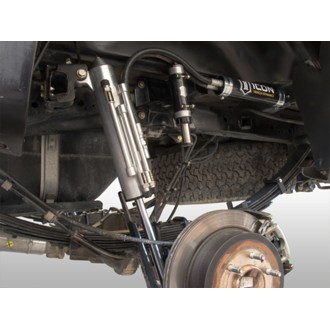

Direct bolt in to OEM location with bypass adjustment knobs easily accessible for tuning adjustment
Special engineered damped valve seats for quiet and precise operation without the standard bypass loud “clicking” noise you will find with other brands
Multi stage cad plated finish with polished and anodized top cap / rod ends
Protective shin guards standard with every shock
Direct replacement - this shock absorber is designed to match the fit and function of the original absorber on specified vehicles
Restores functionality - reliable replacement for an original shock absorber that has failed due to fatigue
Durable construction - this part is made from quality materials to ensure reliable performance and long service life
Trustworthy quality - backed by team of product experts in the United States and more than a century of automotive experience
These shocks are sold individually. Passenger side shock part # 95201R is also required.

Specifications

Active Or Passive Suspension	Passive
Adjustable	Yes
Adjustable Compression	Yes
Adjustable Rebound	Yes
Adjustable Ride Height	No
Body Color	Gray
Body Diameter	3
Body Material	Steel
Boot Included	yes
Bore Diameter	2.75
Bypass Tube Quantity	3
Bypass Type	External
Coil Spring Insulator(s) Included	No
Color	Silver
Compressed Length	17.46
Country Of Origin	USA
Cylinder Color	Gray
Cylinder Material	Steel
Cylinder Outside Diameter	3
Damping Adjustment Type	Manual
Damping Type	Oil
Dust Shield Included	Yes
Dust Shield Material	Polyurethane
Extended Length	30.43
External Reservoir	Yes
Finish	Ceramic Coated
Gas Charged	Yes
Grade Type	Performance
Hydraulic Lockout	No
Includes Bump Stop	No
Internal Construction Type	Single Tube
Internal Rebound Bumper	No
Internal Rebound Spring	Yes
Lower Mount Bushing Inside Diameter	.75
Lower Mount Sleeve Inside Diameter	.475
Lower Mount Sleeve Overall Length	1.54
Lower Mount Type	EYELET
Mounting Hardware Included	Yes
Remote Reservoir	Yes
Reservoir Diameter	3
Reservoir Hose Inside Diameter	.5
Reservoir Hose Length	24
Reservoir Length	12.5
Rod Diameter	1
Self-Leveling	No
Service Parts	252003 - SEAL INSTALL TOOL 2.5/3.0
Shaft Diameter	1
Shaft Material	Chrome
Shock Absorber Body End Measuring Point	CENTER OF EYELET
Shock Absorber Bore Size	2.75
Shock Absorber Rod End Measuring Point	CENTER OF EYELET
Shock Stroke	13
Travel Length	13
Type	Telescopic
Upper Mount Bushing Inside Diameter	.75
Upper Mount Sleeve Inside Diameter	.475
Upper Mount Sleeve Overall Length	1.54
Upper Mount Type	EYELET
Valving Type	Linear

Warranty

1 Year
