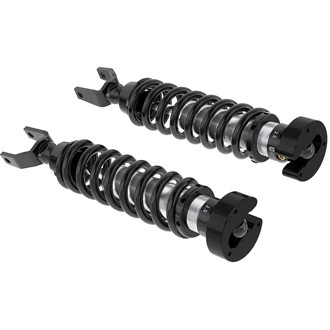

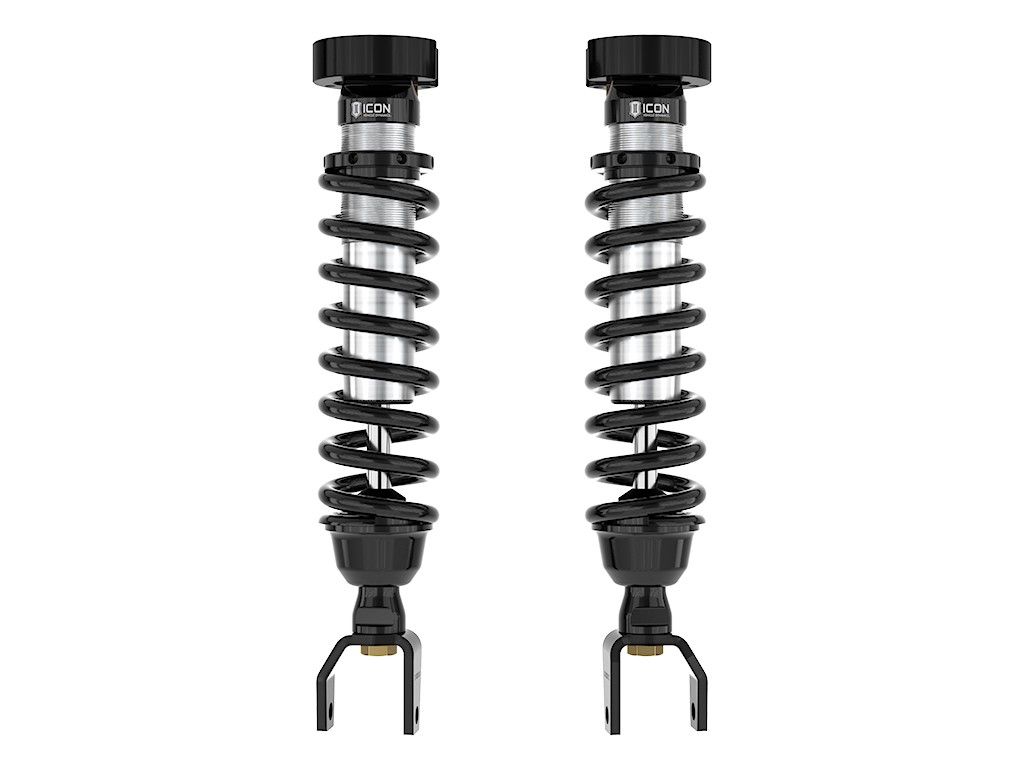

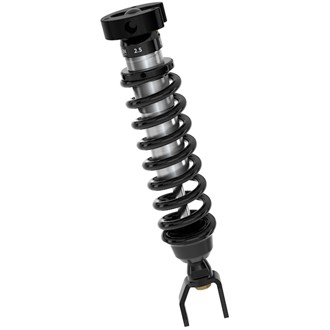

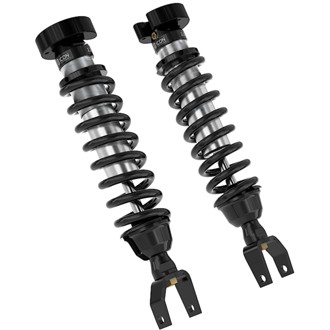

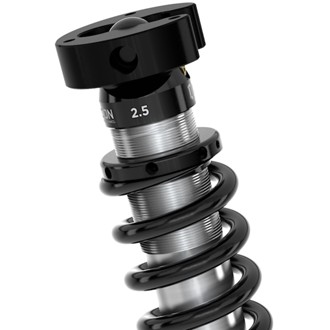

ICON 2019-2026 Ram 1500, 2-3" Lift, Front, V.S. 2.5 Series Coilover Kit, Internal Reservoir
Description
ICON Vehicle Dynamics V.S. 2.5 Series coilover shocks are an incredible upgrade for the front end of 2019-2026 Ram 1500 trucks. ICON’s Vehicle-specific valving provides a sport tuned feel on and off-road while 2-3” of lift height adjustability allows the use of larger, more aggressive wheel and tire combinations. The larger 2.5” shock body and increased piston area over stock components and application specific length to maximize wheel travel provide improved damping ability and outstanding ride characteristics across varying types of terrain. When paired with ICON 2.0 Aluminum Series or 2.5 Series rear shocks vehicle control will be balanced front to rear, resulting in the best overall driving experience for your Ram 1500 truck.
ICON Vehicle Dynamics specializes in performance suspension components, shocks, and accessories for today’s most popular trucks & SUVs. Since 2008, ICON has been developing products that redefine the limits of what a “stock” vehicle is capable of. ICON is part of a family of manufacturing companies that includes state of the art machining, laser cutting, and metal forming processes. This unique situation allows ICON to develop products that are at the forefront of technology quickly and efficiently, while maintaining a standard of quality unrivaled in the industry.
Fitment
This part fits the following vehicles.
- 2019-2026 Ram 1500
Features & benefits
- 6061 Aircraft grade aluminum CNC machined components
- Corrosion resistant CAD plated shock body with 7/8" diameter shaft
- High strength alloy CNC machined lower mounting clevis
- FK rod end bearings for extended longevity and minimal deflection
- Increased wheel travel and ride quality over stock
- 100% Bolt-on - no drilling, cutting or welding necessary for installation
- Unique valving developed for the lighter weight and chassis dynamics of the 2019-2026 Ram 1500
- Vehicle specific tuned for superior shock damping and control
- Adjustable from 2-3" of front lift height over stock
- ICON engineered coil springs
- OEM Wheels & Tires Fitment: Yes
- Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.00" Backspace / 0mm Offset
- Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.00" Backspace / 0mm Offset
- Recommended Aftermarket Tires: 35" x 12.50" (fender trimming and modifications will be required.)
- APPLICATION NOTE #18: These systems are to be used with aftermarket upper control arms only
- APPLICATION NOTE #100: Spring not rated for EcoDiesel equipped trucks
- APPLICATION NOTE #105: Not for vehicles with rear factory air ride
- APPLICATION NOTE #131: Will not fit 2019-2024 Ram 1500 Classic models
- APPLICATION NOTE #184: Will not fit Ram 1500 TRX or Ram 1500 RHO
- APPLICATION NOTE #653: 2019-2026 Ram 1500 Rebel will have lift height range 1.25-2.25" over stock
Specifications
| Active Or Passive Suspension | Passive |
|---|---|
| Adjustable Compression | No |
| Adjustable Damping | No |
| Adjustable Rebound | No |
| Adjustable Ride Height | Yes |
| Assembled | Yes |
| Body Diameter | 2.5 |
| Coil Over Springs Included | Yes |
| Compressed Length | 18.04 |
| Country Of Origin | USA |
| Cylinder Color | Silver |
| Cylinder Finish | Cadmium Plated |
| Cylinder Material | Steel |
| Damping Type | Oil |
| Dust Shield Included | No |
| Extended Length | 23.77 |
| Front Spring Rate | 700 |
| Gas Charged | Yes |
| Grade Type | Performance |
| Includes Bump Stop | Yes |
| Internal Construction Type | Single Tube |
| Lower Mount Type | Clevis |
| Material | Aluminum |
| Maximum Lift | 3 |
| Maximum Ride Height Raising Distance | 3 |
| Minimum Lift | 2 |
| OEM Wheels & Tires Fitment | Yes |
| Recommended Aftermarket Tires | 35" x 12.50" (fender trimming and modifications will be required.) |
| Recommended Aftermarket Wheels | ICON Alloys - 18x9" w/ 5” Backspace / 0mm Offset |
| Remote Reservoir | No |
| Reservoir Style | Internal |
| Self-Leveling | No |
| Service Parts | 252010 - 2.5 IFP REBUILD KIT |
| Shaft Diameter | 0.875 |
| Shock Absorber Body End Measuring Point | Top of Upper Mount Plate |
| Shock Absorber Rod End Measuring Point | Center of Clevis Holes |
| Spring Color | Black |
| Spring Material | Steel |
| Spring Rate Type | Linear |
| Travel Length | 5.73 |
| Upper Mount Type | Mounting Plate |
| Valving Type | Digressive |
