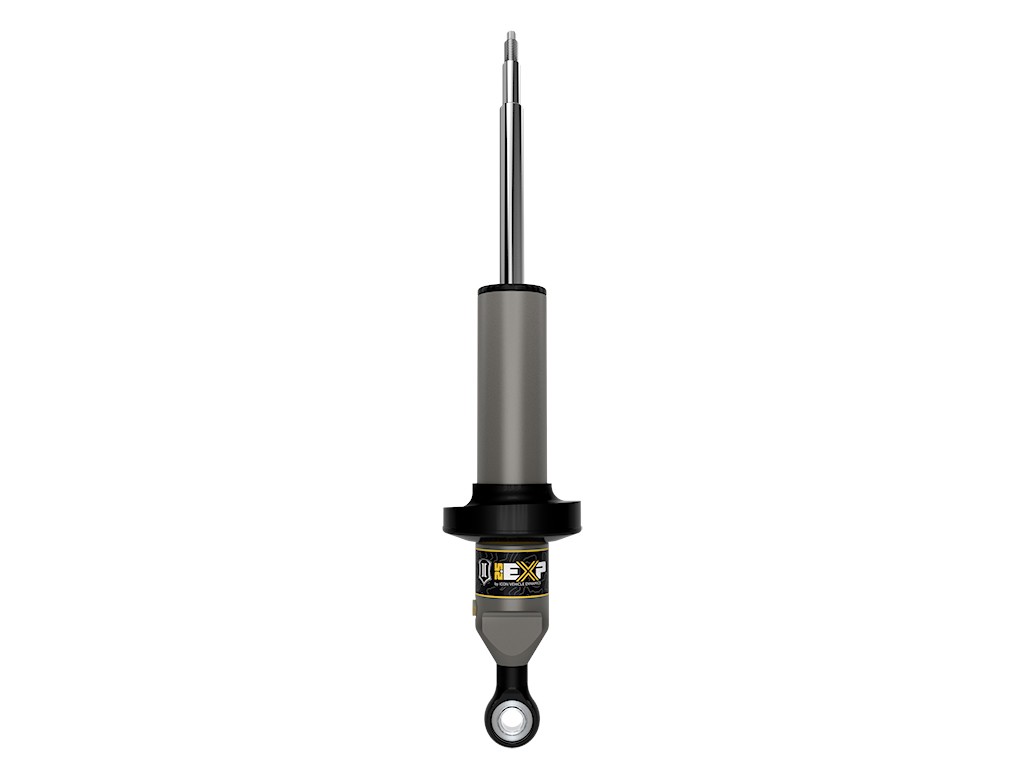

ICON 2022-2026 Toyota Tundra/2023-2026 Toyota Sequoia, Front, 2.5 EXP Series Coilover

Name: ICON 2022-2026 Toyota Tundra/2023-2026 Toyota Sequoia, Front, 2.5 EXP Series Coilover
Brand: ICON Vehicle Dynamics
SKU: 166652378
Price: 489.72 USD
Availability: InStock

Part Number 58671 (166652378)

Select vehicle for guaranteed fit

$489.72

In stockShips by 21st Oct

Description

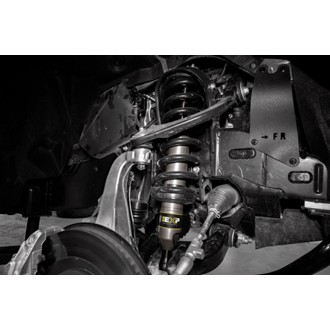

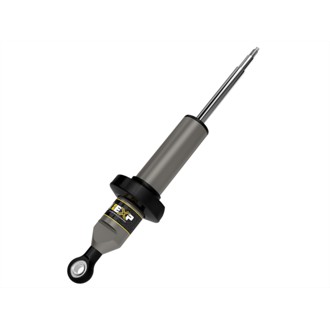

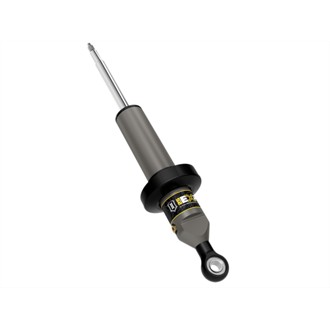

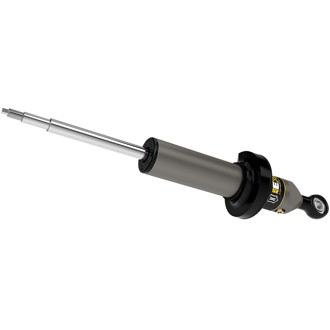

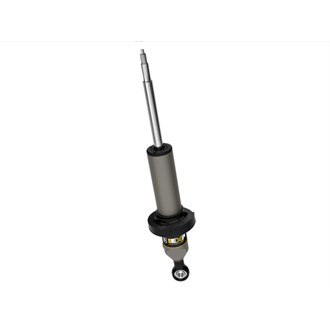

The 2022-2026 Toyota Tundra/2023-2026 Toyota Sequoia EXP Series front shock absorbers by ICON Vehicle Dynamics combine the performance of a fully rebuildable 2.5-inch diameter premium shock absorber with the convenience and cost-benefits of re-using the truck’s factory coil spring and other components. EXP bridges the gap between spacer lifts and threaded bodied coilovers, providing suspension lift, custom-tuned performance and maximum travel, all in an economical package. EXP Series is based on ICON’s proven 2.5-inch diameter Aluminum Series shock absorber, featuring a one-piece impact-extruded aluminum shock body. Hard anodizing provides a great-looking, consistent finish with superior resistance to abrasion and corrosion. The massive 7/8-inch diameter shaft is induction hardened and chrome plated. EXP shocks use the factory shaft-up orientation, with the shaft ends machined to re-use the Tundra’s OE upper shock and spring mounts. The 6061-billet aluminum coil spring seat is CNC machined to fit the molded heavy duty urethane coil spring seat that is specifically designed to fit the vehicle’s OE coil spring. A series of snap-ring grooves machined into the shock body provide easily-selectable front-end ride height adjustment from 0" to 3” of lift over stock. EXP Series shocks utilize a one-piece digressive piston design and are custom tuned for the Tundra/Sequoia in conjunction with their stock front coil springs to maximize damping performance and provide unsurpassed ride quality, on and off-road. The increased piston size and shock oil volume provided by the 2.5-inch diameter aluminum body also provide superior heat dissipation compared to the smaller, steel bodied OE shocks, resulting in longer-lasting shock performance over prolonged use at higher speeds and through rougher terrain. For those who would like to further tune their suspension, EXP shocks are fully re-valvable (and rebuildable) by any qualified shock technician, with parts available from ICON.

ICON Vehicle Dynamics specializes in performance suspension components, shocks, and accessories for today’s most popular trucks & SUVs. Since 2008, ICON has been developing products that redefine the limits of what a “stock” vehicle is capable of. ICON is part of a family of manufacturing companies that includes state of the art machining, laser cutting, and metal forming processes. This unique situation allows ICON to develop products that are at the forefront of technology quickly and efficiently, while maintaining a standard of quality unrivaled in the industry.

Fitment

This part fits the following vehicles.

2023-2026 Toyota Sequoia
2022-2026 Toyota Tundra

Features & benefits

Utilizes factory coil and coil hardware
Inverted shaft up design featuring 7/8” diameter, induction hardened, chrome plated shaft
Impact extruded, hard anodized aluminum cylinder offers excellent corrosion resistance and consistent finish
CNC machined 6061 aluminum components with a black anodized finish
PTFE lined spherical bearing for extended longevity and minimal deflection
Vehicle specific design for 2022-2026 Toyota Tundra and 2023-2026 Sequoia
Fully rebuildable and re-tunable
Vehicle specific tuned for superior shock damping and control
2.5 Aluminum Series Shock with Internal Reservoir
Adjustable ride heights from 0-3” of front lift over stock with the use of snap ring
OEM Wheels & Tires Fitment: Yes
Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5.75” Backspace / 25mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 6” Backspace / 25mm Offset
APPLICATION NOTE #144: Not compatible with TRD Pro
APPLICATION NOTE #153: Not compatible with Adaptive Variable Suspension (AVS) equipped vehicles
APPLICATION NOTE #171: If equipped with TRD aluminum skid plate part # 55164 is also required
APPLICATION NOTE #144: NOT COMPATIBLE WITH TRD PRO

Specifications

Active Or Passive Suspension	Passive
Adjustable Compression	No
Adjustable Damping	NO
Adjustable Height	Yes
Adjustable Rebound	No
Adjustable Ride Height	Yes
Assembled	No
Body Diameter	2.5
Coil Over Springs Included	No
Coil Spring Included	No
Coil Spring Insulator(s) Included	No
Compressed Length	15.42
Country Of Origin	USA
Cylinder Color	Gray
Cylinder Finish	Hard Anodized
Cylinder Material	Aluminum
Cylinder Outside Diameter	2.5
Damping Type	Oil
Dust Shield Included	No
Extended Length	21.21
Gas Charged	Yes
Grade Type	Performance
Includes Bump Stop	No
Internal Construction Type	Single Tube
Lower Mount Type	Eyelet
Material	Steel
Maximum Lift	3
Maximum Ride Height Raising Distance	3
Minimum Lift	0
OEM Wheels & Tires Fitment	Yes
Recommended Aftermarket Tires	35" x 12.50" (Minor fender trimming and modifications may be required)
Recommended Aftermarket Wheels	ICON Alloys - 18x9" w/ 6” Backspace / 25mm Offset
Remote Reservoir	NO
Reservoir Style	Internal
Self-Leveling	No
Service Parts	252010 - 2.5 IFP REBUILD KIT
Shaft Diameter	0.875
Shaft Material	Chrome
Shock Absorber Body End Measuring Point	Center of Eylet
Shock Absorber Rod End Measuring Point	Shoulder of Stem
Travel Length	5.80
Upper Mount Type	Stem
Valving Type	Digressive

Warranty

1 Year
