ICON Vehicle Dynamics

ICON Lexus GX460/GX470 Rear Coil Spring Conversion Kit

Part Number 56110 (166652219)

UPC: 840103408545

Package contents: 1 Each per Box

Select vehicle for guaranteed fit

$96.96

In stockShips by 29th Oct

Description

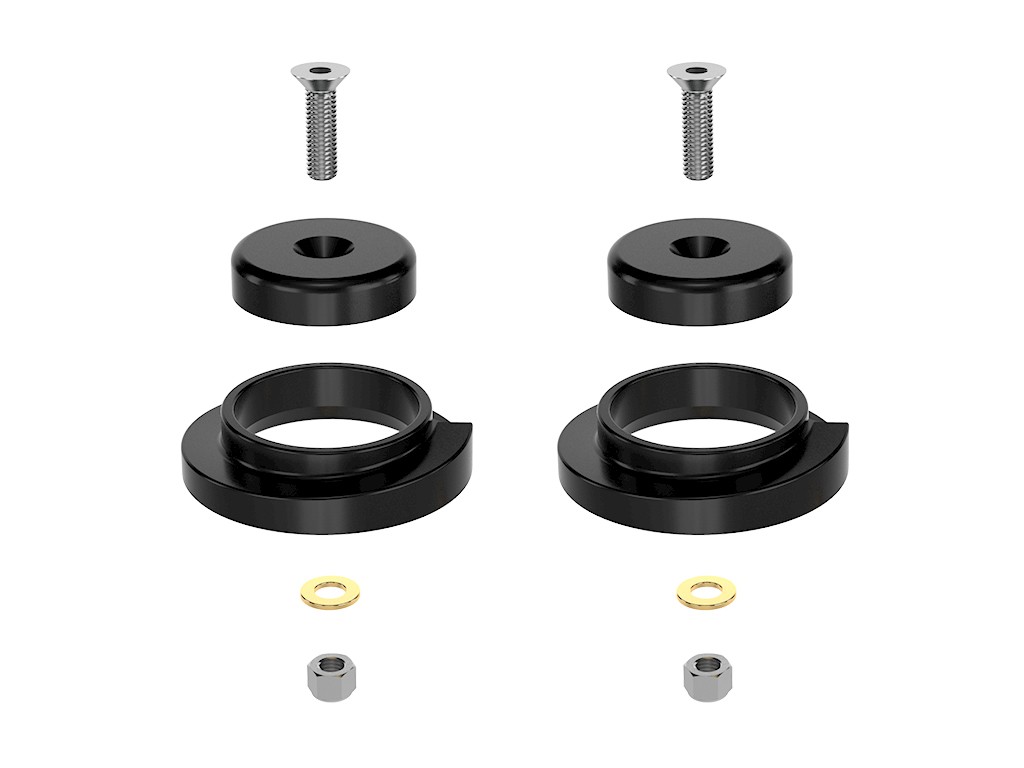

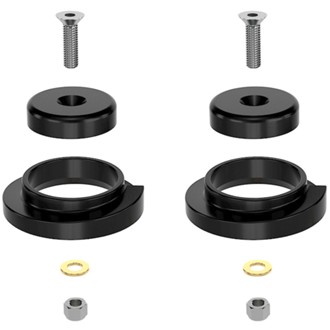

The ICON Vehicle Dynamics Lexus GX Rear Coil Spring Conversion Kit consists of billet aluminum bump stop spacers, polyurethane coil spring isolators, and all necessary hardware for installation. The height of the included bump stop spacers have been optimized for use with ICON rear shock absorbers to allow for maximum compression travel and full utilization of ICON shock absorbers’ “bump zones” for increased suspension performance. Polyurethane coil spring isolators ensure that the coil is properly retained with minimal deflection and quite operation.

ICON Vehicle Dynamics specializes in performance suspension components, shocks, and accessories for todays most popular trucks & SUVs. Since 2008, ICON has been developing products that redefine the limits of what a “stock vehicle is capable of. ICON is part of a family of manufacturing companies that includes state of the art machining, laser cutting, and metal forming processes. This unique situation allows ICON to develop products that are at the forefront of technology quickly and efficiently, while maintaining a standard of quality unrivaled in the industry.

Fitment

This part fits the following vehicles.

2010-2022 Lexus GX460
2003-2007 Lexus GX470

Features & benefits

Optimized for use with ICON shock absorbers for maximum compression travel and performance
Billet aluminum bump stop spacers, anodized for corrosion resistance
Polyurethane coil spring isolators ensureminimal deflection and quite operation
Polyurethane coil spring isolators
Alternative replacement - this air suspension delete kit replaces the original air suspension with a conventional suspension
Cost-saving solution - ideal for older vehicles on which maintaining the original air suspension isn't necessary or too costly
Complete kit - includes all necessary hardware and components needed for conversion
Thoroughly tested - parts underwent ride handling testing to ensure performance

Specifications

Active Or Passive Suspension	Passive
Adjustable Compression	No
Adjustable Rebound	No
Adjustable Ride Height	No
Bushing Color	Black
Bushing Material	Polyurethane
Country Of Origin	USA
End 1 Spring Type	Open
End 2 Spring Type	Square
Grade Type	Performance
Includes Bump Stop	No
Mounting Hardware Included	Yes
Self-Leveling	No
Spring Type	Coil
Strut Mount Insulator(s) Included	No
Strut Mount(s) Included	No
Suspension Grade Type	Performance

Videos and guides

Installation Instructions PDF
