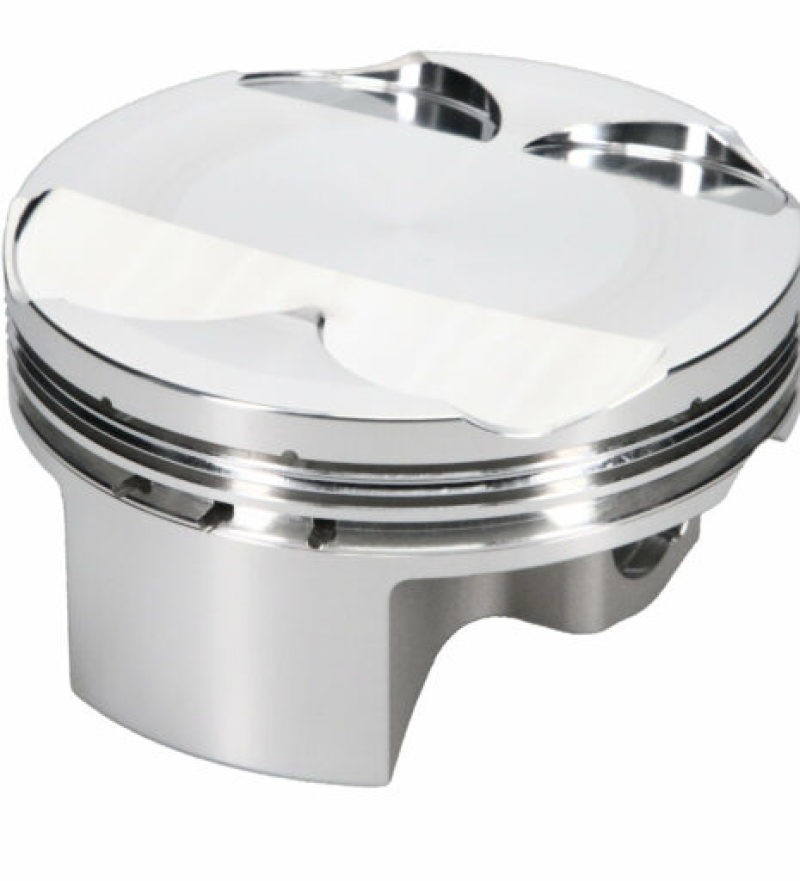

Piston Set, 2618, Inv Dome/Dish, 3.307 Bore, 0.944 CD, 0.708 Pin, Set of 4.

Part Number 274087 (132899269)
Package contents: 1 Each per Box
Select vehicle for guaranteed fit
MADE IN USA
$1,117.99 $1,175.99 SAVE 4% FREE SHIPPING

In stockShips by 17th Nov
FREE SHIPPING

Description

As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for sport bike and other motorcycle engines. Engineered, forged and machined 100 percent in the USA, JE Pistons are designed for each specific engine and riding application to provide the ultimate combination of durability and performance. From the road course to the drag strip everything in between, JE Pistons' performance is proven with every handful of throttle and wave of the checkered flag. Equip your bike with the best in forged pistons.

Fitment

This part fits the following vehicles.

Suzuki

  • 2008-2009, 2011-2020 GSX1300R Hayabusa
  • 2014 GSX1300R Hayabusa 50th Ann. Edition
  • 2012-2013 GSX1300R Hayabusa Limited Edition

Features & benefits

  • Includes high-quality wrist pins, locks, and JE Pro Seal premium piston rings
  • Made 100% in the USA
  • Accumulator Groove: A specialty groove between the top and second ring provides added volume for blow-by gases. This helps reduce pressure between the rings, improving top ring seal and minimizing ring flutter at high cylinder pressures.
  • Pin Fit: The pin bore is precision honed to attain an exact pin clearance. Clearances typically range from .0003 to .0010 between the wrist pin and pin bore.
  • Lateral Gas Ports: This process mills slots into the top of the top ring groove and provides a pathway for combustion pressure to get behind the top ring. Resulting in increased ring seal and is most common in circle track applications.
  • Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
  • Designed specifically for Suzuki GSX1300R Engines to provide optimized performance durability
  • Race-inspired two-ring design promotes quick revving and throttle response for noticeable power
  • Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applications
  • Designed specifically for each engine and use application to provide optimized performance durability

Specifications

2nd Groove Width 0.048 in
3D Undercrown Milling No
Accumulator Groove Yes
Anodize Top Ring Groove No
Barcode 00193564004710
Bore Diameter 84.00 mm
Combo 2 No
Compression Height 0.944
Compression Ratio 0.54513888888889
Compression Ratio Actual 13.50:1
Contact Reduction No
Country Of Origin USA
Cylinder Head BMW 4 VALVE
Dimensions 10.2" x 5.6" x 5.5"
Double Pin Oilers No
DVGP No
Econo Undercrown Milling No
EN Plating No
Engine Suzuki
Engine Displacement 1300
Engine Type ICE
Exhaust Angle 14
Exhaust Depth .130
Exhaust Diameter 1.240
Forging Type FSR
Gas Distribution No
Intake Angle 14
Intake Depth .185 in
Intake Diameter 1.440 in
Lateral Gas Ports Yes
Mill Undercrown No
Oil Groove Width 0.11100 in
Oil Ring Thickness 0.111 in
Pin Fit Yes
Piston Average Weight 234 gr
Piston Head Type Dish
Piston Material 2618
Piston Series JE Pistons
Piston To Wall Clearance -0.002499 in
Piston Volume -4.40 cc
Product Market Street
Product Type Engine Piston Kit
Ring Set - Recommended HG1001-3307
Ring Set Included Yes
Ring Set Part Number HG1001-3307
Second Compression Ring Thickness 0.0480 in
Skirt Coat No
Smooth Crown Finish No
Thermal Crown No
Top Compression Ring Thickness 0.0400 in
Top Groove Width 0.04000 in
Tuff Skirt No
Ultra Dome No
Ultra Groove No
Ultra Groove Plus Gas Port No
Vertical Gas Ports No
Weight 3.6 lbs
Wrist Pin Length 2.050 in
Wrist Pin Material 9310 Nickel Carbon Steel Alloy
Wrist Pin Outer Diameter 0.708 in
Wrist Pin Wall Thickness 0.140 in

Warranty

30 Months

About JE Pistons

JE pistons are all designed, forged, and machined in-house, allowing control over every step of the piston-making process. JE Pistons 7+ decades of experience in high-level racing has led to offering premium racing features, including full billet construction, EN plating, and purpose-designed coatings, to name a few.
