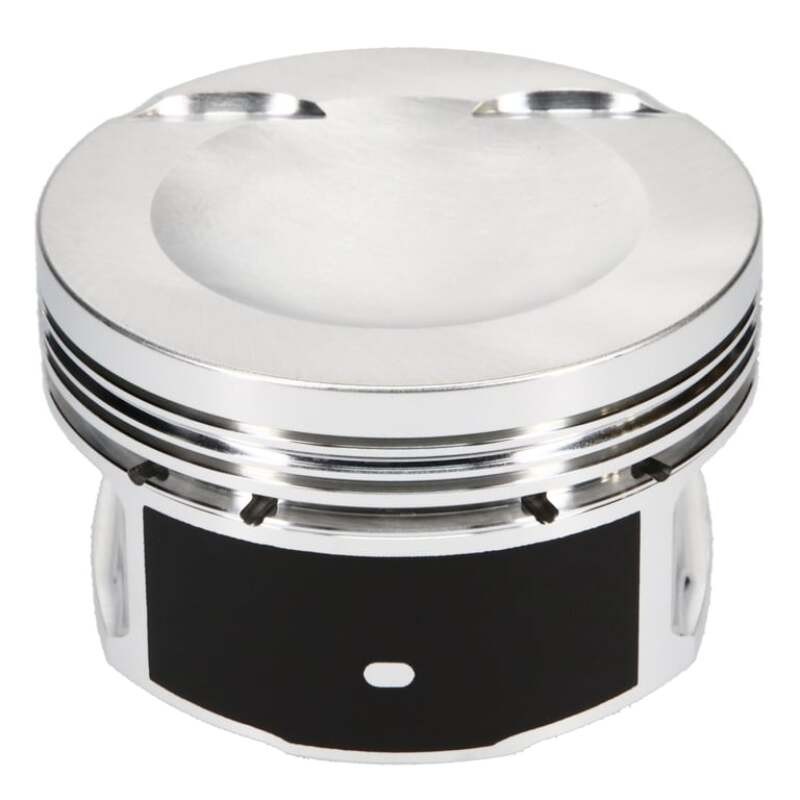

Audi TT RS 5 Cyl Piston Kit

Part Number 337968 (132621112)

UPC: 193564033987

Package contents: 1 Each per Box

$1,124.99 FREE SHIPPING

Out of stock

FREE SHIPPING

Description

Sport Compact, Import and European forged pistons from JE Pistons are the result of over 75 years of industry leading experience extended to our range of premium forged pistons for Audi DAZA and DNWA Engines. JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From drift track to drag strip, JE Pistons’ performance is proven in victory lane time and time again. Equipped with the following custom level features

JE pistons are all designed, forged, and machined in-house, allowing control over every step of the piston-making process. JE Pistons 7+ decades of experience in high-level racing has led to offering premium racing features, including full billet construction, EN plating, and purpose-designed coatings, to name a few.

Features & benefits

Accumulator Groove: A specialty groove between the top and second ring provides added volume for blow-by gases. This helps reduce pressure between the rings, improving top ring seal and minimizing ring flutter at high cylinder pressures.
Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
Pin Fit: The pin bore is precision honed to attain an exact pin clearance. Clearances typically range from .0003 to .0010 between the wrist pin and pin bore.
Smooth Crown Finish: Deburs all areas around the valve pocket and dome area, to reduces stress risers and prevent hot spots.
Designed specifically for Audi DAZA and DNWA Engines. To provide optimized performance durability
Forged in the USA using 2618 aluminum, yielding tensile strength and minimal thermal expansion
Includes high-quality wrist pins, locks, and JE Pro Seal premium piston rings
Made 100% in the USA

Specifications

2nd Groove Width	0.048 in
3D Undercrown Milling	No
Accumulator Groove	Yes
Anodize Top Ring Groove	No
Bore Diameter	83.50 mm
Combo 2	No
Compression Height	1.165 in
Compression Ratio	0.37847222222222
Connecting Rod Length	5.669 IN
Contact Reduction	No
Country Of Origin	USA
Cylinder Head	R5 TFSI 20V
Double Pin Oilers	No
DVGP	No
Econo Undercrown Milling	No
EN Plating	No
Engine	TT RS 5 Cyl
Engine Displacement	29 - 2.5 5CYL
Engine Stroke	3.654 in
Engine Type	ICE
Exhaust Angle	25
Exhaust Depth	.155
Exhaust Diameter	1.320
Forging Type	Round
Gas Distribution	No
Intake Angle	26
Intake Depth	.225 in
Intake Diameter	1.517 in
Lateral Gas Ports	No
Make	Audi
Mill Undercrown	No
Oil Groove Width	0.11100 in
Oil Ring Thickness	0.111 in
Pin Fit	Yes
Piston Head Type	Dish
Piston Material	2618
Piston Quantity	5
Piston Series	JE Pistons
Piston To Wall Clearance	-0.004 in
Piston Volume	-8.80 cc
Product Market	European
Product Type	Engine Piston Kit
Ring Set Included	Yes
Second Compression Ring Thickness	0.0480 in
Skirt Coat	No
Smooth Crown Finish	Yes
Thermal Crown	No
Top Compression Ring Thickness	0.0400 in
Top Groove Width	0.04000 in
Tuff Skirt	No
Ultra Dome	No
Ultra Groove	No
Ultra Groove Plus Gas Port	No
Vertical Gas Ports	No
Wrist Pin Length	2.250 in
Wrist Pin Material	5115 Low Carbon Steel, Case Hardened
Wrist Pin Outer Diameter	0.866 in
Wrist Pin Wall Thickness	0.150 in

Warranty

30 Months
