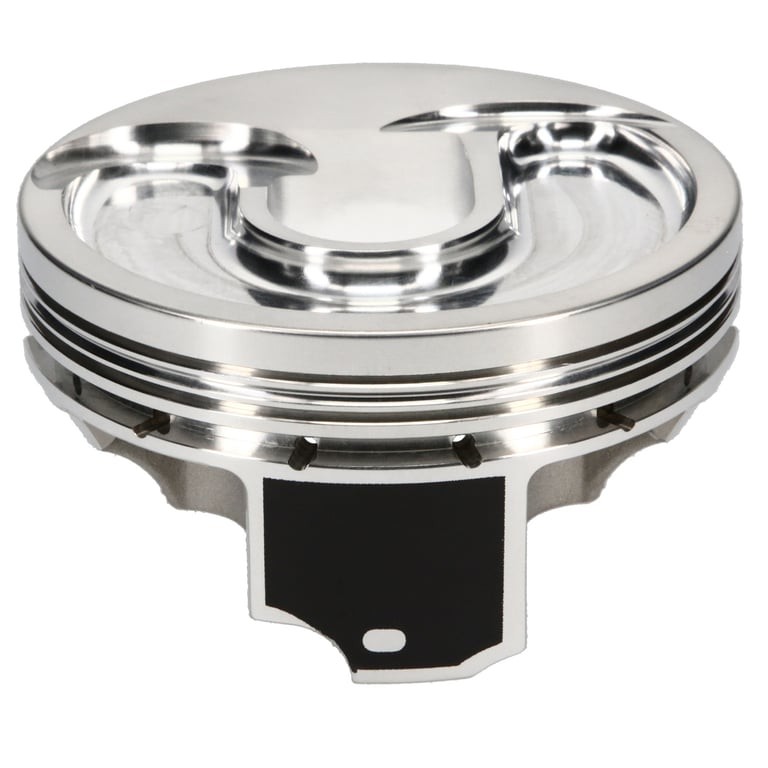

GM LT4 Series FSR Piston Kit

Part Number 353909 (132776182)

UPC: 193564037909

Package contents: 1 Each per Box

$997.99 FREE SHIPPING

Out of stock

FREE SHIPPING

Description

JE Auto forged pistons from JE Pistons are the result of over 75 years of industry leading experience extended to our range of premium forged pistons for Gen 5 LT1 and LT4 Engines. JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From drift track to drag strip, JE Pistons’ performance is proven in victory lane time and time again. Equipped with the following custom level features

JE pistons are all designed, forged, and machined in-house, allowing control over every step of the piston-making process. JE Pistons 7+ decades of experience in high-level racing has led to offering premium racing features, including full billet construction, EN plating, and purpose-designed coatings, to name a few.

Features & benefits

Accumulator Groove: A specialty groove between the top and second ring provides added volume for blow-by gases. This helps reduce pressure between the rings, improving top ring seal and minimizing ring flutter at high cylinder pressures.
Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
Pin Fit: The pin bore is precision honed to attain an exact pin clearance. Clearances typically range from .0003 to .0010 between the wrist pin and pin bore.
Skirt Coat: Skirt Coat reduces friction and wear on piston skirts and cylinder walls while simultaneously reducing operating noise
Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applications
Double Pin Oilers: Deliver twice the amount of oil to the wrist pin as compared to the standard single pin oiler.
Designed specifically for Gen 5 LT1 and LT4 Engines. To provide optimized performance durability
Includes high-quality wrist pins, and locks
Made 100% in the USA

Specifications

2nd Groove Width	0.06 in
3D Undercrown Milling	No
Accumulator Groove	Yes
Anodize Top Ring Groove	No
Bore Diameter	4.070 in
Combo 2	No
Compression Height	1.320 in
Compression Ratio	10.00:1 / 65.50 CC Head
Connecting Rod Length	6.098 in
Contact Reduction	No
Country Of Origin	USA
Cylinder Head	GEN 5 LT4
Deck Height	9.240 in
Double Pin Oilers	Yes
DVGP	No
Econo Undercrown Milling	No
EN Plating	No
Engine	LT4 (Gen V)
Engine Displacement	377 cid
Engine Family	LS
Engine Stroke	3.622 in
Engine Type	ICE
Exhaust Angle	11.5
Exhaust Depth	.160
Exhaust Diameter	2.200
Forging Type	FSR
Gas Distribution	No
Intake Angle	8.3
Intake Depth	.213 in
Intake Diameter	1.300 in
Lateral Gas Ports	No
Make	Chevrolet
Mill Undercrown	No
OEM Bore Diameter	4.065
Oil Groove Width	0.11900 in
Oil Ring Thickness	0.119 in
Oversized	Yes
Oversized Amount	0.005
Pin Fit	Yes
Piston Head Type	Dish
Piston Material	2618
Piston Quantity	8
Piston Series	JE Pistons
Piston Sub-Series	LT4 (Gen V)
Piston To Wall Clearance	-0.004 in
Piston Volume	-6.50 cc
Product Market	Domestic
Product Type	Engine Piston Kit
Ring Set - Recommended	JG31F8-4070-0
Ring Set Included	No
Ring Set Thickness	1.20 MM x 1.50 MM x 3.00 MM
Second Compression Ring Thickness	0.0600 in
Skirt Coat	Yes
Smooth Crown Finish	No
Thermal Crown	No
Top Compression Ring Thickness	0.0480 in
Top Groove Width	0.04800 in
Tuff Skirt	No
Ultra Dome	No
Ultra Groove	No
Ultra Groove Plus Gas Port	No
Vertical Gas Ports	No
Wrist Pin Included	Yes
Wrist Pin Length	2.250 in
Wrist Pin Outer Diameter	0.945 in
Wrist Pin Part Number	945-2250-18-52C
Wrist Pin Retainer Included	Yes
Wrist Pin Retainer Part Number	927-073-MW
Wrist Pin Wall Thickness	0.180 in

Warranty

30 Months
