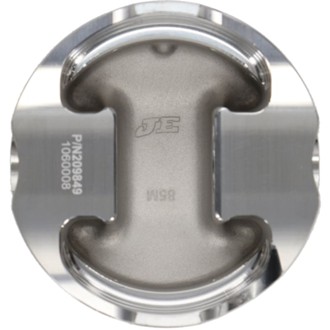

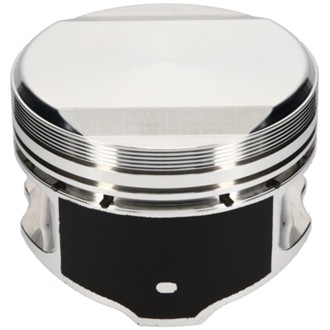

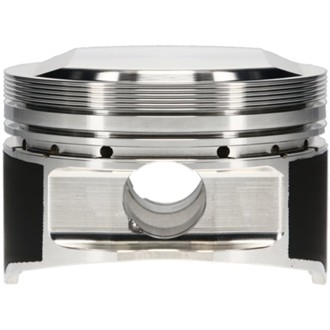

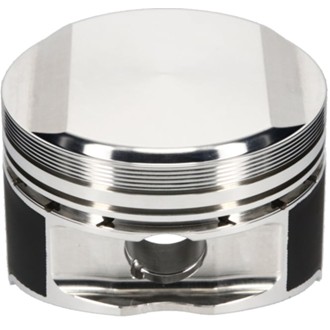

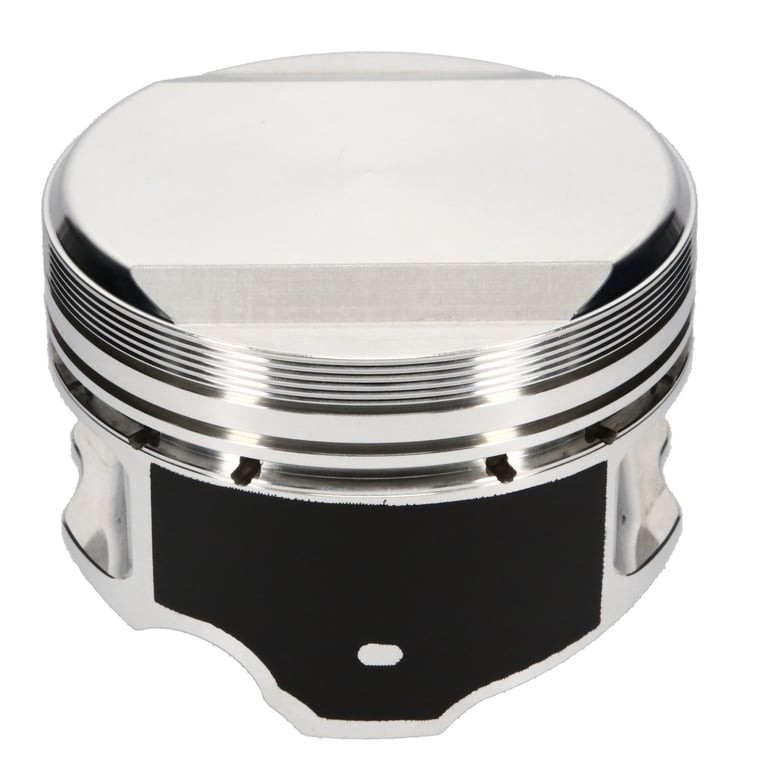

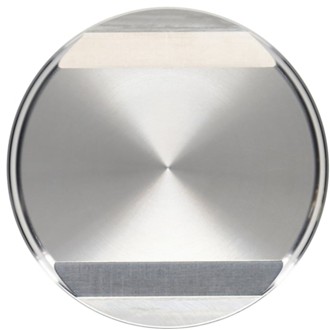

Nissan RB Series Piston Kit

Part Number 209849 (132583368)

UPC: 193564042569

Package contents: 1 Each per Box

$1,324.99 FREE SHIPPING

Out of stock

FREE SHIPPING

Description

Sport Compact, Import and European forged pistons from JE Pistons are the result of over 75 years of industry leading experience extended to our range of premium forged pistons for Nissan RB26DETT Engines. JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From drift track to drag strip, JE Pistons’ performance is proven in victory lane time and time again. Equipped with the following custom level features

JE pistons are all designed, forged, and machined in-house, allowing control over every step of the piston-making process. JE Pistons 7+ decades of experience in high-level racing has led to offering premium racing features, including full billet construction, EN plating, and purpose-designed coatings, to name a few.

Features & benefits

Contact Reduction: Reduce the amount of contact area against the cylinder wall when the piston "Rocks over". Contact reduction also serves to disrupt the flame travel into the crevice area causing a reduction in detonation.
Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
Pin Fit: The pin bore is precision honed to attain an exact pin clearance. Clearances typically range from .0003 to .0010 between the wrist pin and pin bore.
Skirt Coat: Skirt Coat reduces friction and wear on piston skirts and cylinder walls while simultaneously reducing operating noise
Double Pin Oilers: Deliver twice the amount of oil to the wrist pin as compared to the standard single pin oiler.
Forged in the USA using 2618 aluminum, yielding tensile strength and minimal thermal expansion
Designed specifically for Nissan RB26DETT Engines. To provide optimized performance durability
Includes high-quality wrist pins, locks, and JE Pro Seal premium piston rings
Made 100% in the USA

Specifications

2nd Groove Width	0.06 in
3D Undercrown Milling	No
Accumulator Groove	No
Anodize Top Ring Groove	No
Bore Diameter	86.50 mm
Combo 2	No
Compression Height	1.185 in
Compression Ratio	0.33681712962963
Connecting Rod Length	4.780 IN
Contact Reduction	Yes
Country Of Origin	USA
Cylinder Head	RB26DETT
Double Pin Oilers	Yes
DVGP	No
Econo Undercrown Milling	No
EN Plating	No
Engine	RB Series
Engine Stroke	3.386 in
Engine Type	ICE
Forging Type	Round
Gas Distribution	No
Lateral Gas Ports	No
Make	Nissan
Mill Undercrown	No
Oil Groove Width	0.11900 in
Oil Ring Thickness	0.119 in
Pin Fit	Yes
Piston Average Weight	355 gr
Piston Head Type	Dome
Piston Material	2618
Piston Quantity	6
Piston Series	JE Pistons
Piston To Wall Clearance	-0.004 in
Piston Volume	15.30 cc
Product Market	Sport Compact
Product Type	Engine Piston Kit
Ring Set - Recommended	JC2101-3406
Ring Set Included	Yes
Ring Set Part Number	JC2101-3406
Second Compression Ring Thickness	0.0600 in
Skirt Coat	Yes
Smooth Crown Finish	No
Thermal Crown	No
Top Compression Ring Thickness	0.0480 in
Top Groove Width	0.04800 in
Tuff Skirt	No
Ultra Dome	No
Ultra Groove	No
Ultra Groove Plus Gas Port	No
Vertical Gas Ports	No
Wrist Pin Length	2.250 in
Wrist Pin Material	5115 Low Carbon Steel, Case Hardened
Wrist Pin Outer Diameter	0.827 in
Wrist Pin Wall Thickness	0.150 in

Warranty

30 Months
