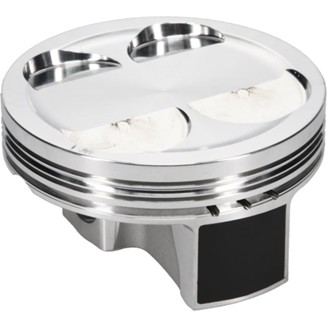

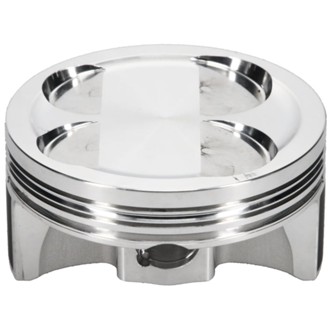

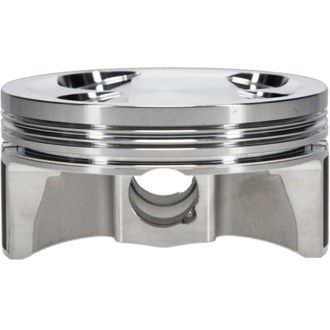

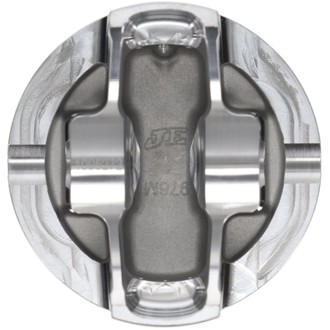

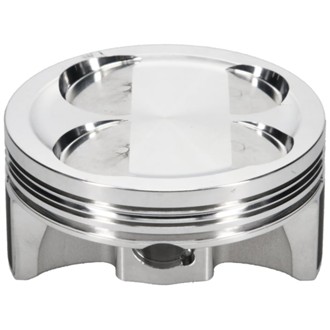

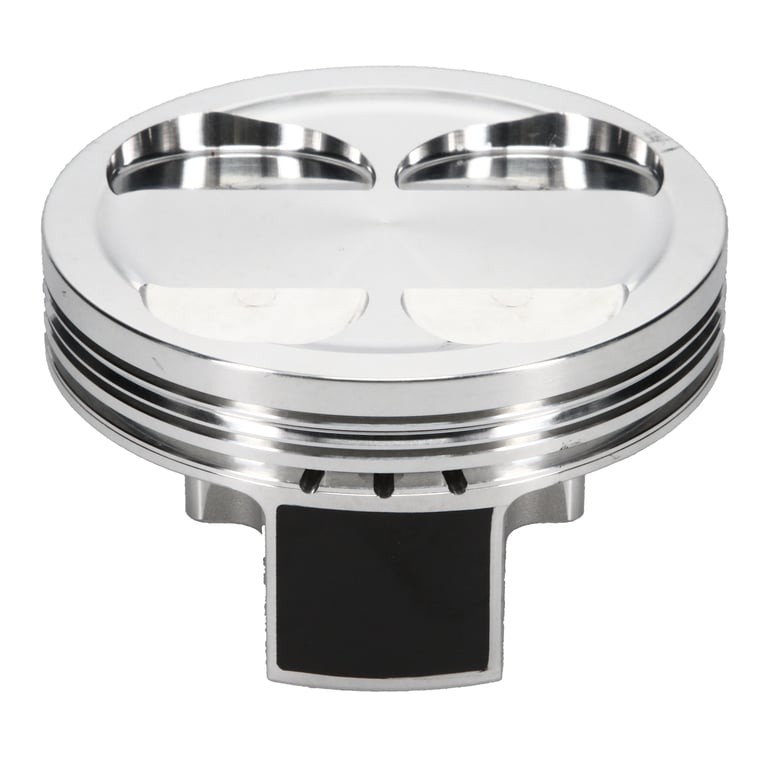

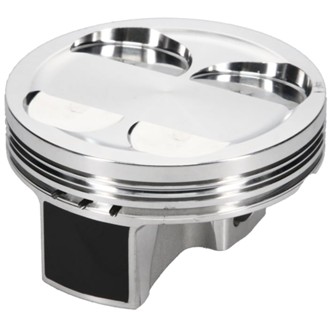

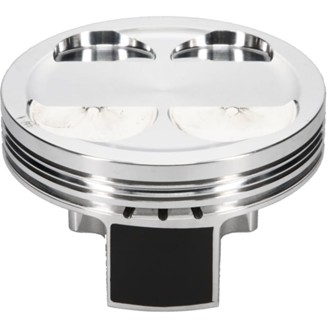

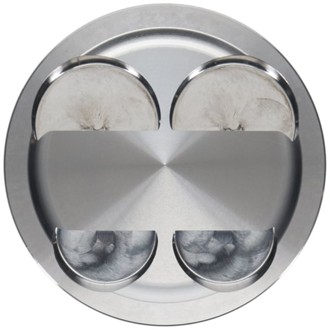

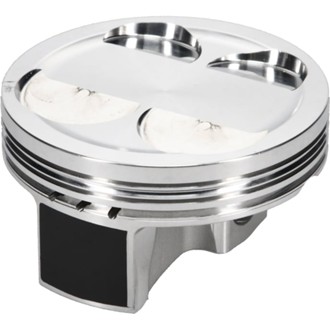

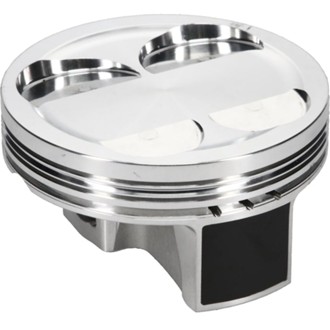

Street Series 2011-2013 Honda CBR 250R/2013-2016 CRF 250L Piston Kit

Part Number 308450 (132855764)

UPC: 193564026156

Package contents: 1 Each per Box

Select vehicle for guaranteed fit

$314.99 ~~$330.99~~ SAVE 4% FREE SHIPPING

Out of stock

FREE SHIPPING

Description

As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of pistons for Honda CBR 250R / CRF 250L Engines JE Pistons are engineered, forged and machined 100% in the USA. Equipped with the following custom level features

JE pistons are all designed, forged, and machined in-house, allowing control over every step of the piston-making process. JE Pistons 7+ decades of experience in high-level racing has led to offering premium racing features, including full billet construction, EN plating, and purpose-designed coatings, to name a few.

Features & benefits

Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applications
Race-inspired two-ring design promotes quick revving and throttle response for noticeable power
Designed specifically for Honda CBR 250R / CRF 250L Engines to provide optimized performance durability
Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
Includes high-quality wrist pins, locks, and JE Pro Seal premium piston rings
Made 100% in the USA
Accumulator Groove: A specialty groove between the top and second ring provides added volume for blow-by gases. This helps reduce pressure between the rings, improving top ring seal and minimizing ring flutter at high cylinder pressures.
Pin Fit: The pin bore is precision honed to attain an exact pin clearance. Clearances typically range from .0003 to .0010 between the wrist pin and pin bore.
Skirt Coat: Skirt Coat reduces friction and wear on piston skirts and cylinder walls while simultaneously reducing operating noise

Specifications

2nd Groove Width	0.04 in
3D Undercrown Milling	No
Accumulator Groove	Yes
Anodize Top Ring Groove	No
Bore Diameter	83.00 mm
Combo 2	No
Compression Height	0.925
Compression Ratio	0.45833333333333
Compression Ratio Actual	11.00:1
Contact Reduction	No
Country Of Origin	USA
Cylinder Head	CBR250R
Deck Height	-0.022
Double Pin Oilers	No
DVGP	No
Econo Undercrown Milling	No
EN Plating	No
Engine	Honda
Engine Displacement	250 cc
Engine Stroke	2.165 in
Engine Type	ICE
Exhaust Angle	19.5
Exhaust Depth	.114
Exhaust Diameter	.940
Forging Type	FSR
Gas Distribution	No
Intake Angle	16
Intake Depth	.092 in
Intake Diameter	1.040 in
Lateral Gas Ports	No
Mill Undercrown	No
Oil Groove Width	0.07950 in
Oil Ring Thickness	0.0795 in
Pin Fit	Yes
Piston Average Weight	222 gr
Piston Head Type	Dish
Piston Material	2618
Piston Series	JE Pistons
Piston To Wall Clearance	-0.0026 in
Piston Volume	-7.50 cc
Product Market	Off-Road
Product Type	Engine Piston Kit
Ring Set - Recommended	XG8300
Ring Set Included	Yes
Ring Set Part Number	XG8300
Second Compression Ring Thickness	0.0400 in
Skirt Coat	Yes
Smooth Crown Finish	No
Thermal Crown	No
Top Compression Ring Thickness	0.0400 in
Top Groove Width	0.04000 in
Tuff Skirt	No
Ultra Dome	No
Ultra Groove	No
Ultra Groove Plus Gas Port	No
Vertical Gas Ports	No
Wrist Pin Length	1.650 in
Wrist Pin Outer Diameter	0.669 in
Wrist Pin Wall Thickness	0.140 in

Warranty

30 Months
