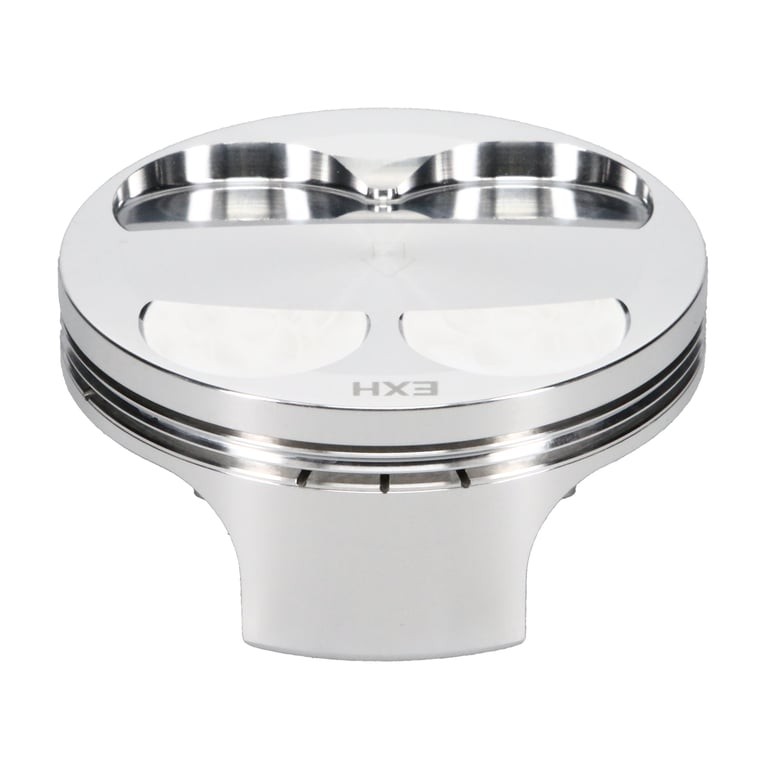

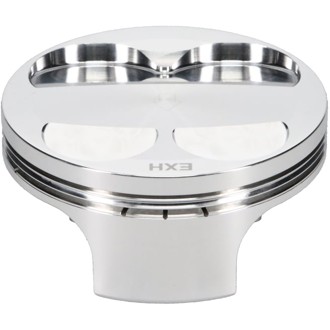

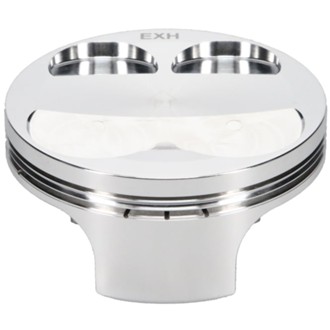

JE Piston Sets - Powersports

Part Number 261555 (132688731)
Package contents: 1 Each per Box
Select vehicle for guaranteed fit
Option
Choose option
MADE IN USA
$329.99 $346.99 SAVE 4% FREE SHIPPING

In stockShips by 17th Nov
FREE SHIPPING

Description

As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of Pro Series pistons for Yamaha YFZ450 / YFZ450R Engines JE Pistons are engineered, forged and machined 100% in the USA. Equipped with the following custom level features

Features & benefits

  • Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applications
  • Race-inspired two-ring design promotes quick revving and throttle response for noticeable power
  • Designed specifically for Yamaha YFZ450 / YFZ450R Engines to provide optimized performance durability
  • Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin

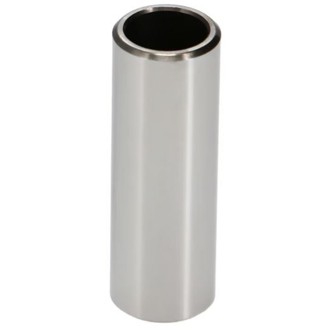

  • Includes high-quality wrist pins, locks, and JE Pro Seal premium piston rings
  • Made 100% in the USA
  • Accumulator Groove: A specialty groove between the top and second ring provides added volume for blow-by gases. This helps reduce pressure between the rings, improving top ring seal and minimizing ring flutter at high cylinder pressures.
  • Double Pin Oilers: Deliver twice the amount of oil to the wrist pin as compared to the standard single pin oiler.
  • Pin Fit: The pin bore is precision honed to attain an exact pin clearance. Clearances typically range from .0003 to .0010 between the wrist pin and pin bore.

Specifications

3D Undercrown Milling No
Accumulator Groove Yes
Anodize Top Ring Groove No
Barcode 00193564004888
Bore Diameter 95.00 mm
Combo 2 No
Compression Height 0.988
Compression Ratio 0.54513888888889
Compression Ratio Actual 13.50:1
Contact Reduction No
Country Of Origin USA
Cylinder Head YFZ 450
Dimensions 10" x 5" x 5"
Double Pin Oilers Yes
DVGP No
Econo Undercrown Milling No
EN Plating No
Engine YAMAHA
Engine Displacement 450
Engine Stroke 2.496 in
Engine Type ICE
Exhaust Angle 30
Exhaust Depth .135
Exhaust Diameter 1.800
Forging Type FSR
Gas Distribution No
Intake Angle 25
Intake Depth .180 in
Intake Diameter 2.050 in
Lateral Gas Ports No
Mill Undercrown No
Oil Groove Width 0.07950 in
Oil Ring Thickness 0.0795 in
Pin Fit Yes
Piston Average Weight 257 gr
Piston Head Type Dome
Piston Material 2618
Piston Series Pro Series
Piston To Wall Clearance -0.002 in
Piston Volume -4.80 cc
Product Market ATV
Product Type Engine Piston Kit
Ring Set - Recommended ZS9500
Ring Set Included Yes
Ring Set Part Number ZS9500
Skirt Coat No
Smooth Crown Finish No
Thermal Crown No
Top Compression Ring Thickness 0.0480 in
Top Groove Width 0.04800 in
Tuff Skirt No
Ultra Dome No
Ultra Groove No
Ultra Groove Plus Gas Port No
Vertical Gas Ports No
Weight 4.6 lbs
Wrist Pin Length 2.050 in
Wrist Pin Material 9310 Nickel Carbon Steel Alloy
Wrist Pin Outer Diameter 0.787 in
Wrist Pin Wall Thickness 0.160 in

Warranty

30 Months

About JE Pistons

JE pistons are all designed, forged, and machined in-house, allowing control over every step of the piston-making process. JE Pistons 7+ decades of experience in high-level racing has led to offering premium racing features, including full billet construction, EN plating, and purpose-designed coatings, to name a few.
