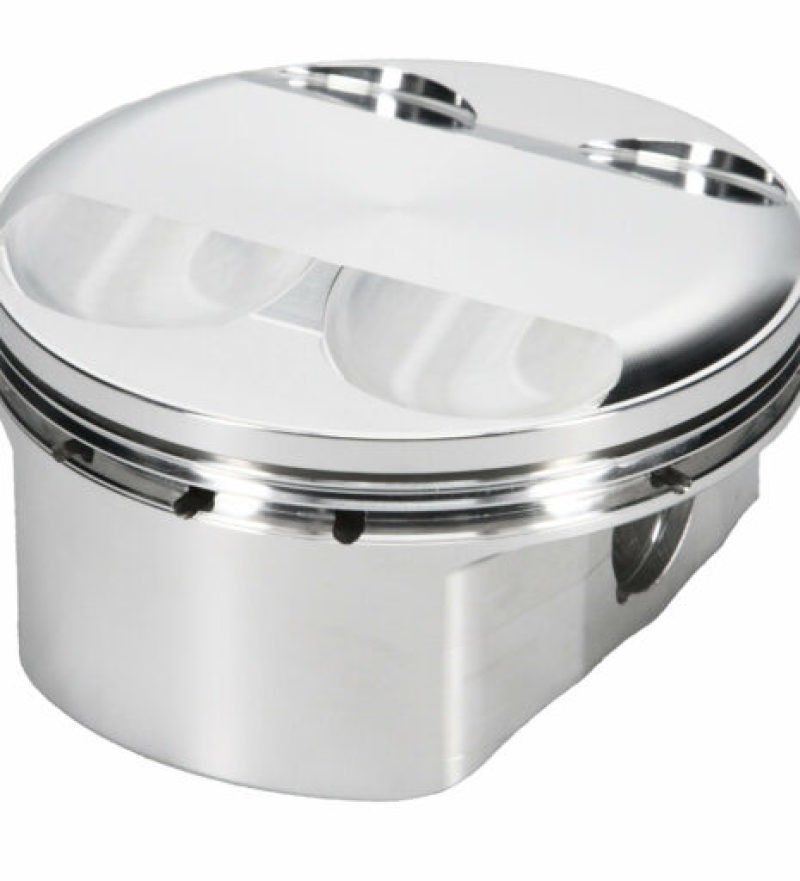

Piston Set, 2618, Dome, 3.505 Bore, 0.925 CD, 0.787 Pin, Set of 1.

Part Number 274221 (132897743)

UPC: 193564028464

Package contents: 1 Each per Box

Select vehicle for guaranteed fit

$329.99 ~~$346.99~~ SAVE 4% FREE SHIPPING

Out of stock

FREE SHIPPING

Description

As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its range of Pro Series pistons. Pro Series® Piston kits feature purpose-built forging designs that reduce overall piston weight without sacrificing strength or durability. Internal and external strut braces significantly reduce stress on critical areas while ultra-flat ring grooves improve ring seal for better, sustained performance.

Fitment

This part fits the following vehicles.

KTM

2003-2005 450 EXC
2003-2005 450 MXC
2006-2007 450 XC-W

Features & benefits

Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applications
Race-inspired two-ring design promotes quick revving and throttle response for noticeable power
Designed specifically for KTM 450 EXC/MXC/XC-W / 450 XC Engines to provide optimized performance durability
Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
Includes high-quality wrist pins, locks, and JE Pro Seal premium piston rings
Made 100% in the USA
Accumulator Groove: A specialty groove between the top and second ring provides added volume for blow-by gases. This helps reduce pressure between the rings, improving top ring seal and minimizing ring flutter at high cylinder pressures.
Double Pin Oilers: Deliver twice the amount of oil to the wrist pin as compared to the standard single pin oiler.
Pin Fit: The pin bore is precision honed to attain an exact pin clearance. Clearances typically range from .0003 to .0010 between the wrist pin and pin bore.
Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss
Engineered, forged and machined 100 percent in the USA
Je Pro Seal Rings Included
Low Friction Skirt
Hand Deburred

Specifications

3D Undercrown Milling	No
Accumulator Groove	Yes
Anodize Top Ring Groove	No
Bore Diameter	89.00 mm
Combo 2	No
Compression Height	0.925
Compression Ratio	0.50347222222222
Compression Ratio Actual	12.50:1
Contact Reduction	No
Country Of Origin	USA
Cylinder Head	450XC
Double Pin Oilers	Yes
DVGP	No
Econo Undercrown Milling	No
EN Plating	No
Engine	KTM
Engine Displacement	450
Engine Stroke	2.834 in
Engine Type	ICE
Exhaust Angle	13
Exhaust Depth	.116
Exhaust Diameter	1.300
Forging Type	Round
Gas Distribution	No
Intake Angle	13
Intake Depth	.154 in
Intake Diameter	1.570 in
Lateral Gas Ports	No
Mill Undercrown	No
Oil Groove Width	0.11100 in
Oil Ring Thickness	0.111 in
Pin Fit	Yes
Piston Average Weight	261 gr
Piston Head Type	Dome
Piston Material	2618
Piston Series	JE Pistons
Piston To Wall Clearance	-0.002 in
Piston Volume	38.70 cc
Product Market	Off-Road
Product Type	Engine Piston Kit
Ring Set - Recommended	JG4301-3504
Ring Set Included	Yes
Ring Set Part Number	JG4301-3504
Skirt Coat	No
Smooth Crown Finish	No
Thermal Crown	No
Top Compression Ring Thickness	0.0397 in
Top Groove Width	0.03970 in
Tuff Skirt	No
Ultra Dome	No
Ultra Groove	No
Ultra Groove Plus Gas Port	No
Vertical Gas Ports	No
Wrist Pin Length	2.250 in
Wrist Pin Material	9310 Nickel Carbon Steel Alloy
Wrist Pin Outer Diameter	0.787 in
Wrist Pin Wall Thickness	0.140 in

Warranty

30 Months

About JE Pistons

JE pistons are all designed, forged, and machined in-house, allowing control over every step of the piston-making process. JE Pistons 7+ decades of experience in high-level racing has led to offering premium racing features, including full billet construction, EN plating, and purpose-designed coatings, to name a few.
