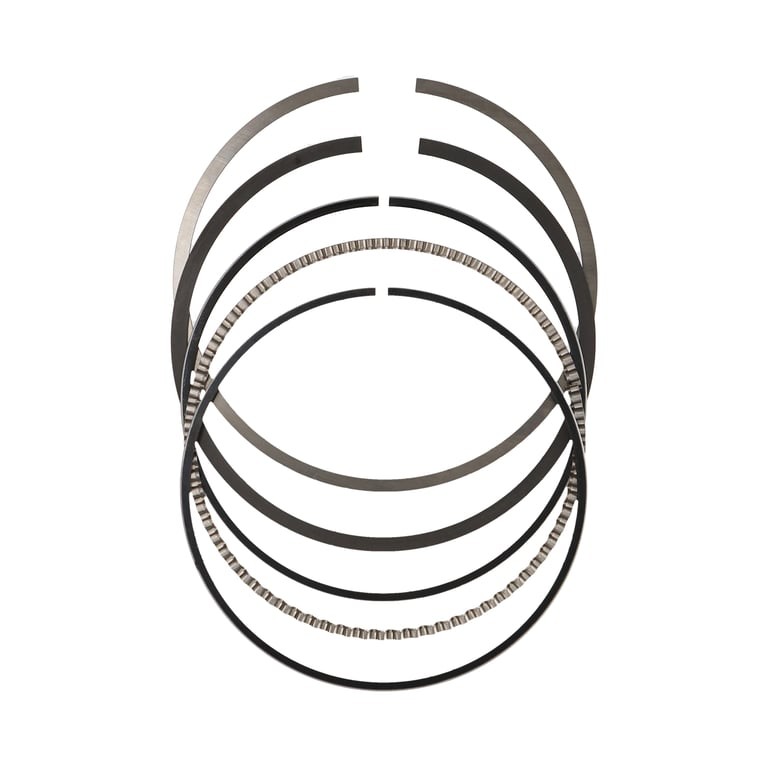

Ring Sets .043 AH Top Ring / 1/16 2nd Ring / 3/16 Oil Ring / 4.610in Bore
Description
JE Piston Rings are designed to maximize horsepower through precision sealing of combustion pressure. They are offered in a huge selection of sizes, various materials, and in multiple thicknesses to suit a wide variety of engines. JE Pistons also offers an array of custom piston ring services including back cutting, dyke cutting, lapping, grinding, and PVD coating. These services, the same used by top NHRA Pro Stock and NASCAR teams, are now available to the public and offer tremendous gains in durability, power through reduced friction, and improved ring seal.
JE pistons are all designed, forged, and machined in-house, allowing control over every step of the piston-making process. JE Pistons 7+ decades of experience in high-level racing has led to offering premium racing features, including full billet construction, EN plating, and purpose-designed coatings, to name a few.
Features & benefits
- Highest quality ductile iron top ring with plasma-moly inlay
- combined with standard or low tension oil rings
- Taper faced reverse torsional second rings
Specifications
| Bore Diameter | 4.610 |
|---|---|
| Country Of Origin | USA |
| Engine Type | ICE |
| File Fit | Yes |
| Industry | Automotive |
| Oil Ring Axial Height | 3/16 |
| Oil Ring Radial Width | 0.190 |
| Oil Ring Thickness | 0.188 |
| Product Type | Engine Piston Ring Set |
| Ring Set Thickness | 0.0430 in. Top x 0.0640 in. 2nd x 0.188 in. Oil |
| Ring Type | 3 Ring |
| Second Compression Ring Thickness | 0.0640 |
| Second Ring Axial Height | 1/16 |
| Second Ring Facing Material | Phosphate |
| Second Ring Material | Iron |
| Second Ring Radial Width | 0.195 |
| Second Ring Shape | Napier, Back Cut, Neutral |
| Third Ring Facing Material | Carbon Steel |
| Third Ring Material | Carbon Steel |
| Third Ring Shape | SS50U Style |
| Top Compression Ring Thickness | 0.0430 |
| Top Ring Axial Height | 0.043 |
| Top Ring Facing Material | Nitride |
| Top Ring Material | Carbon Steel |
| Top Ring Radial Width | 0.171 |
| Top Ring Shape | Barrel Face, Back Cut, Torsional |
Warranty
30 Months
Magnuson-Moss Warranty Act
Legally, a vehicle manufacturer cannot void the warranty on a vehicle due to an aftermarket part unless they can prove that the aftermarket part caused or contributed to the failure in the vehicle (per the Magnuson Moss Warranty Act (15 U.S.C. 2302(C)).
California residents
WARNING: This product can expose you to chemicals including nickel, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov.
Carb Status
California carb status to be completed
