Dsp Lite Radio Wiring Harness Interface

Description

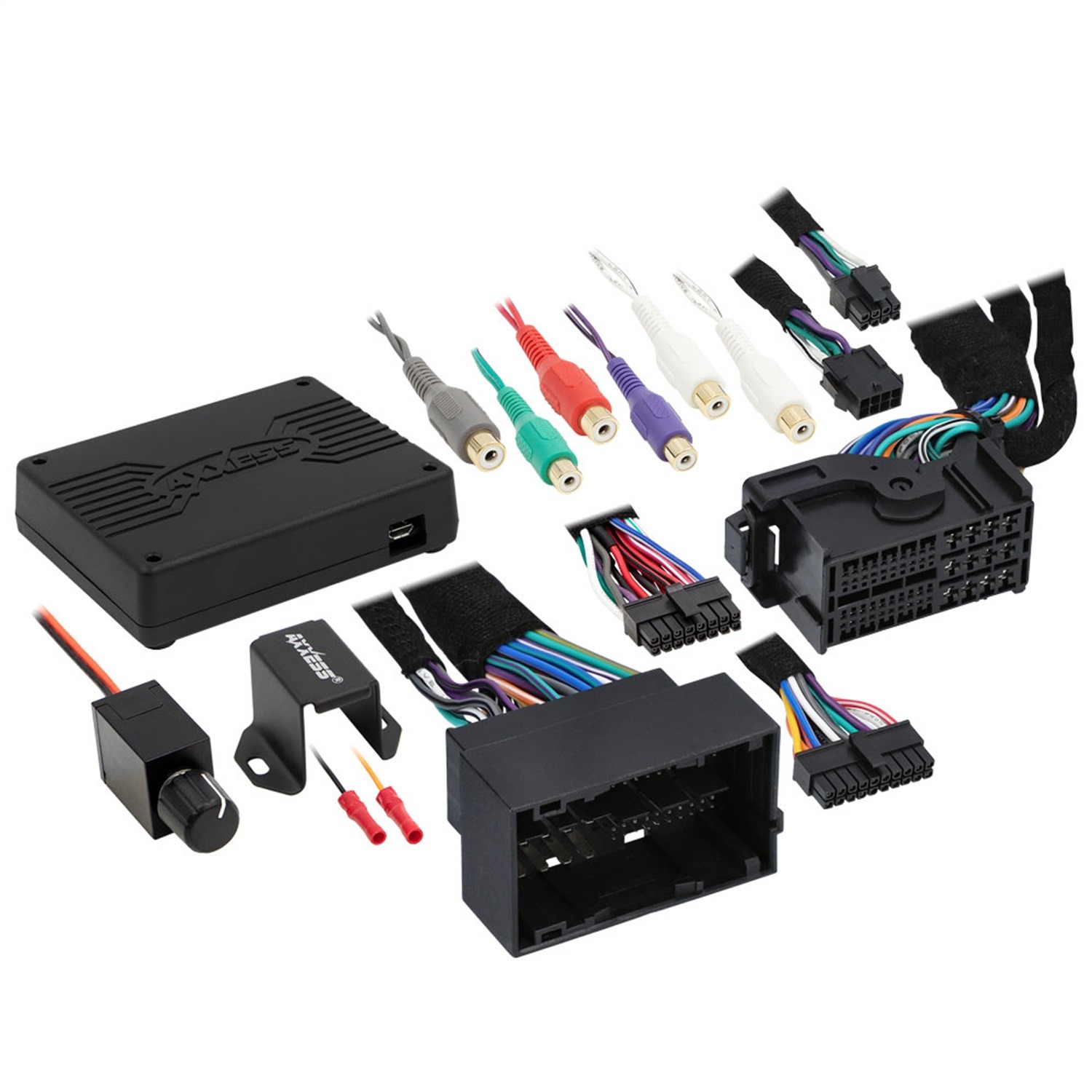

Axxess AXDSPL-CH5 DSP lite radio wire harness interface Chrysler 2014-Up. Upgrade the sound system with this cost-effective, easy-to-install DSP 'Lite' package that includes a vehicle-specific T-harness. It works with OEM or aftermarket radios to take fixed level/digitally controlled analog audio and convert it to 6 channels of analog signal for use with an aftermarket amplifier or DSP. Retain Features with a Built-in Interface while this may be a 'Lite' version, it still provides retention of many important vehicle functions utilizing Axxess's cutting-edge technology. It features chime control, retains OEM voice prompts and sonar sensors, and has clipping detection and limiting circuits, going beyond what a traditional DSP can do. Complete Tuning Control There are 4 inputs and 6 outputs, including front, rear and subwoofer, and the front and rear outputs can be delayed independently up to 10ms. Full tuning control settings are adjusted via a smart device application for tablets or mobile phones and can be password-protected once set up. Once tuning has been completed, installers can password-protect their settings to prevent anyone else from adjusting, and the information is stored for future recall.

We at Metra always strive to listen to our customers. You have told us to do a better job at telling the Metra story. For over 60 years, Metra has maintained its cutting edge by paying attention to our marketplace and innovating products to fit the needs of the installer. We are the "Installer's Choice" because we are installers. We design our products to be easy to use and easy on the eyes. If you can see a Metra product, then we haven't done our job. Metra Turbokits are designed to be heard but not seen. This means that our fit and finish is the best in the business. Why trust your installation to a shoddy and time consuming kit? Our GSXL Turbowires are designed with the same philosophy in mind. Their longer length for ease of installation and thicker OEM cables with OEM connectors make for a mighty install, with no down time on returns or angry customers.

Features & benefits

• Package Includes The Axdsp-L And Vehicle-Specific T-Harness
• 15-Band Graphic Eq Or 5-Band Parametric Eq
• Selectable High Pass / Low Pass Or Bandpass Filters On Each Channel
• 4 Inputs And 6 Individually Assignable Outputs
• Independent Equalization On Each Of The 6 Outputs
• Selectable Slope - 12 / 24 / 36 Or 48Db Per Octave
• Each Channel Can Be Delayed Independently For Up To 10 Ms
• Easy Behind The Radio Installation In Most Applications
