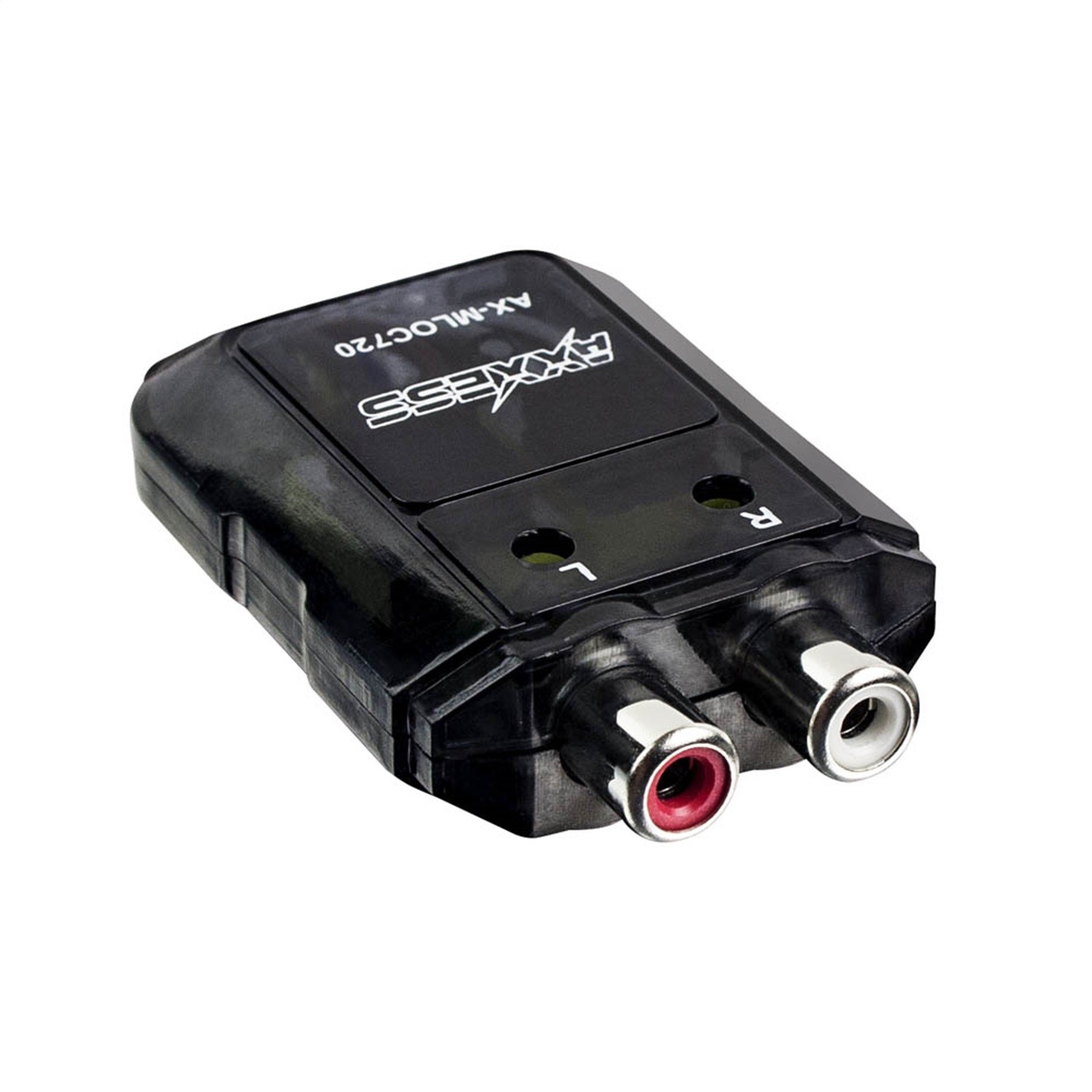

Mini Line Output Converter

Description

The LOC is designed to convert (2) channels of speaker level audio into (2) channels of line level audio that can be used by OEM amplifiers. It can also be used with OEM radios to add aftermarket amplifiers. This device will also detect the presence of an audio signal and then generate a +12V output that can be used to turn-on an aftermarket amplifier. Features and specifications The LOC is able to handle 40 watts per channel continuous input without overheating. The input circuitry is designed to correct the crossover distortion commonly found on standard LOCs, while providing a high to low level step down of 6:1. Output audio level is adjustable using the onboard, high quality potentiometers. The remote output or amplifier trigger is rated at 500mA (+12V) and will easily handle an outboard relay if additional current is needed. The remote output will trigger instantaneously when the LOC detects a DC voltage on the white, left + audio input wire above 5V or a very low audio signal. It will shut off 60 seconds after no signal is detected. Installation The LOC should be installed on a stereo's speaker output wires, or the output wires on an OEM amplifier of up to 40 watts per channel. These wires can be found behind the stereo in the dash, on the output of an OEM amplifier, or on the input terminals on the OEM speakers. Please refer to the wiring diagram for the input connection details.

We at Metra always strive to listen to our customers. You have told us to do a better job at telling the Metra story. For over 60 years, Metra has maintained its cutting edge by paying attention to our marketplace and innovating products to fit the needs of the installer. We are the "Installer's Choice" because we are installers. We design our products to be easy to use and easy on the eyes. If you can see a Metra product, then we haven't done our job. Metra Turbokits are designed to be heard but not seen. This means that our fit and finish is the best in the business. Why trust your installation to a shoddy and time consuming kit? Our GSXL Turbowires are designed with the same philosophy in mind. Their longer length for ease of installation and thicker OEM cables with OEM connectors make for a mighty install, with no down time on returns or angry customers.

Features & benefits

• Worlds Smallest L.O.C.
• 2-Channel Input
• Adjustable Gain For Each Channel
• 150-Watt Max Per Channel
• 12-Volt Signal Sense Turn-On
