NGK Authorized Dealer

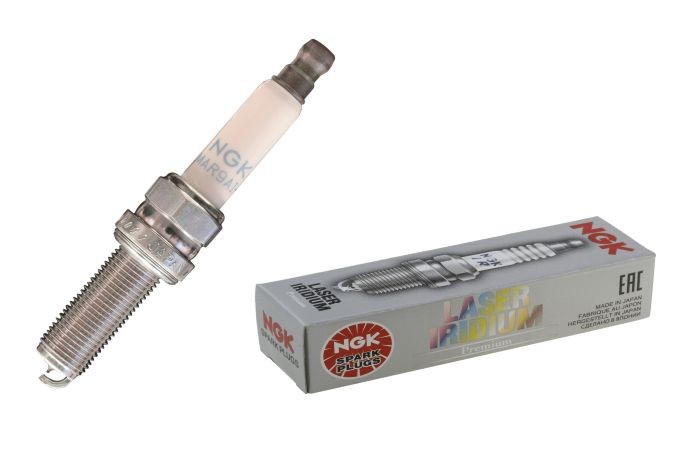

Laser Iridium Spark Plug

Part Number 90526 (132751130)
$10.87
In stockShips by 14th Oct

Description

Laser Iridium spark plugs provide superior ignitability and long service life. Smallest tip diameter available Iridium / Platinum surfaces ensure slow wear rate providing stable idle, superior anti fouling, improved fuel efficiency and lower emissions. Laser welded Iridium center electrode tip ensures high durability and greater spark. Platinum disc welded to backside of ground electrode provides long life. Longer insulator nose prevents fouling, Corrugated ribs on insulator prevents flashover, and the triple gasket seal eliminates combustion gas leakage. Faster starts and quicker acceleration. Better fuel economy and lower emissions, Trivalent Metal Plating for superior anti-corrosion and anti-seizing.

Features & benefits

  • Pure alumina silicate ceramic insulator provides superior strength and better heat transfer
  • Trivalent metal plating for superior anti-corrosion and anti-seizing properties
  • RECOMMENDED USAGE: Best for vehicles with OE fine wire iridium alloy plugs
  • Copper core aids in heat removal
  • Triple seals prevent leakage
  • ACTUAL OE or EQUIVALENT DESIGN: OEM quality construction fine wire iridium alloy center electrode provides consistent performance
  • TRIVALENT METAL PLATING: Delivers superior anti-corrosion and anti-seizing properties, ensuring ease of installation and removal
  • IRIDIUM ALLOY CENTER ELECTRODE: Iridium's density (6x that of platinum) and extremely high melting point is perfect for modern high efficiency engines
  • SOLID COPPER CORE: 98% pure copper core offers superior heat dissipation, conductivity and ultra wide heat ranges
  • PLATINUM TIP GROUND ELECTRODE: Unless OE specified, platinum protection at the ground electrode provides excellent ignitability and service life

Specifications

Center Electrode Core Material Copper
Center Electrode Design Fine Wire
Center Electrode Insulator Tip Projection 2.0
Center Electrode Projection Mid Projection
Center Electrode Tip Material Iridium
Electrical Terminal Type Non-Removable Nut
Grade Type Performance
Ground Configuration J-Gap
Ground Electrode Core Material Copper
Ground Electrode Quantity 1
Ground Electrode Tip Design Taper Cut
Ground Electrode Tip Material Nickel
Hex Size 14mm
Insulator Height 51.0
Insulator Material Ceramic
Manufacturer Heat Range 9
Metallurgy Single Iridium
Part Number LMAR9AI-8D
Pre-Gap Size 0.8
Reach 26.5
Resistance 5000.0
Resistor Type Yes
Seat Type Flat
Service Number LMAR9AI-8D
Short Style Spark Plug No
Skirt No
Skirt Length 0.0
Stock Number 90526
Street Legal Yes
Thread Size M10 - 1.0
Thread Type Standard Metric
Washer Type Crush
Washer(s) Included Yes

Warranty

2 Months

Magnuson-Moss Warranty Act

Legally, a vehicle manufacturer cannot void the warranty on a vehicle due to an aftermarket part unless they can prove that the aftermarket part caused or contributed to the failure in the vehicle (per the Magnuson Moss Warranty Act (15 U.S.C. 2302(C)).

California residents

WARNING: This product can expose you to chemicals including nickel, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov.
