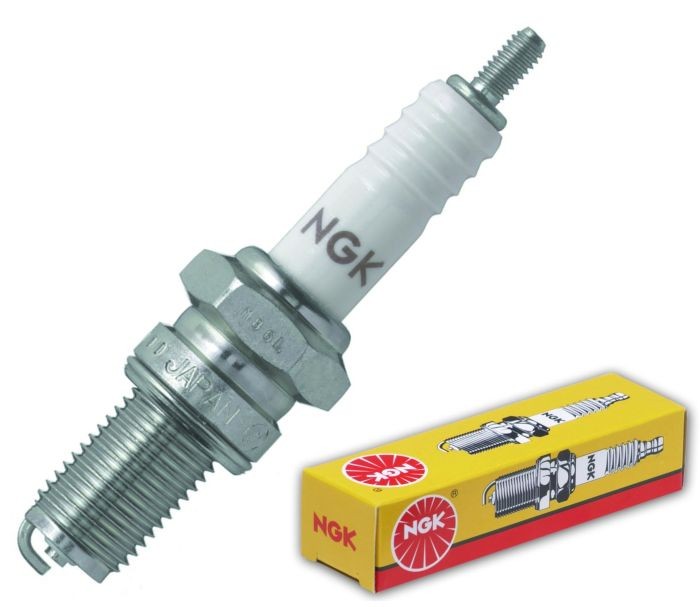

OE Series Standard Nickel Spark Plug: Conventional Tip, DR8ES-L

Part Number 2923 (132648230)

UPC: 87295029237

Package contents: 1 Each

Select vehicle for guaranteed fit

$3.29

In stockShips by 3rd Nov

Description

NGK Standard spark plugs (in the iconic NGK 'yellow box' packaging) are a proven OE cornerstone and technology customers have relied on for decades. Engineered specifically for OE applications, NGK Standard spark plugs provide OE quality nickel alloy reliable performance and design. NGK's legendary high grade alumina silicate ceramic creates a stronger insulator for optimal dielectric performance, while triple gasket sealing prevents combustion gas leakage. Solid 98% pure copper core offers superior heat dissipation, conductivity and ultra wide heat ranges. Trivalent metal plating ensures superior anti-corrosion and anti-seizing properties.

Fitment

This part fits the following vehicles.

Ducati

1987 750 Paso

Honda

1984-1987 ATC125M
1982-1983 ATC185S
1982-1983 ATC200
1982-1983 ATC200E
1984 ATC200ES
1984-1985 ATC200M
1984-1986 ATC200S
1983-1987 ATC200X
1985-1987 ATC250ES Big Red
1985-1987 ATC250SX
1985-1986 ATC350X
1982-1985 CB125S
1982 CB450SC Nighthawk
1982 CB450T Hawk
1982 CB650SC Nighthawk
1982 CB750C Custom
1982 CB750F Super Sport
1982 CB750K
1982-1983 CB750SC Nighthawk
1982 CBX
1982 CM450A Hondamatic
1982 CM450C Custom
1982 CM450E
1982-1986 CT110
1982 CX500C Custom
1980-1981 CX500D Deluxe
1982-1983 FT500 Ascot
1981 GL1100 Gold Wing
1982 GL500I Silver Wing Interstate
1982 GL500 Silver Wing
1988-1990 NX125
1986-1987 TLR200
1986-1987 TR200
1985-1988 TRX125
1984 TRX200
1991-1997 TRX200D FourTrax Type II
1990-1991 TRX200 FourTrax
1986-1988 TRX200SX
1985-1987 TRX250
1987-1988, 1991-1992 TRX250X
1993-2008 TRX300EX Sportrax
1986-1987 TRX350
1987-1989 TRX350D
1982-1985 XL125S
1982-1983 XL185S
1983-1984 XL200R
1982-1983 XL250R
1982 XL500R
1982-1984 XR200
1981-1983, 1986-2002 XR200R
1982 XR250R
1982 XR500R

Suzuki

1985-1986 GV1200 Madura
1986 GV700GL Madura
1986 LT250EF

Features & benefits

TRIVALENT METAL PLATING: Delivers superior anti-corrosion and anti-seizing properties, ensuring ease of installation and removal
Pure alumina silicate ceramic insulator provides superior strength and better heat transfer
Trivalent metal plating for superior anti-corrosion and anti-seizing properties
Corrugated ribs prevent flashover
Copper core aids in heat removal
Triple seals prevent leakage
SOLID COPPER CORE: 98% pure copper core offers superior heat dissipation, conductivity and ultra wide heat ranges
ACTUAL OE or EQUIVALENT DESIGN: OEM quality construction nickel alloy center electrode provides consistent performance
NGK's OE CERAMIC TECHNOLOGY: High grade alumina silicate ceramic creates a stronger insulator for optimal dielectric performance
COLD-ROLLED THREADS: Prevents cross-threading and damage to cylinder heads
RECOMMENDED USAGE: Best for vehicles with OE nickel alloy plugs, not recommended on vehicles with factory precious metal plugs

Specifications

Center Electrode Core Material	Copper
Center Electrode Design	Standard
Center Electrode Insulator Tip Projection	1.6 mm
Center Electrode Projection	Non-Projected
Center Electrode Tip Material	Nickel
Color	Nickel
Country Of Origin	JP
Electrical Terminal Type	Stud
Grade Type	Standard Replacement
Ground Configuration	J-Gap
Ground Electrode Core Material	Nickel
Ground Electrode Quantity	1
Ground Electrode Tip Design	Standard
Ground Electrode Tip Material	Nickel
Hex Size	18mm
Insulator Height	50.5 mm
Insulator Material	Ceramic
Manufacturer Heat Range	8
Metallurgy	Copper
Part Number	DR8ES-L
Pre-Gap Size	0.7 mm
Reach	19.0 mm
Resistance	5000.0 82
Resistor Type	Yes
Seat Type	Flat
Service Number	DR8ES-L
Short Style Spark Plug	No
Skirt	No
Skirt Length	0.0 mm
Street Legal	Yes
Thread Size	M12 - 1.25
Thread Type Standard	Metric
Washer Type	Crush
Washer(s) Included	Yes
