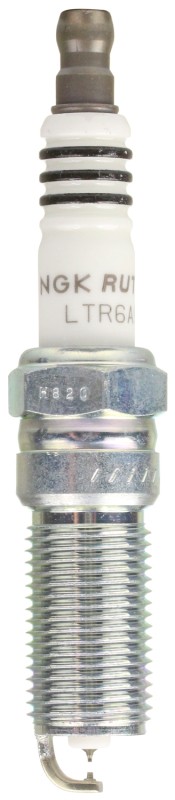

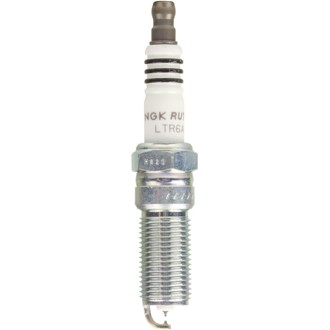

Ruthenium Hx High Ignitability Spark Plug

Part Number 91276 (132648189)
$8.71
In stockShips by 15th Oct
Select vehicle for guaranteed fit

Description

NGK Ruthenium HX High Ignitability spark plugs are the best in class plug for todays modern vehicles. Patented Ruthenium technology offers the most advance tip technology and delivers the highest performance and life expectancy. Created from advanced OE technology as a high ignitability plug; Ruthenium HX spark plugs come with patented, specialized OEM DFE and PSPE tip designs. NGK Ruthenium HX High Ignitability spark plugs provide a more complete fuel burn resulting in a quicker throttle response, smoother idle and better cold starts. Ruthenium center electrode provides industry leading durability.

Features & benefits

  • RECOMMENDED USAGE: Modern vehicles using OE DFE type spark plugs or for those seeking an aftermarket plug with the latest OE technology
  • 0.4mm Ruthenium alloy fine wire center electrode and 0.8mm platinum fine wire ground electrode
  • Pure alumina silicate ceramic insulator provides superior strength and better heat transfer
  • Trivalent metal plating for superior anti-corrosion and anti-seizing properties
  • Corrugated ribs prevent flashover
  • Copper core aids in heat removal
  • PLATINUM PIN TYPE GROUND ELECTRODE: Provides more complete fuel burn, quicker throttle response, smoother idle and better cold starts
  • SOLID COPPER CORE: 98% pure copper core offers superior heat dissipation, conductivity and ultra wide heat ranges

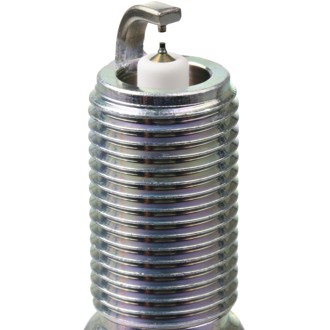

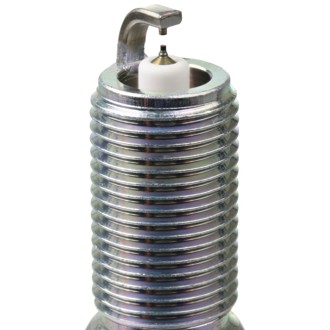

  • HIGH IGNITABILITY DOUBLE FINE ELECTRODE DESIGN: Combines 0.6 millimeter ruthenium center with opposed fine wire platinum ground electrode
  • TRIVALENT METAL PLATING: Delivers superior anti-corrosion and anti-seizing properties, ensuring ease of installation and removal
  • RUTHENIUM ALLOY CENTER ELECTRODE: NGK's patented ruthenium technology produces maximum performance, ignitability & durability at high temperatures

Specifications

Center Electrode Core Material Copper
Center Electrode Design Fine Wire
Center Electrode Insulator Tip Projection 3.0
Center Electrode Projection Mid Projection
Center Electrode Tip Material Ruthenium
Electrical Terminal Type Non-Removable Nut
Grade Type Performance
Ground Configuration J-Gap
Ground Electrode Core Material Nickel
Ground Electrode Quantity 1
Ground Electrode Tip Design Dual Fine Electrode (DFE) - High Ignitability
Ground Electrode Tip Material Platinum
Hex Size 5/8" (16mm)
Insulator Height 52.5
Insulator Material Ceramic
Manufacturer Heat Range 6
Metallurgy Ruthenium
Part Number LTR6AHX
Pre-Gap Size 1.1
Reach 25.0
Resistance 5000.0
Resistor Type Yes
Seat Type Tapered
Service Number LTR6AHX
Short Style Spark Plug No
Skirt No
Skirt Length 0.0
Stock Number 91276
Street Legal Yes
Thread Size M14 - 1.25
Thread Type Standard Metric
Washer(s) Included No

Warranty

2 Months

Magnuson-Moss Warranty Act

Legally, a vehicle manufacturer cannot void the warranty on a vehicle due to an aftermarket part unless they can prove that the aftermarket part caused or contributed to the failure in the vehicle (per the Magnuson Moss Warranty Act (15 U.S.C. 2302(C)).
