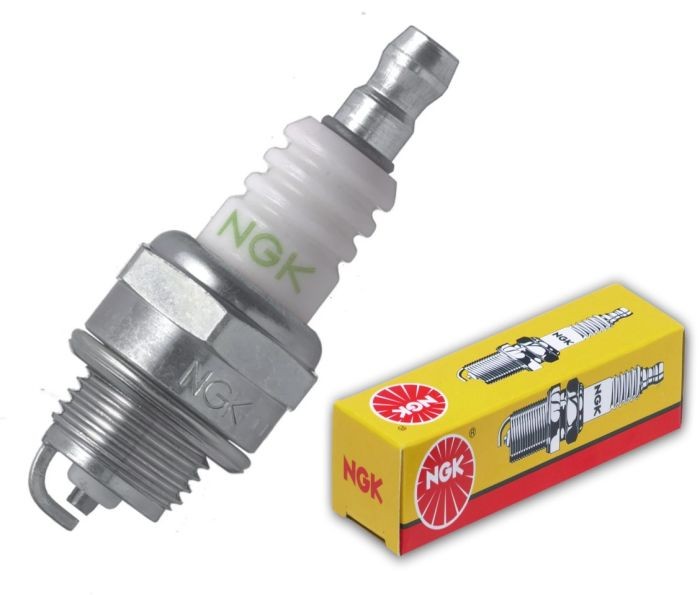

OE Series V-Power Nickel Spark Plug: V-Groove Tip, BPM8Y SOLID

Part Number 5574 (132647958)

UPC: 87295055748

Package contents: 1 Each

Color

Nickel

Platinum +$14.32 In stock
Nickel +$7.53 In stock

$1.91

In stockShips by 29th Oct

Description

Autolite 2976

Autolite XST2976

Champion CJ6Y

NGK stk 2057

Echo 15901019830

Corrugated Ribs help prevent "Flashover" of spark which can lead to harmful misfires and rob you of performance.

Alumina Silicate insulator ensures dielectric strength and incredible physical strength.

Triple Gasket sealing process

Solid Copper Core - Other manufacturers claim to use a solid copper core, but NGK uses a large amount of copper to ensure greater spark and heat transfer.

Longer insulator nose - This superior design, sometimes called a "Power Tip" helps prevent loading up or fouling, even after prolonged periods of idling, or at slow speeds.

Double Dipped Zinc Chromate shell - tough, corrosion resistant zinc chromate coating, ensuring maximum rust resistance.

Note: Anti-Sieze should NOT be used on NGK Spark plugs in outdoor power equipment applications

Features & benefits

TRIVALENT METAL PLATING: Delivers superior anti-corrosion and anti-seizing properties, ensuring ease of installation and removal
Pure alumina silicate ceramic insulator provides superior strength and better heat transfer
Trivalent metal plating for superior anti-corrosion and anti-seizing properties
Corrugated ribs prevent flashover
Copper core aids in heat removal
Triple seals prevent leakage
RECOMMENDED USAGE: Best for vehicles with OE nickel alloy plugs, not recommended on vehicles with factory precious metal plugs
COLD-ROLLED THREADS: Prevents cross-threading and damage to cylinder heads
ACTUAL OE or EQUIVALENT DESIGN: OEM quality construction nickel alloy center electrode with V-groove provides consistent performance
NGK's OE CERAMIC TECHNOLOGY: High grade alumina silicate ceramic creates a stronger insulator for optimal dielectric performance
SOLID COPPER CORE: 98% pure copper core offers superior heat dissipation, conductivity and ultra wide heat ranges

Specifications

Center Electrode Core Material	Copper
Center Electrode Design	Standard
Center Electrode Insulator Tip Projection	3.0 mm
Center Electrode Projection	Mid Projection
Center Electrode Tip Material	Nickel
Color	Nickel
Country Of Origin	BR
Electrical Terminal Type	Non-Removable Nut
Grade Type	Standard Replacement
Ground Configuration	J-Gap
Ground Electrode Core Material	Nickel
Ground Electrode Quantity	1
Ground Electrode Tip Design	Standard
Ground Electrode Tip Material	Nickel
Hex Size	3/4" (19mm)
Insulator Height	38.0 mm
Insulator Material	Ceramic
Manufacturer Heat Range	8
Metallurgy	Copper
Part Number	BPM8Y SOLID
Pre-Gap Size	0.7 mm
Reach	9.5 mm
Resistance	0.0 82
Resistor Type	No
Seat Type	Flat
Service Number	BPM8Y SOLID
Short Style Spark Plug	Yes
Skirt	No
Skirt Length	0.0 mm
Street Legal	Yes
Thread Size	M14 - 1.25
Thread Type Standard	Metric
Washer Type	Crush
Washer(s) Included	Yes

Warranty

2 Months

Magnuson-Moss Warranty Act

Legally, a vehicle manufacturer cannot void the warranty on a vehicle due to an aftermarket part unless they can prove that the aftermarket part caused or contributed to the failure in the vehicle (per the Magnuson Moss Warranty Act (15 U.S.C. 2302(C)).

California residents

WARNING: This product can expose you to chemicals including nickel, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov.
