RMStator® RM00034 - Stator Ignition Source Coil

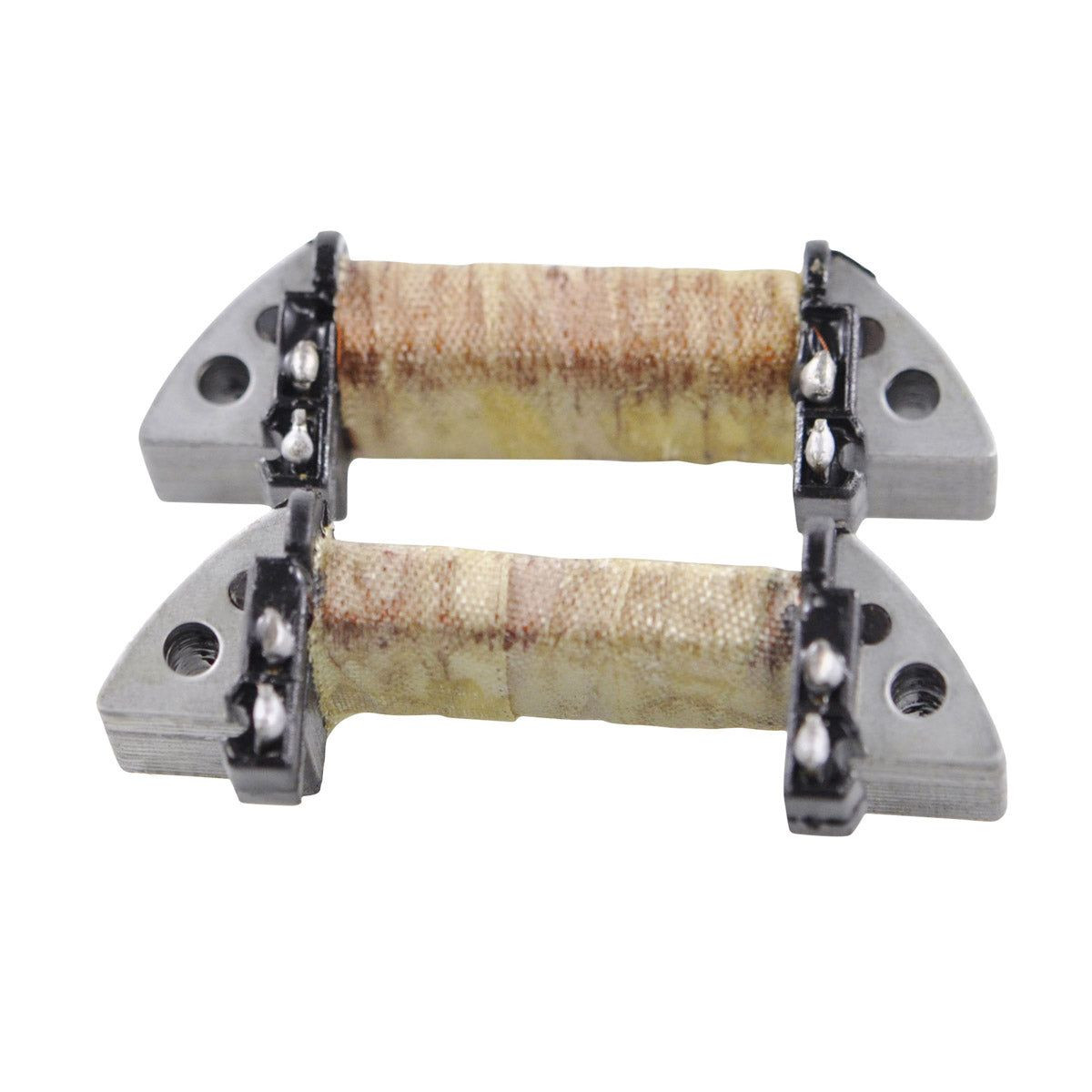

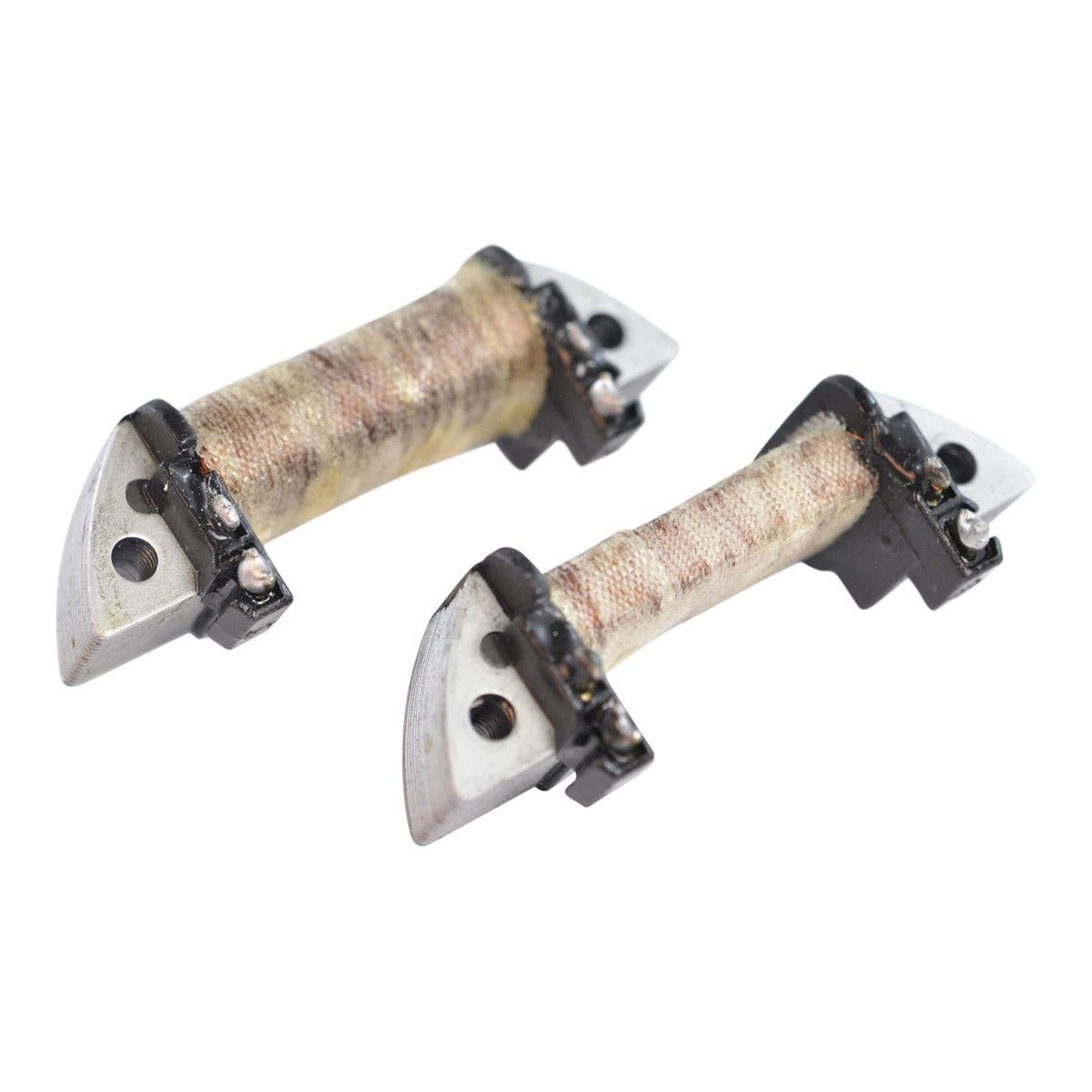

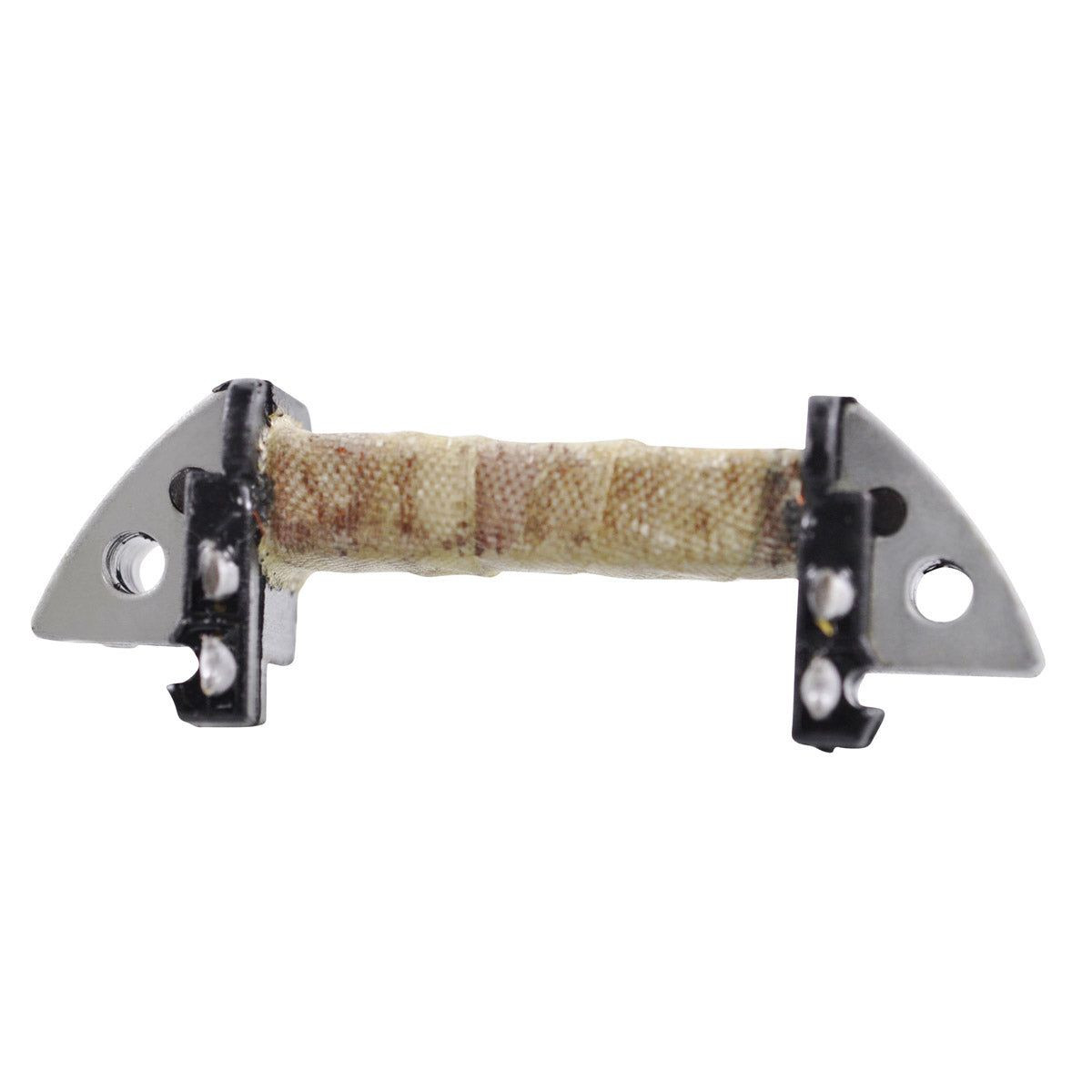

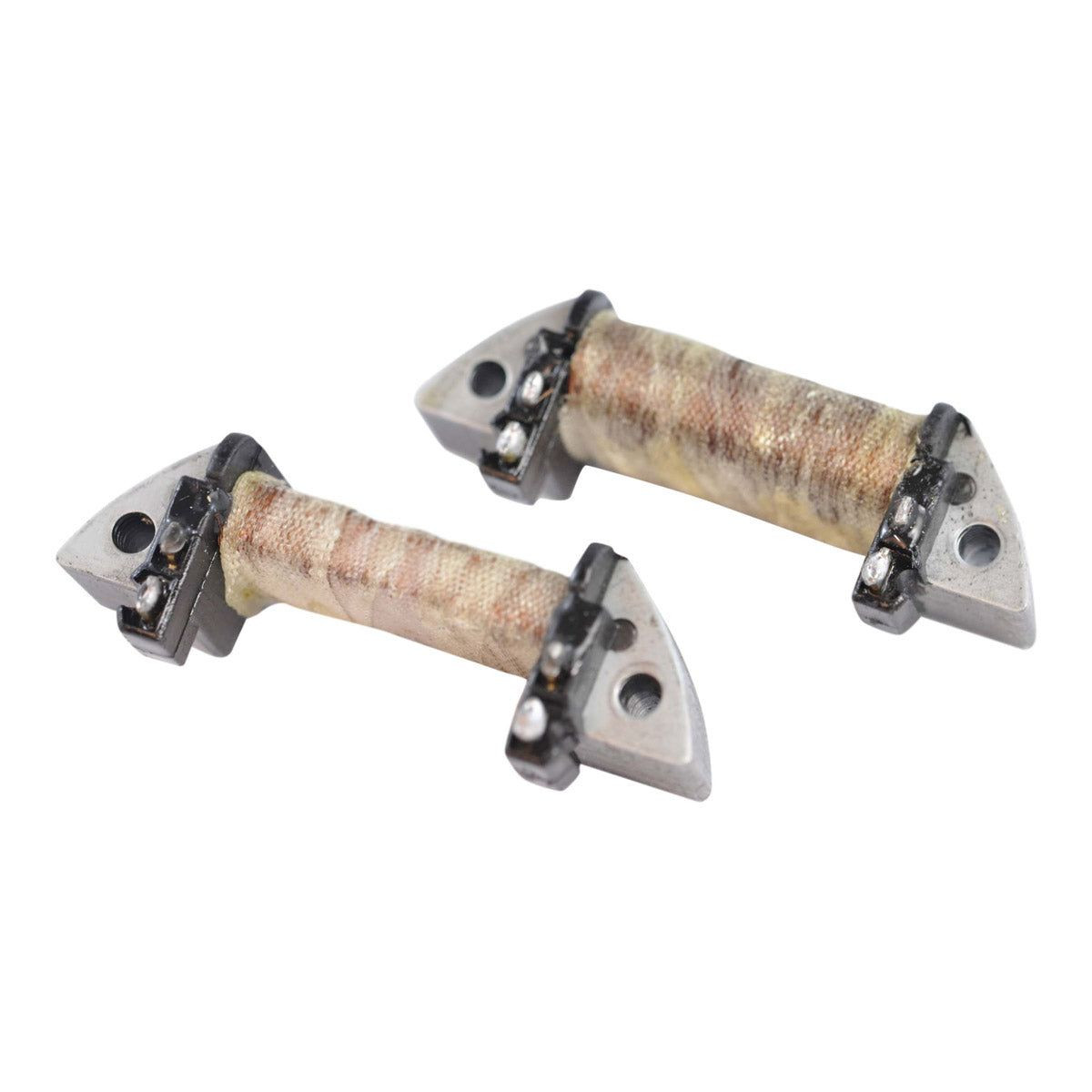

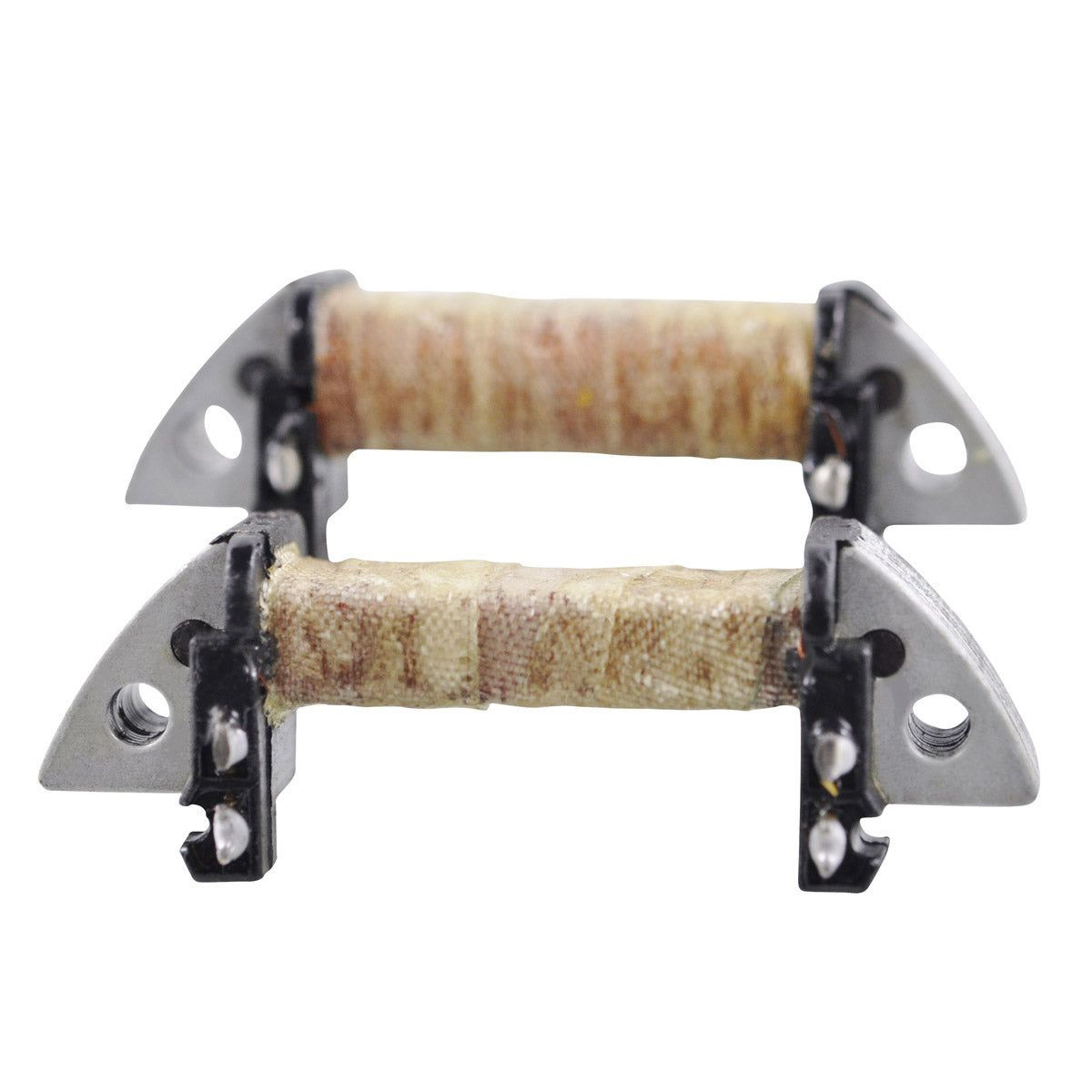

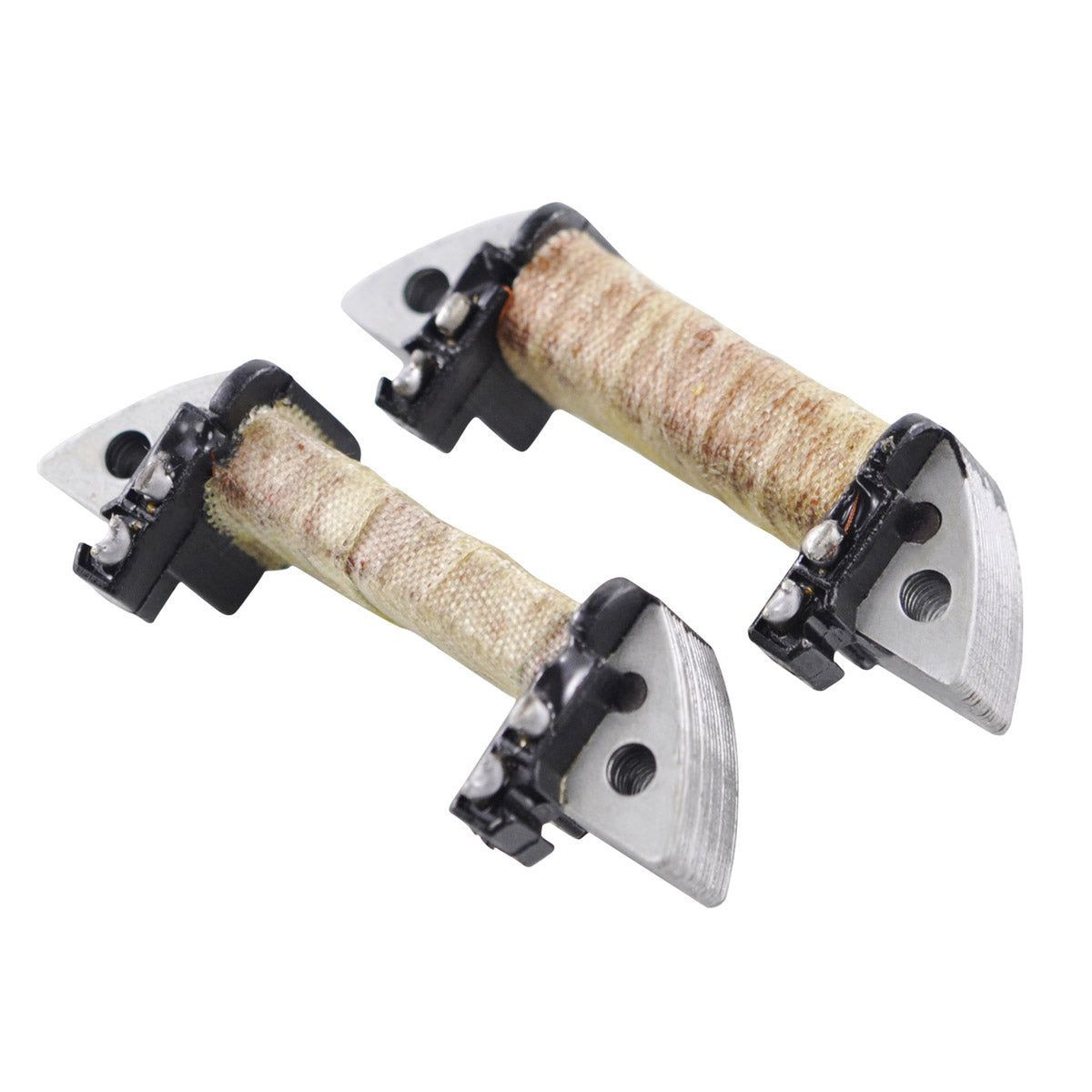

Brand new ignition source coil
We offer a brand new ignition source coil for you to repair your stator.
Often unavailable from the OEM manufacture

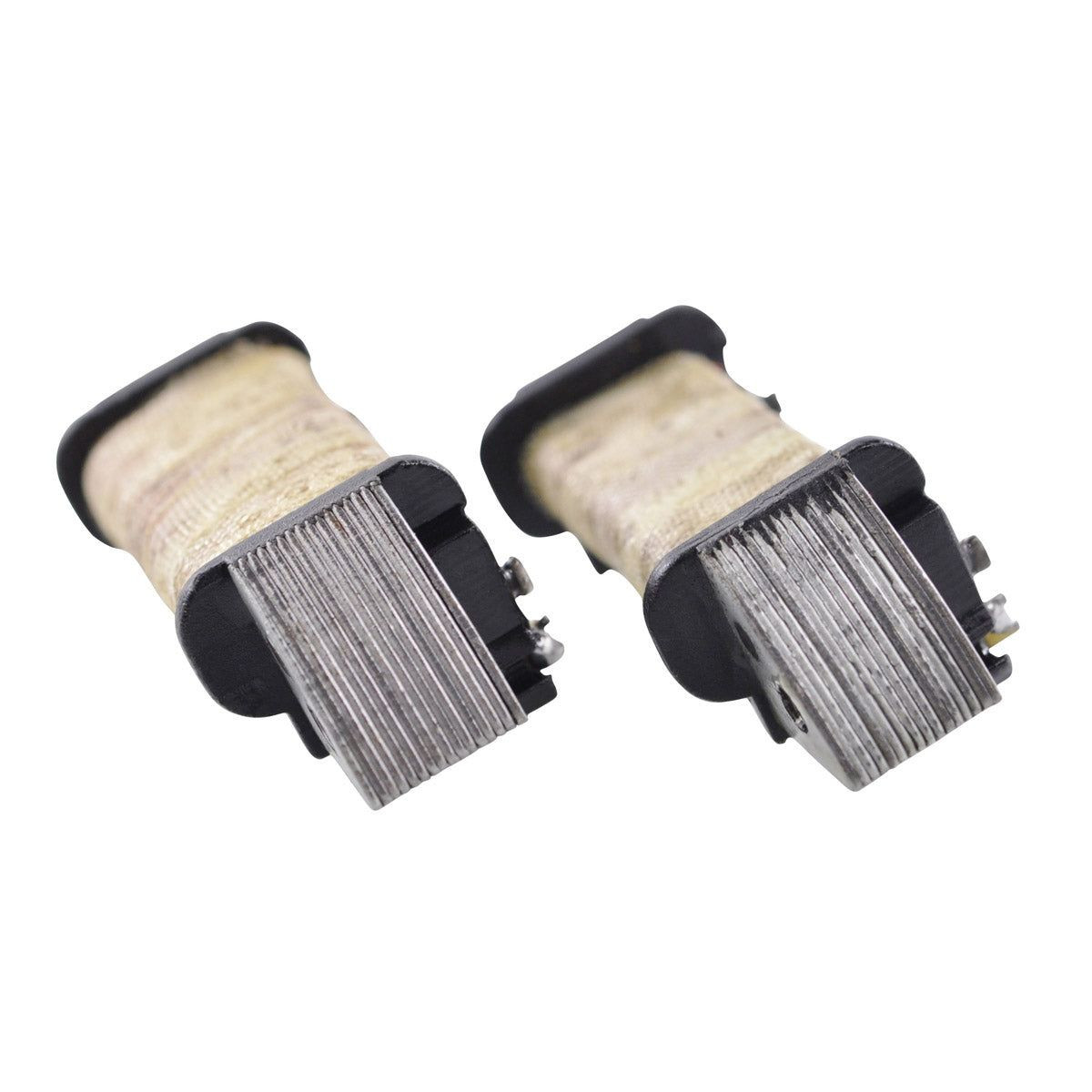

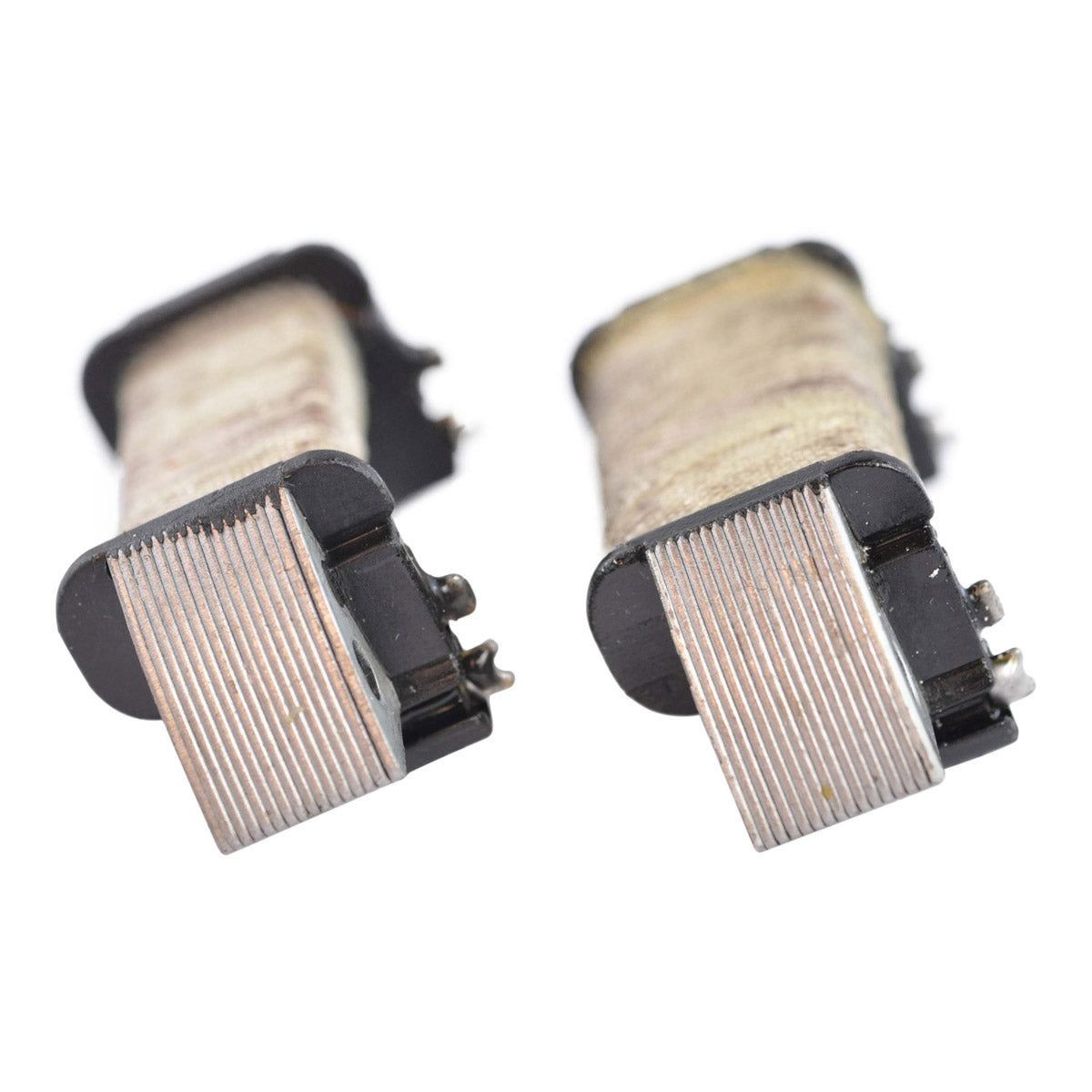

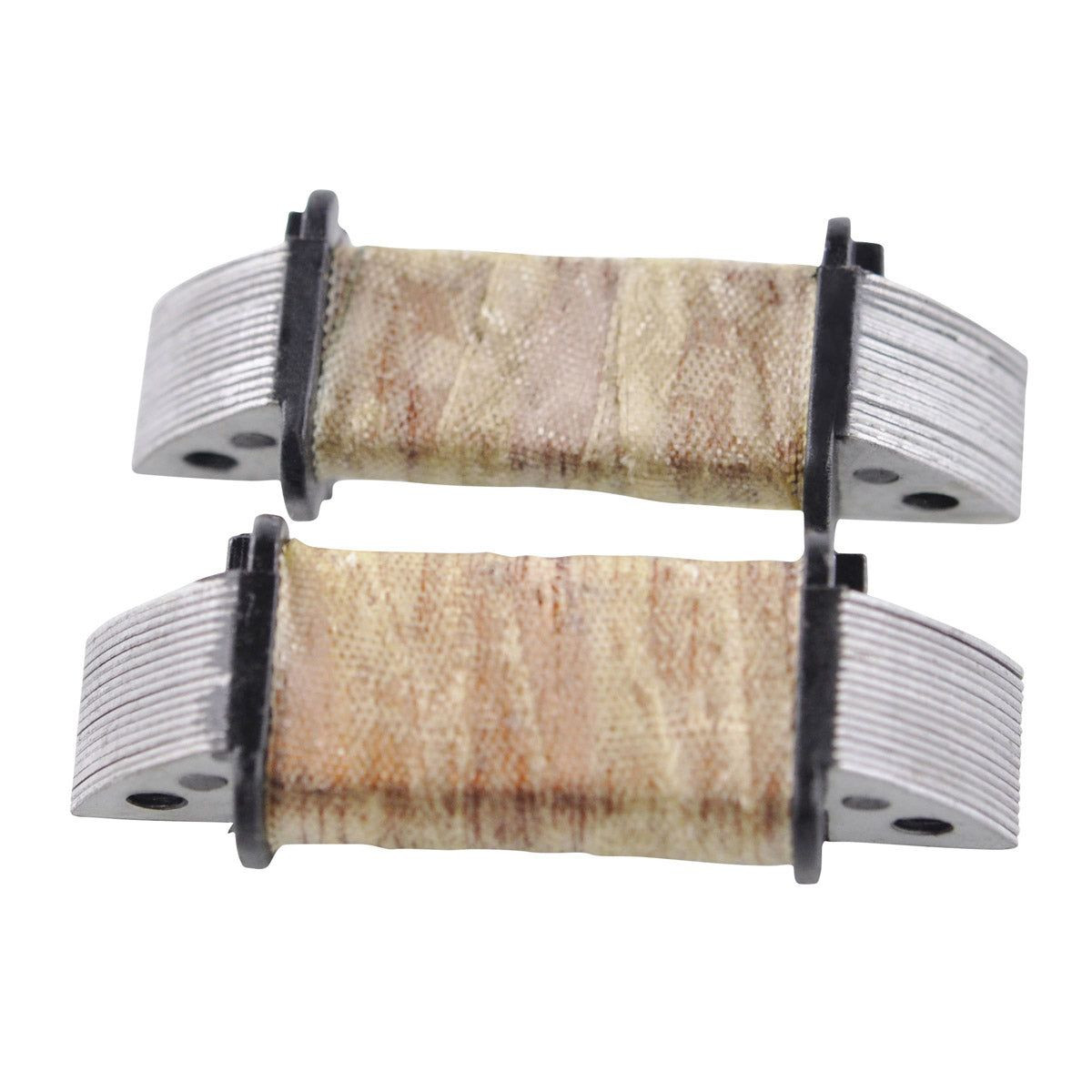

Highest grade lamination materials
Highest grade copper windings, resistant to 200 degrees celsius
Works with all other OEM parts
All product shipped are tested

Instructions for KawasakiI 1992-1997 KX125, 1992-1997 KX250
Take the ignition cover off.
Take note of the wire colors of the original stator wires and disconnect them from the wiring loom.
Remove the flywheel using a proper puller tool.
Remove the baseplate with the original stator.
Remove the screws that secure the ignition coils and take the coils off.
Cut the original wires close to the original coils. Take a good look at how the wires are connected to the coil.
Connections:
Large coil connects to the Black/Red and the Red wire.
Small coil connects over to the large coils Red wire and the other side to the White wire.
Connect the wires on the same side of the coils as the original setup.
Connect the old wires up to the new coils. Put the wires in exactly the same place as on the original. Make sure you have good connections here
Mount the coils onto the baseplate, fit the screws using locking compound on the threads and TIGHTEN THE SCREWS SECURELY!
Refit the stator baseplate. Ensure the wires CANNOT TOUCH THE FLYWHEEL! (especially on the inside of.
Instructions for Yamaha YZ125 1992
Take the ignition cover off.
Take note of the wire colors of the original stator wires and disconnect them from the wiring loom.
Remove the flywheel using a proper puller tool.
Remove the baseplate with the original stator.
Remove the screws that secure the ignition coils and take the coils off.
Cut the original wires close to the original coils. Take a good look at how the wires are connected to the coil.
CONNECTIONS:
Large coil connects to the Brown wire, connect the other side up to the Red wire.
Small coil connects to the Black wire (=ground), connect the other side up to the White wire.
Connect the old wires up to the new coils. Put the wires in exactly the same place as on the original.
Make sure you have good connections here.
Mount the coils onto the baseplate, fit the screws using locking compound on the threads and TIGHTEN THE SCREWS SECURELY!
Refit the stator baseplate. Ensure the wires CANNOTTOUCH THE FLYWHEEL! (especially on the inside of the flywheel)
Refit the flywheel. Tighten the bolt to specified torque.
Connect the wires to the wiring loom on the bike. Refit the ignition cover.
Connect the wires to the wiring loom on the bike.
Fill the ignition cover
Warning:
Risk of electric shock. Disconnect the battery before servicing.
Ensure proper installation by a qualified technician to avoid malfunction.
