Wilwood Adjustable Dual Pedal - Brake / Clutch - Rev. Swing Mount - 5.1:1

Name: Wilwood Adjustable Dual Pedal - Brake / Clutch - Rev. Swing Mount - 5.1:1
Brand: Wilwood Brakes
SKU: 133112865
Price: 311.91 USD
Availability: InStock

Part Number 340-13835 (133112865)

$311.91 ~~$336.86~~ SAVE 7%

In stockShips by 13th Oct

Universal Fit - No vehicle selection required

Description

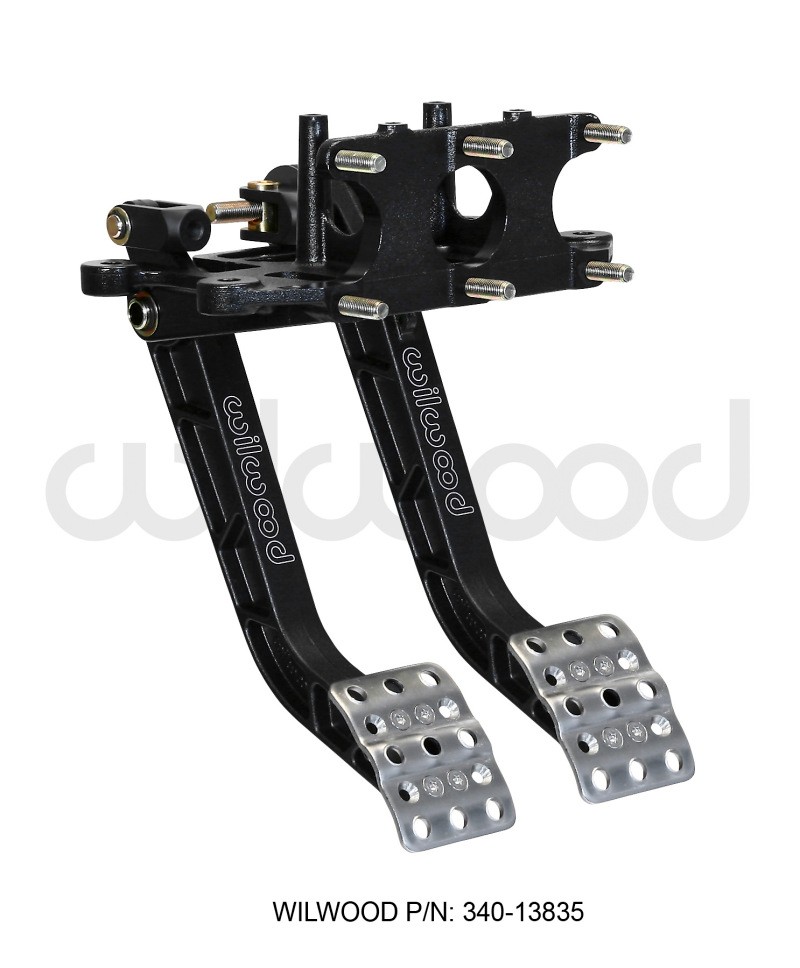

This swinging mount pedal assembly combines the brake and clutch pedals in one unit with the master cylinders in a reverse position inside the firewall. It features a lightweight aluminum frame, with high strength reinforced I-Beam style forged 5.1:1 ratio pedal arms. The non-skid waffled pedal pads can be laterally adjusted for driver preference or clearance as necessary. The balance bar incorporates a positive detent stop every full turn to maintain adjustment position and driver awareness. A pin and clevis pushrod attachment system provides highest possible degree of misalignment angle for bind free operation through the entire range of travel. The balance bar can be locked in place with the included jam nut, or used with an optional remote cable for quick on-track adjustments. This pedal accepts any Wilwood vertical mount flange single outlet master cylinders that are ordered separately by style and bore size.

Magnuson-Moss Warranty Act

Legally, a vehicle manufacturer cannot void the warranty on a vehicle due to an aftermarket part unless they can prove that the aftermarket part caused or contributed to the failure in the vehicle (per the Magnuson Moss Warranty Act (15 U.S.C. 2302(C)).
