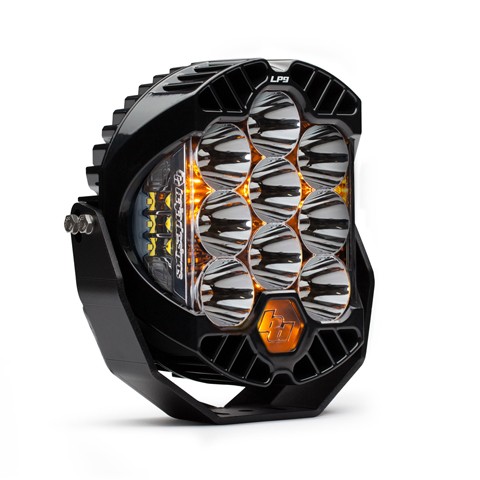

LP9 Racer Edition Series High Speed Spot Pattern LED Light Pods - Clear
Description
Inspired by Baja Designs' iconic 8-inch La Paz HID, the LP9 boasts contemporary styling and top-notch performance, incorporating some of today's most advanced LED technologies.
With 9 forward-projecting LEDs producing 11,025 Lumens at 105 watts, and 6 LEDs dedicated to Integrated Peripheral Technology (IPT) generating 1,140 lumens at 10.5 watts per side, the LP9 achieves an outstanding total lumen output.
The IPT ensures an impressive 200-degree spread of usable light. The housing is engineered for exceptional heat dispersion, employing Direct Ducted Cooling for effective airflow from the front to the rear.
Featuring daytime running light, low, and high-power modes, the LP9 caters to all lighting needs. It is available in a standard model suitable for a wide range of off-road applications and a Racer Edition configuration tailored for high-speed driving.
The Racer Edition, with a similar power draw, delivers a tighter pattern for enhanced visibility at greater distances. Both models incorporate uService technology, allowing users to change the lens pattern and color based on driving conditions or for a lens refresh.
• Satisfaction Guarantee -30-Day Money Back Guarantee
• Limited Lifetime Warranty -Complete Purchase Protection
• uService -Replaceable Lenses And Optics
• ClearView -All The Light, Right Where You Need It
• MoistureBlock -Waterproof, Rain Proof, Submersible
• CopperDrive -Only LED Driven At 100 Percent
• 5000K Daylight -Less Driver Fatigue, Natural Color
Features & benefits
- Satisfaction Guarantee – 30-Day Money Back Guarantee
- One Light Pod
Specifications
| Amperage Rating (A) | 9.600 specifications |
|---|---|
| Average Rated Life (hr.) | 49,930 specifications |
| Backlight Amperage Rating (A) | 0.200 specifications |
| Backlight Wattage (W) | 2.800 specifications |
| Beam Pattern | Racer Edition Spot specifications |
| Bezel Material | Powder Coat Cast Aluminum specifications |
| Bracket Material | Stainless Steel |
| Brackets Included | Yes |
| Brightness (Lumens) | 8374 specifications |
| Color | Clear |
| Country Of Origin | USA |
| Depth (in.) | 3.250 dimensions |
| Description | Racer Edition Spot; Clear specifications |
| Height (in.) | 8 dimensions |
| Housing Color | Black specifications |
| Housing Material | Powder Coat Cast Aluminum specifications |
| Housing Type | Hard Anodized Machined Aluminum |
| IK10 Compliant | IK10 Compliant (Mechanical Impact Testing) |
| Length (in.) | 8 dimensions |
| Lens Color | Clear specifications |
| Lens Material | Hardcoated Polycarbonate specifications |
| Life Span Expectancy | 49,930 Hours |
| Light Quantity | 1 specifications |
| Lighting Modes | High Beam/Low Beam/Day-Time Running Backlighting specifications |
| Lighting Quantity | 9 specifications |
| Lighting Technology | LED specifications |
| Lighting Type | Forward Projecting specifications |
| Mfg Label | LED Light Pods |
| Mounting Hardware Included | Yes specifications |
| Mounting Hardware Material | Stainless Steel specifications |
| Overvoltage Protection | Built-In specifications |
| Patent No. | 5,504,603 standards & complian |
| Product Type | LP9 Racer Edition LED Light Pod specifications |
| Secondary Amperage Rating (A) | 1.520 specifications |
| Secondary Brightness (Lumens) | 2302 specifications |
| Secondary Light Quantity | 6 LEDs specifications |
| Secondary Lighting Technology | LED specifications |
| Secondary Lighting Type | Integrated Peripheral Technology (IPT) specifications |
| Secondary Wattage (W) | 21 specifications |
| Series | LP9 Racer Edition |
| Sold As | Each |
| Standards/Compliance (Durability) | Exceeds MIL-STD810G (Mil-Spec Testing) standards & complian |
| Standards/Compliance (Impact Resistance) | IK10 Compliant (Mechanical Impact Testing) standards & complian |
| Standards/Compliance (Water Resistance) | IP69K (Waterproof up to 9ft & Pressure Washable) standards & complian |
| Terminal Connector | DT06-4S Deutsch specifications |
| Terminal Type | Mating Connector specifications |
| Universal | Yes |
| Universal Or Specific | Universal specifications |
| UPC | 819314026572 |
| Waterproof Rating | IP69K Waterproof |
| Wattage (W) | 132.480 specifications |
| Wattage/AMP | 105W |
| Weight (lbs.) | 6.500 dimensions |
| Wiring Harness Included | No specifications |
