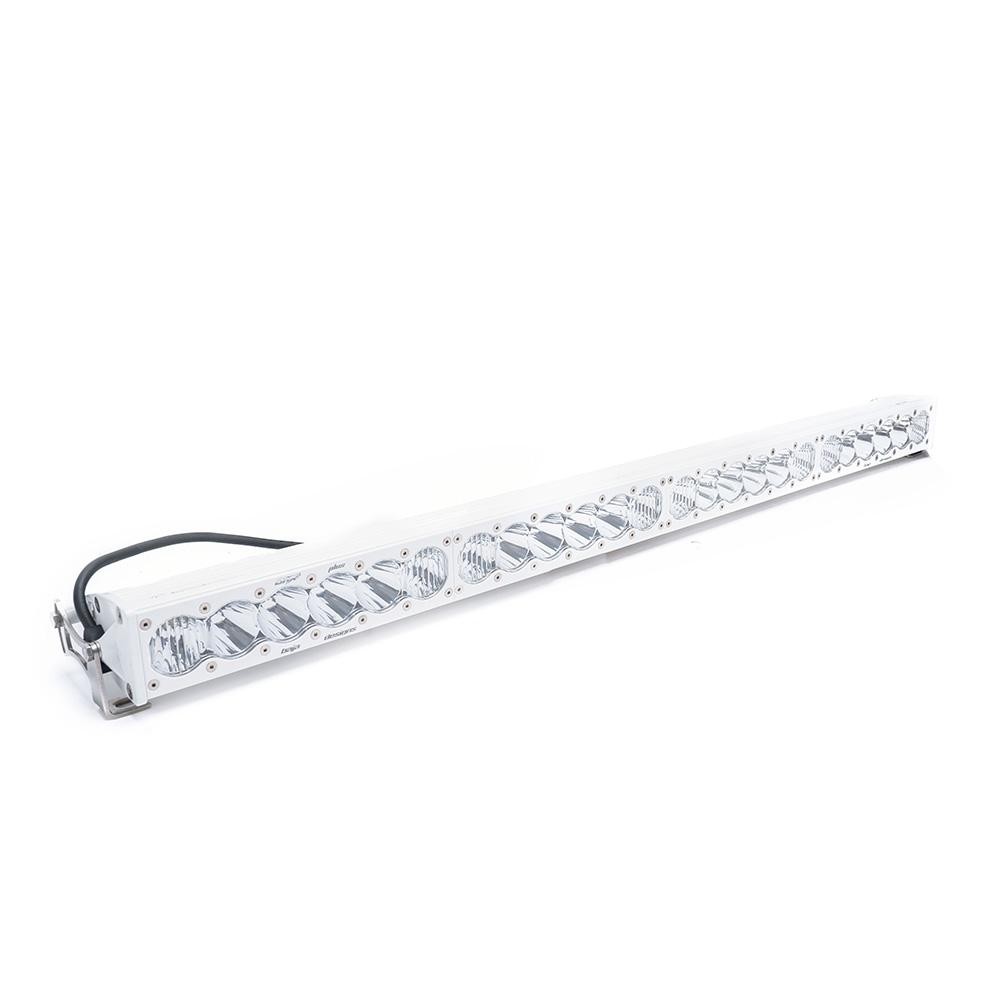

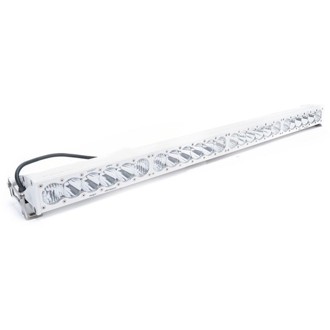

OnX6+ White Straight LED Light Bar (40 Inch; Driving/Combo; Clear)

Part Number 454003WT (132958343)

UPC: 819314028392

Color

$1,669.95 FREE SHIPPING

Out of stock

FREE SHIPPING

Description

The OnX6+ white LED light bar integrates Baja Designs trademarked High Speed Spot reflector, the same one used by our Team Enlightened racers, to give you the guaranteed furthest projecting LED Light Bar on the planet.

In addition, the OnX6 plus LED light bar adopts industry standard sizing and is now compatible with aftermarket mounting systems.

An industry first 30 Day Satisfaction Guarantee and Limited Lifetime Warranty is included for the ultimate in purchase protection.

Note: This light does Not include a harness To access the High/low light function the applicable wiring harness is 640119. *640115 On/Off OnX6+ wiring harness is only applicable for 10-20in. OnX6+. *640119 OnX6+ wiring harness is applicable for 30-50in. OnX6+.

Features & benefits

Does not include harness to access the high/low light function; wiring harness 64-0119 sold separately
NOTE: *This light does NOT come with a harness, the applicable harness is 640119 OnX6+ wiring harness must be used for 30-50in.
One Light Bar

Specifications

Amperage Rating (A)	26.8 (High); 22.4 (Low) specifications
Average Rated Life (hr.)	49,930 specifications
Beam Pattern	Driving/Combo specifications
Bezel Material	Billet Machined Aluminum specifications
Brightness (Lumens)	38,900 (High); 32,440 (Low) specifications
Color	White
Country Of Origin	USA
Depth (in.)	4.29 dimensions
Description	Straight; Driving/Combo; Clear specifications
Height (in.)	2.69 dimensions
Housing Color	White specifications
Housing Material	Aircraft Grade Aluminum with Mil-Spec Hard Anodize specifications
Length (in.)	40 dimensions
Lens Color	Clear specifications
Lens Material	Hardcoated Polycarbonate specifications
Light Quantity	1 specifications
Lighting Modes	High Beam/Low Beam specifications
Lighting Quantity	24 specifications
Lighting Technology	LED specifications
Lighting Type	Forward Projecting specifications
Material	Aluminum

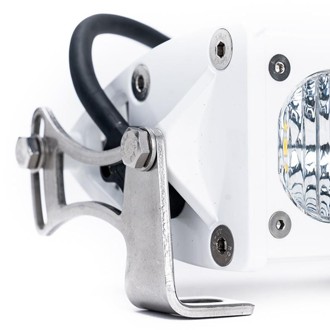

Mounting Hardware Description	Mounting Brackets specifications
Mounting Hardware Included	Yes specifications
Mounting Hardware Material	Stainless Steel specifications
Overvoltage Protection	Built-In specifications
Product Type	OnX6+ 40 Inch LED Light Bar specifications
Sold As	Each
Standards/Compliance (Durability)	Exceeds MIL-STD810G (Mil-Spec Testing) standards & complian
Standards/Compliance (Impact Resistance)	IK10 Compliant (Mechanical Impact Testing) standards & complian
Standards/Compliance (Water Resistance)	IP69K (Waterproof up to 9ft & Pressure Washable) standards & complian
Universal	Yes
Universal Or Specific	Universal specifications
UPC	819314028392
Waterproof Rating	IP69K
Wattage (W)	346 (High); 290 (Low) specifications
Wattage/AMP	346 Watts (High); 290 Watts (Low)
Weight (lbs.)	15.05 dimensions
Wiring Harness Description	Hi-Low Dongle specifications
Wiring Harness Included	No specifications

Videos and guides

Installation Instructions PDF
