Baja Designs

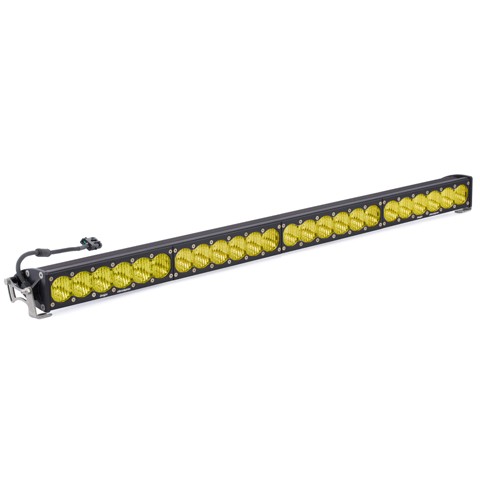

OnX6+ Straight LED Light Bar (40 Inch; Driving/Combo; Baja Amber)

Name: OnX6+ Straight LED Light Bar (40 Inch; Driving/Combo; Baja Amber)
Brand: Baja Designs
SKU: 132667616
Price: 1459.95 USD
Availability: InStock

Part Number 454013 (132667616)

$1,459.95

In stockShips by 21st Oct

Description

At an impressive 39,430 lumens, the brightest just got up to 69 percent brighter than our previous generation. The OnX6 plus LED light bar also integrates Baja Designs’ trademarked High Speed Spot reflector, the same one used by our Team Enlightened racers, to give you the guaranteed furthest projecting LED Light Bar on the planet. In addition, the OnX6 plus LED light bar adopts industry standard sizing and is now compatible with aftermarket mounting systems. An industry first 30 Day Satisfaction Guarantee and Limited Lifetime Warranty is included for the ultimate in purchase protection.

Features & benefits

Satisfaction Guarantee – 30-Day Money Back Guarantee
NOTE: *This light does NOT come with a harness, the applicable harness is 640119 OnX6+ wiring harness must be used for 30-50in.
One Light Bar

Specifications

Amperage Rating (A)	26.8 (High); 22.4 (Low)
Average Rated Life (hr.)	49,930
Beam Pattern	Driving/Combo
Bezel Material	Billet Machined Aluminum
Brightness (Lumens)	38,900 (High); 32,440 (Low)
Color	Amber
Country Of Origin	USA
Depth (in.)	4.29
Description	Straight; Driving/Combo; Amber
Height (in.)	2.69
Housing Color	Black
Housing Material	Aircraft Grade Aluminum with Mil-Spec Hard Anodize
Length (in.)	40
Lens Color	Amber
Lens Material	Hardcoated Polycarbonate
Light Quantity	1
Lighting Modes	High Beam/Low Beam
Lighting Quantity	24
Lighting Technology	LED
Lighting Type	Forward Projecting
Mounting Hardware Description	Mounting Brackets
Mounting Hardware Included	Yes
Mounting Hardware Material	Stainless Steel
Overvoltage Protection	Built-In
Product Type	OnX6+ 40 Inch LED Light Bar
Standards/Compliance (Durability)	Exceeds MIL-STD810G (Mil-Spec Testing)
Standards/Compliance (Impact Resistance)	IK10 Compliant (Mechanical Impact Testing)
Standards/Compliance (Water Resistance)	IP69K (Waterproof up to 9ft & Pressure Washable)
Universal Or Specific	Universal
Wattage (W)	346 (High); 290 (Low)
Weight (lbs.)	15.05
Wiring Harness Description	Hi-Low Dongle
Wiring Harness Included	No

Videos and guides

Installation Instructions PDF
