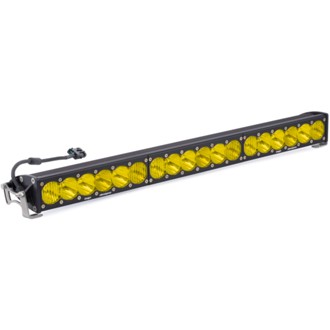

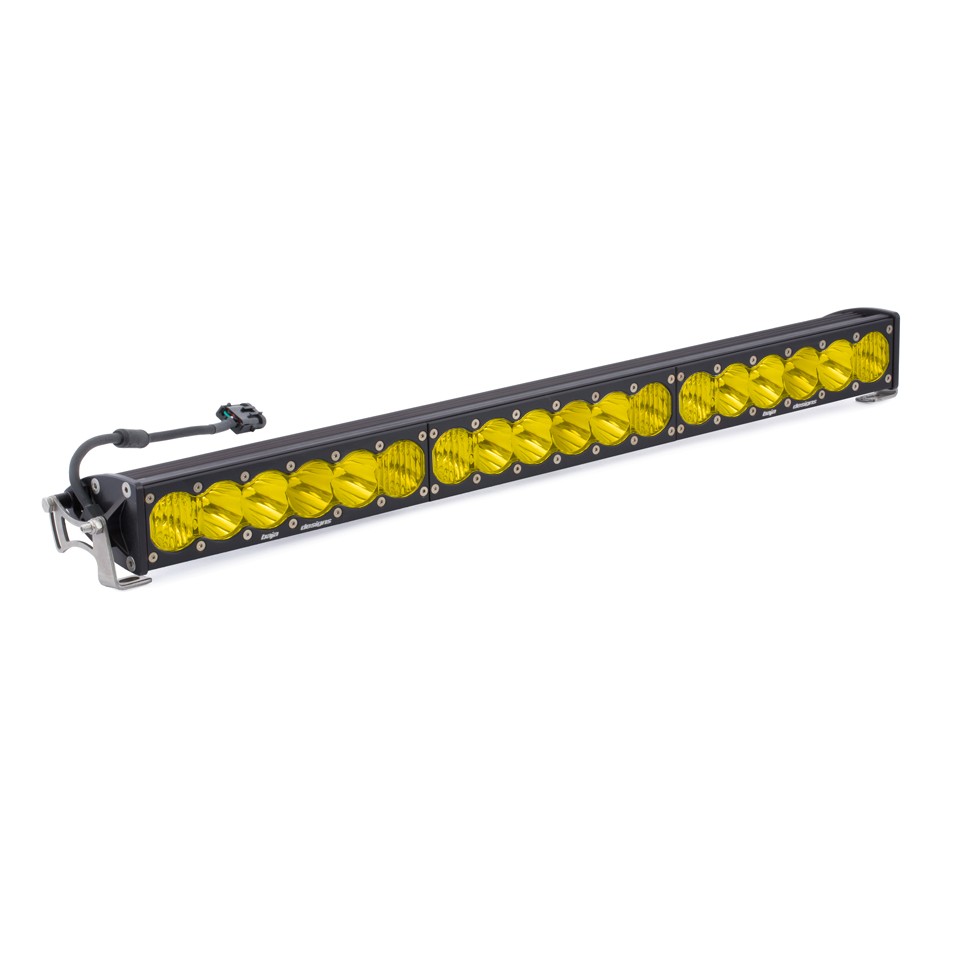

OnX6+ Straight LED Light Bar (30 Inch; Driving/Combo; Baja Amber)

Part Number 453013 (132608333)

UPC: 819314020013

$1,159.95 FREE SHIPPING

In stockShips by 2nd Nov

FREE SHIPPING

Description

The Baja Designs OnX6+ LED light bar is the pinnacle of off-road lighting. Integrating our trademarked high-speed spot reflectors along with our next-generation LED technology for increased performance and versatility with superior efficiency, the OnX6+ is ready to illuminate the trails or take you to the win at the Baja 1000.

The OnX6+ is offered in multiple sizes ranging from 10-inch bars providing 10,817 total raw lumens to 50-inch bars that push out 39,430 total raw lumens illuminating lighting zones 1, 2, 3, 4 simultaneously while pushing into zone 5.

Vertical adjustments can be made and locked in, offering the best beam pattern in front of the vehicle no matter where it is mounted. Race proven, the mil-spec aluminum housing of the OnX6+ has been designed to withstand rugged conditions that off-roaders will endure.

Our exclusive MoistureBlock technology ensures the light bar remains waterproof and dustproof even in the harshest conditions. Customize your beam pattern or change damaged lenses without voiding the warranty on the OnX6+ with our uService technology.

Installation of the OnX6+ is easy and comes with mounting brackets that can be used in any application. When you need an LED light bar that offers high-output LEDs with exceptional intensity, improved visibility and safety in various conditions, the OnX6+ LED light bar is the only choice for those that demand the best in lighting.

Backed by our 30-Day Satisfaction Guarantee and Lifetime Limited Warranty for the ultimate in purchase protection.

Note: Wiring harness Not included. Please use 640115 = OnX6+ 10-20in. 640119 = OnX6+ 30-50in.

Note: 50in OnX6+ does NOT have a Hi-Lo Function, The light bar is pre-dimmed.

• Satisfaction Guarantee -30-Day Money Back Guarantee
• Limited Lifetime Warranty -Complete Purchase Protection
• uService -Replaceable Lenses And Optics
• ClearView -All The Light, Right Where You Need It
• MoistureBlock -Waterproof, Rain Proof, Submersible
• CopperDrive -Only LED Driven At 100 Percent
• 5000K Daylight -Less Driver Fatigue, Natural Color

Features & benefits

Satisfaction Guarantee – 30-Day Money Back Guarantee
NOTE: *This light does NOT come with a harness, the applicable harness is 640119 OnX6+ wiring harness must be used for 30-50in.
One Light Bar

Specifications

Amperage Rating (A)	21.7 (High); 17.1 (Low) specifications
Average Rated Life (hr.)	49,930 specifications
Beam Pattern	Driving/Combo specifications
Bezel Material	Billet Machined Aluminum specifications
Brightness (Lumens)	31,910 (High); 25,450 (Low) specifications
Color	Amber
Country Of Origin	USA
Depth (in.)	4.29 dimensions
Description	Straight; Driving/Combo; Amber specifications
Height (in.)	2.69 dimensions
Housing Color	Black specifications
Housing Material	Aircraft Grade Aluminum with Mil-Spec Hard Anodize specifications
Length (in.)	30 dimensions
Lens Color	Amber specifications
Lens Material	Hardcoated Polycarbonate specifications
Light Quantity	1 specifications
Lighting Modes	High Beam/Low Beam specifications
Lighting Quantity	18 specifications
Lighting Technology	LED specifications
Lighting Type	Forward Projecting specifications
Mounting Hardware Description	Mounting Brackets specifications
Mounting Hardware Included	Yes specifications
Mounting Hardware Material	Stainless Steel specifications
Overvoltage Protection	Built-In specifications
Product Type	OnX6+ 30 Inch LED Light Bar specifications
Sold As	Each
Standards/Compliance (Durability)	Exceeds MIL-STD810G (Mil-Spec Testing) standards & complian
Standards/Compliance (Impact Resistance)	IK10 Compliant (Mechanical Impact Testing) standards & complian
Standards/Compliance (Water Resistance)	IP69K (Waterproof up to 9ft & Pressure Washable) standards & complian
Universal	Yes
Universal Or Specific	Universal specifications
UPC	819314020013
Wattage (W)	281 (High); 225 (Low) specifications
Weight (lbs.)	11.45 dimensions
Wiring Harness Description	Hi-Low Dongle specifications
Wiring Harness Included	No specifications
