Description

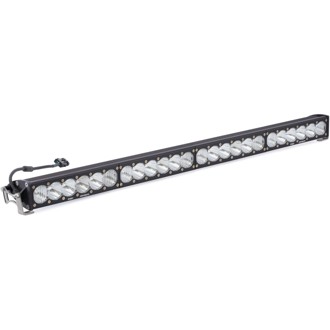

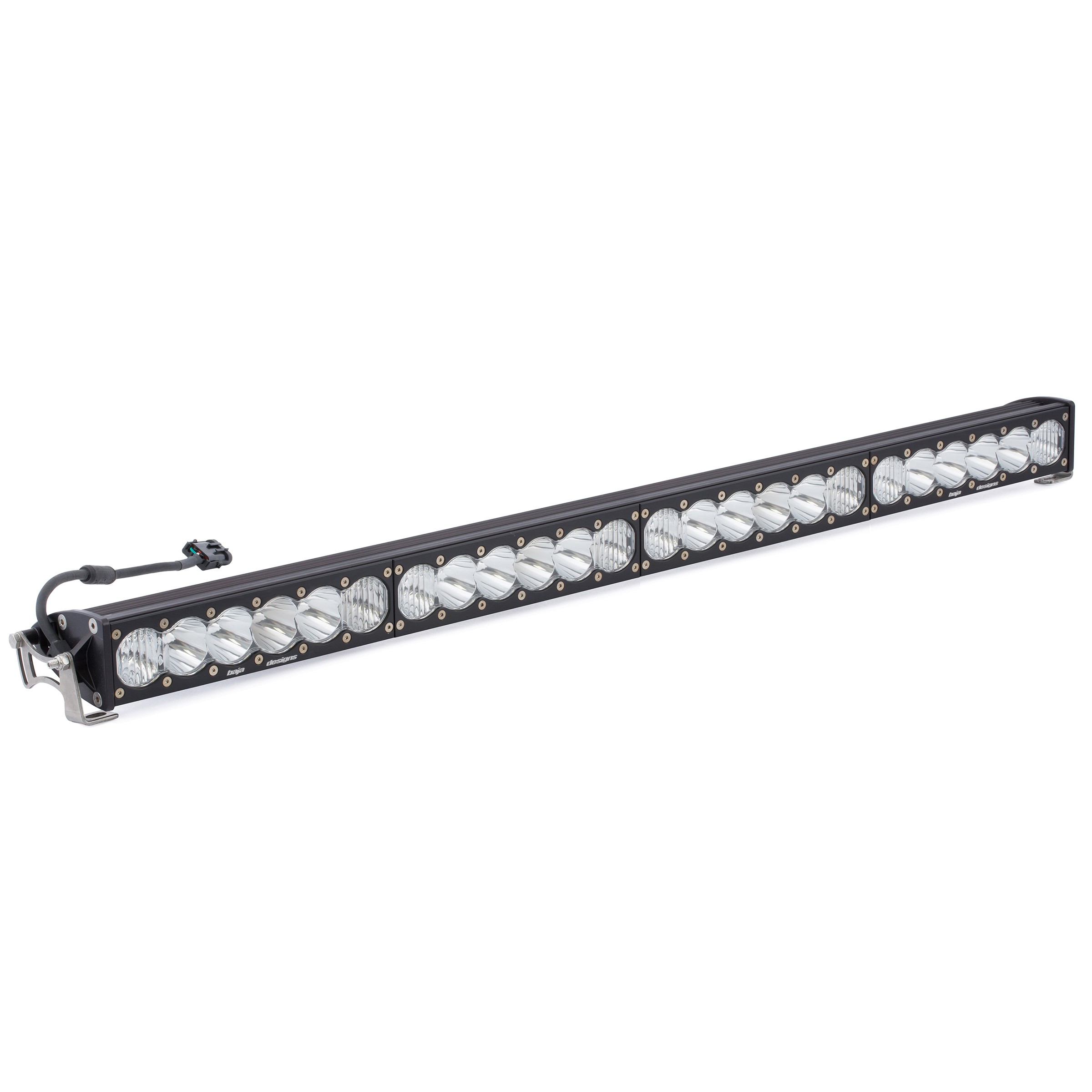

The Baja Designs OnX6+ LED light bar is the pinnacle of off-road lighting. Integrating our trademarked high-speed spot reflectors along with our next-generation LED technology for increased performance and versatility with superior efficiency, the OnX6+ is ready to illuminate the trails or take you to the win at the Baja 1000.
The OnX6+ is offered in multiple sizes ranging from 10-inch bars providing 10,817 total raw lumens to 50-inch bars that push out 39,430 total raw lumens illuminating lighting zones 1, 2, 3, 4 simultaneously while pushing into zone 5.
Vertical adjustments can be made and locked in, offering the best beam pattern in front of the vehicle no matter where it is mounted.
Race proven, the mil-spec aluminum housing of the OnX6+ has been designed to withstand rugged conditions that off-roaders will endure. Our exclusive MoistureBlock technology ensures the light bar remains waterproof and dustproof even in the harshest conditions.
Customize your beam pattern or change damaged lenses without voiding the warranty on the OnX6+ with our uService technology. Installation of the OnX6+ is easy and comes with mounting brackets that can be used in any application.
When you need an LED light bar that offers high-output LEDs with exceptional intensity, improved visibility and safety in various conditions, the OnX6+ LED light bar is the only choice for those that demand the best in lighting.
Backed by our 30-Day Satisfaction Guarantee and Lifetime Limited Warranty for the ultimate in purchase protection.
Note: Wiring harness Not included. Please use 640115 = OnX6+ 10-20in. 640119 = OnX6+ 30-50in.
Note: 50in OnX6+ does NOT have a Hi-Lo Function, The light bar is pre-dimmed.
• Satisfaction Guarantee -30-Day Money Back Guarantee
• Limited Lifetime Warranty -Complete Purchase Protection
• uService -Replaceable Lenses And Optics
• ClearView -All The Light, Right Where You Need It
• MoistureBlock -Waterproof, Rain Proof, Submersible
• CopperDrive -Only LED Driven At 100 Percent
• 5000K Daylight -Less Driver Fatigue, Natural Color
Features & benefits
- Satisfaction Guarantee – 30-Day Money Back Guarantee
- NOTE: *This light does NOT come with a harness, the applicable harness is 640119 OnX6+ wiring harness must be used for 30-50in.
- One Light Bar
Specifications
| Amperage Rating (A) | 26.8 (High); 22.4 (Low) specifications |
|---|---|
| Average Rated Life (hr.) | 49,930 specifications |
| Beam Pattern | Driving/Combo specifications |
| Bezel Material | Billet Machined Aluminum specifications |
| Bracket Material | Stainless Steel |
| Brackets Included | Yes |
| Brightness (Lumens) | 38,900 (High); 32,440 (Low) specifications |
| Color | Black |
| Country Of Origin | USA |
| Depth (in.) | 4.29 dimensions |
| Description | Straight; Driving/Combo; Clear specifications |
| Height (in.) | 2.69 dimensions |
| Housing Color | Black specifications |
| Housing Material | Aircraft Grade Aluminum with Mil-Spec Hard Anodize specifications |
| Housing Type | Aircraft Grade Aluminum w/Mil-Spec Hard Anodize |
| IK10 Compliant | IK10 Compliant (Mechanical Impact Testing) |
| Length (in.) | 40 dimensions |
| Lens Color | Clear specifications |
| Lens Material | Hardcoated Polycarbonate specifications |
| Light Quantity | 1 specifications |
| Lighting Modes | High Beam/Low Beam specifications |
| Lighting Quantity | 24 specifications |
| Lighting Technology | LED specifications |
| Lighting Type | Forward Projecting specifications |
| Mfg Label | LED Light Kit |
| Mounting Hardware Description | Mounting Brackets specifications |
| Mounting Hardware Included | Yes specifications |
| Mounting Hardware Material | Stainless Steel specifications |
| Overvoltage Protection | Built-In specifications |
| Product Type | OnX6+ 40 Inch LED Light Bar specifications |
| Sold As | Each |
| Standards/Compliance (Durability) | Exceeds MIL-STD810G (Mil-Spec Testing) standards & complian |
| Standards/Compliance (Impact Resistance) | IK10 Compliant (Mechanical Impact Testing) standards & complian |
| Standards/Compliance (Water Resistance) | IP69K (Waterproof up to 9ft & Pressure Washable) standards & complian |
| Universal | Yes |
| Universal Or Specific | Universal specifications |
| UPC | 852156007071 |
| Waterproof Rating | IP69K Waterproof |
| Wattage (W) | 346 (High); 290 (Low) specifications |
| Weight (lbs.) | 15.05 dimensions |
| Wiring Harness Description | Hi-Low Dongle specifications |
| Wiring Harness Included | No specifications |
