Baja Designs

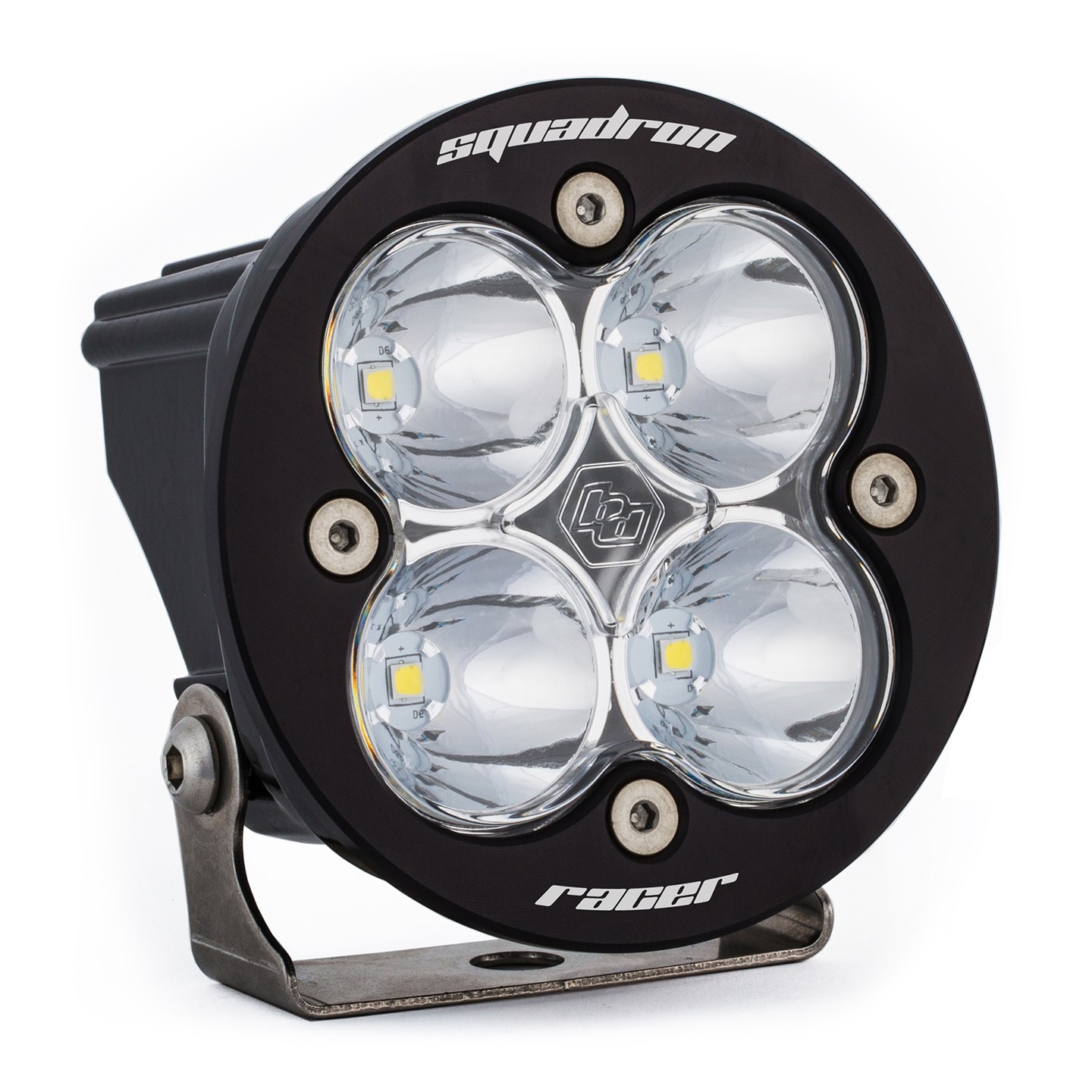

Squadron-R Racer Edition LED Light Pod (Racer Spot; Clear)

Name: Squadron-R Racer Edition LED Light Pod (Racer Spot; Clear)
Brand: Baja Designs
SKU: 132608471
Price: 274.95 USD
Availability: OutOfStock

Part Number 730001 (132608471)

$274.95

Out of stock

Description

The Baja Designs Squadron Racer Edition LED lights are meant for high-speed night driving where reaction time is paramount. Don’t let the compact size of these lights fool you, with our next generation LEDs offering 2,800 raw lumens at only 45.5W while making the Squadron Racer more efficient giving 81% greater distance over our prior generation model. The tight beam of the Squadron Racer is for those that drive near triple digits speeds, or need to see thousands of feet down the road illuminating Lighting Zone 5. Producing an even tighter beam pattern than our traditional spot offerings, the Squadron Racer Edition lights are recommended to be added to a well-balanced lighting package to avoid separation of spotlights due to the tight pattern. The sleek, black gloss aluminum housing offers enthusiasts the durability needed when traveling at higher speeds. Backed by our 30-Day Satisfaction Guarantee and Lifetime Limited Warranty for the ultimate in purchase protection. NOTE: This light does not come with a wiring harness. The applicable wiring harness for this light is 640117.

Features & benefits

Don’t let the compact size of these lights fool you, with our next generation LEDs offering 2,800 raw lumens at only 45
5W while making the Squadron Racer more efficient giving 81% greater distance over our prior generation model

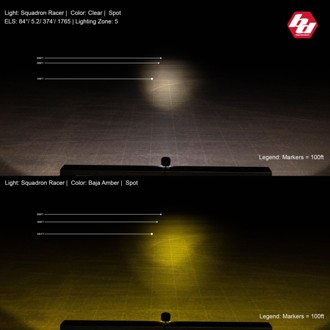

The tight beam of the Squadron Racer is for those that drive near triple digits speeds, or need to see thousands of feet down the road illuminating Lighting Zone 5
One Light Pod

Specifications

Amperage Rating (A)	3.3
Average Rated Life (hr.)	49,930
Beam Pattern	Racer Spot
Bezel Material	Powder Coated Cast Aluminum
Brightness (Lumens)	2800
Color	Clear
Country Of Origin	USA
Depth (in.)	2.77
Description	Round; Racer Spot; Clear
Height (in.)	3.07
Housing Color	Black
Housing Material	Hard Anodized and Powder Coated Cast Aluminum
Length (in.)	3.07
Lens Color	Clear
Lens Material	Hardcoated Polycarbonate
Light Quantity	1
Lighting Modes	Beam
Lighting Quantity	4
Lighting Technology	High Intensity Cree LED
Lighting Type	Forward Projecting
Mounting Hardware Included	Yes
Mounting Hardware Material	Stainless Steel
Overvoltage Protection	Built-In
Product Type	Squadron-R Racer Edition LED Light Pod
Standards/Compliance (Durability)	Exceeds MIL-STD810G (Mil-Spec Testing)
Standards/Compliance (Impact Resistance)	IK10 Compliant (Mechanical Impact Testing)
Standards/Compliance (Water Resistance)	IP69K (Waterproof up to 9ft & Pressure Washable)
Wattage (W)	45.54
Weight (lbs.)	0.75
Wiring Harness Included	No
