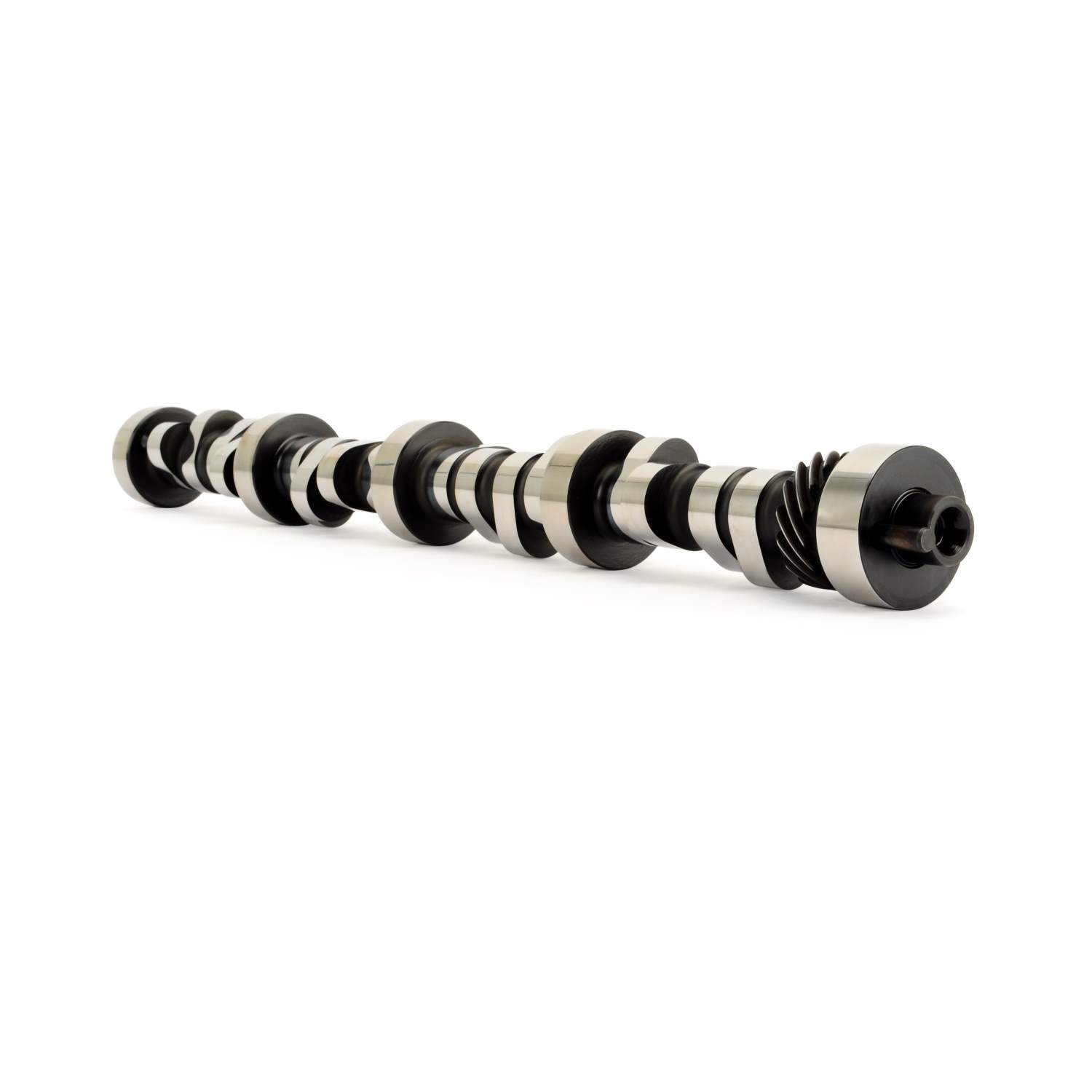

4-Pattern 253/263 IB, 255/265 OB Hydraulic Roller Cam for Ford 351W

Part Number 35-564-44 (132703483)

Package contents: 1 Each per Box

$682.95 FREE SHIPPING

Out of stock

FREE SHIPPING

Description

Hydraulic Roller: 4-Pattern 305QIO8 - Recommended for larger c.i.d. and high compression applications. 3500+ Stall.

Features & benefits

Melling offers a full line of OE replacement and high performance camshafts for cars, light duty, medium duty and heavy duty trucks. Melling listings include OEM applications to match the engine requirements desired including horsepower, economy and needed engine torque. Melling camshafts are developed, engineered, tested and manufactured with the highest standards of quality and materials.

Specifications

Advertised Inboard Exhaust Duration	317 dd
Advertised Outboard Exhaust Duration	319 dd
Advertised Outboard Intake Duration	307 dd
Amazon ASIN	B00CWZVA96
Assembly Lubricant Included	No
Barcode	00036584259756
Basic Operating RPM Range	3300-7,500 r3
C.A.R.B. E.O. Number	N/A
C.A.R.B. Exempt For On-Road Vehicles?	No
C.A.R.B. Exemption Reason	N/A
Cam Type	Hydraulic Roller
Camshaft Gear Attachment	1
Camshaft Material	Billet Steel
Camshaft Series	4-Pattern
Country Of Origin	USA
Dimensions	24.5" x 3" x 2.75"
Engine Family	Ford 351W 8 Cylinder (1969-1996)
Grind Number	305QIO8
Inboard Exhaust Duration At .050 Inch Lift	263 dd
Inboard Exhaust Valve Lift	0.622 in
Inboard Intake Duration At .050 Inch Lift	253 dd
Inboard Intake Valve Lift	0.638 in
Lifter Type	Hydraulic Roller
Lifters Included	No
Outboard Exhaust Duration At .050 Inch Lift	265 dd
Outboard Exhaust Valve Lift	0.622 in
Outboard Intake Duration At .050 Inch Lift	255 dd
Outboard Intake Valve Lift	0.638 in
Street Legal	Yes - Except CA
Usage	Street/Strip
Valve Springs Required	Yes
Weight	9.93 lbs

Warranty

12 Months
