Gates

1 15/32" x 48 9/16"

Part Number 47R4738 (132736652)

UPC: 770075810711

Package contents: 1 Each

Select vehicle for guaranteed fit

$179.37

In stockShips by 29th Oct

Description

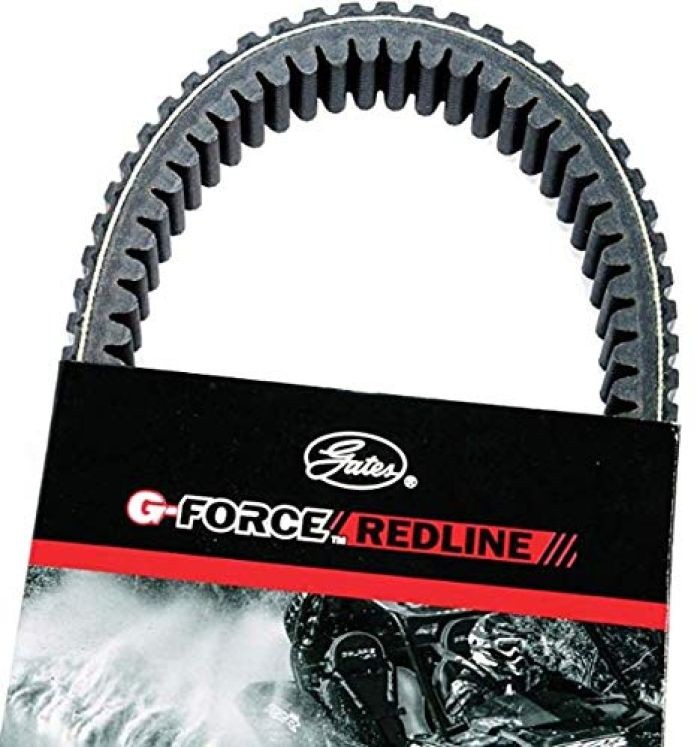

Gates G-Force RedLine CVT Belts are the first of a new generation of Continuously Variable Transmission (CVT) belts. Gates? innovative design results in better acceleration, higher top speeds, less speed ratio and energy loss in extreme off-road environments.

For the past century Gates has been powering progress as one of the world’s leading parts manufacturers in the automotive industry, working with virtually every Original Equipment Manufacturer worldwide to design products for new vehicles as they are being developed. These strong relationships together with Gates commitment to continuous innovation enable us to offer a complete line of OE quality products for the Aftermarket. From Timing Belts to Micro-V Belts, Tensioners and Hose, for both import and domestic vehicles, install with confidence, install Gates.

Fitment

This part fits the following vehicles.

2020-2027 Kawasaki KRF1000 Teryx KRX 1000
2025-2027 Kawasaki KRF1000 Teryx KRX 1000 Blackout Edition
2021, 2023-2027 Kawasaki KRF1000 Teryx KRX 1000 eS
2025 Kawasaki KRF1000 Teryx KRX 1000 Lifted Edition
2026-2027 Kawasaki KRF1000 Teryx KRX 1000 Rock Edition
2021-2024 Kawasaki KRF1000 Teryx KRX 1000 Special Edition
2027 Kawasaki KRF1000 Teryx KRX 1000 TR
2021-2025 Kawasaki KRF1000 Teryx KRX 1000 Trail Edition
2026 Kawasaki KRT1000 Teryx4 H2
2026 Kawasaki KRT1000 Teryx4 H2 Deluxe eS
2026 Kawasaki KRT1000 Teryx5 H2 Deluxe eS
2025-2027 Kawasaki KRT1000 Teryx KRX 4 1000
2025-2027 Kawasaki KRT1000 Teryx KRX 4 1000 Blackout Edition
2023-2027 Kawasaki KRT1000 Teryx KRX 4 1000 eS
2022-2024 Kawasaki KRT1000 Teryx KRX 4 1000 eS Special Edition
2025 Kawasaki KRT1000 Teryx KRX 4 1000 Lifted Edition
2023-2024 Kawasaki KRT1000 Teryx KRX 4 1000 SE
2027 Kawasaki KRT1000 Teryx KRX 4 1000 TR
2020 Kawasaki KRX1000 Teryx
2021-2024 Yamaha MM8 Mountain Max LE 154
2022-2024 Yamaha MM8 Mountain Max LE 154 SL
2021-2024 Yamaha MM8 Mountain Max LE 165
2023-2025 Yamaha TR8 Transporter 800

Features & benefits

Improved durability, crack- and wear-resistant means a longer-lasting, higher-performance power transmission belt for the most demanding applications
Optimized, patented Ethylene Elastomeric (EE) compound maximizes axial stiffness enabling belts to run at higher continuous torques or loads
Tested under extreme conditions in controlled environments as well as on race vehicles
Greater heat resistance and recovery, even under severe duty cycles

Specifications

Angle	29
Belt Material	EPDM
Bottom Material	Yes
Color	Black
Construction	Double Notched
Cord Material	Aramid
Country Of Origin	USA
Cross Section Designation	RVS-R
Grade Type	OE Improved
Notched	Yes
Outside Circumference	1233 mm
Pitch Length	1203 mm
Pitch Width	35 mm
Thickness	15.9 mm
Top Width	37 mm
Type	Power Sport Specialty High Performance CVT Belt
