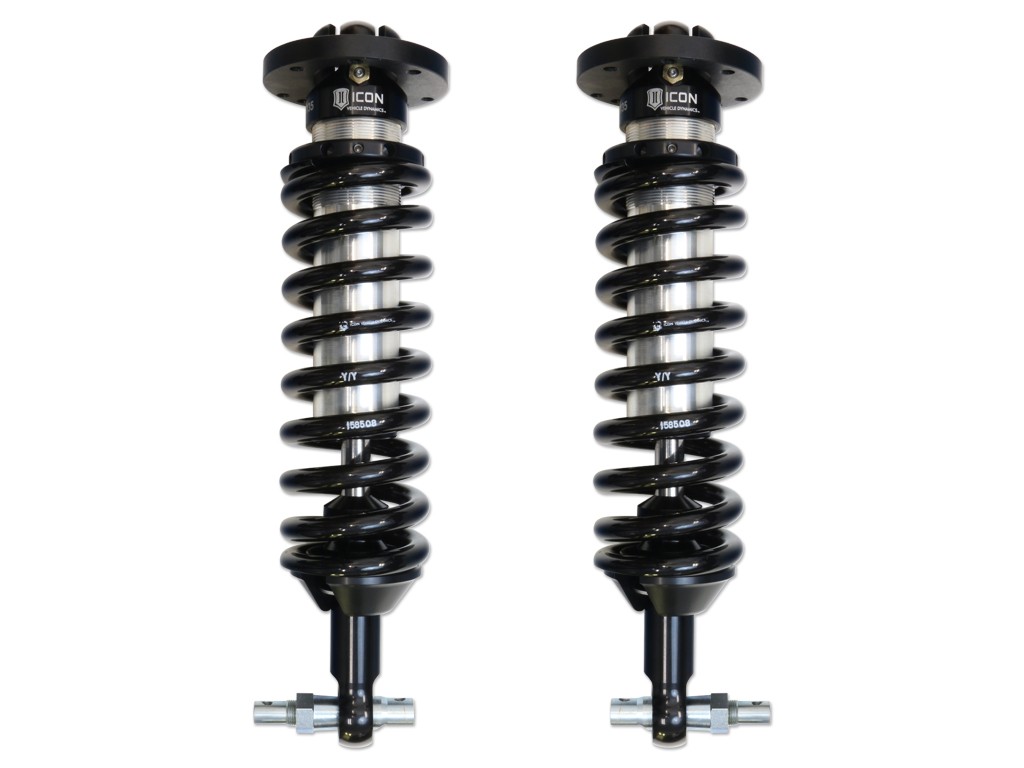

ICON 2007-18 GM 1500, 1-3" Lift, Front, 2.5 VS Coilover Kit
Description
These coil-overs are valved specifically for the new body style (GMT 900 Platform) Chevrolet and GMC half ton, 2WD and 4WD applications. They not only drastically improve the off road characteristics of the vehicle, but increase the on road handling and performance as well. These shocks add an additional inch of wheel travel when used in conjunction with an ICON Vehicle Dynamics Arm (PT# 78600). They also offer an additional amount of lift height compared to our standard travel coil-over shocks.
ICON Vehicle Dynamics specializes in performance suspension components, shocks, and accessories for today’s most popular trucks & SUVs. Since 2008, ICON has been developing products that redefine the limits of what a “stock” vehicle is capable of. ICON is part of a family of manufacturing companies that includes state of the art machining, laser cutting, and metal forming processes. This unique situation allows ICON to develop products that are at the forefront of technology quickly and efficiently, while maintaining a standard of quality unrivaled in the industry.
Fitment
This part fits the following vehicles.
- 2007-2018 Chevrolet Silverado 1500
- 2019 Chevrolet Silverado 1500 LD
- 2014-2020 Chevrolet Suburban
- 2007-2014 Chevrolet Suburban 1500
- 2007-2020 Chevrolet Tahoe
- 2007-2018 GMC Sierra 1500
- 2019 GMC Sierra 1500 Limited
- 2007-2020 GMC Yukon
- 2015-2020 GMC Yukon XL
- 2007-2014 GMC Yukon XL 1500
Features & benefits
- Less body-roll than stock truck
- 2.5" Diameter shock Body
- Lifetime guarantee on coil-springs
- Clears 33" Tall Tires
- Internal Nitrogen Reservoir for Compact Design and Optimum Performance
- OEM Wheels & Tires Fitment: Yes
- Recommended Aftermarket Wheels: ICON Alloys - 17x8.5 with 4.75” Backspace / 0mm Offset
- Recommended Aftermarket Wheels: ICON Alloys - 18x9 with 5” Backspace / 0mm Offset
- Recommended Aftermarket Wheels: ICON Alloys - 20x9 with 5” Backspace / 0mm Offset
- TECH NOTE: Not compatible with models equipped Magnetic Ride Control
- TECH NOTE: Not compatible with Hybrid models
Specifications
| Active Or Passive Suspension | Passive |
|---|---|
| Adjustable Compression | No |
| Adjustable Damping | NO |
| Adjustable Rebound | No |
| Adjustable Ride Height | Yes |
| Assembled | Yes |
| Body Diameter | 2.5 |
| Coil Over Springs Included | Yes |
| Compressed Length | 14.97 |
| Country Of Origin | USA |
| Cylinder Color | Silver |
| Cylinder Finish | Cadmium Plated |
| Cylinder Material | Steel |
| Damping Type | Oil |
| Dust Shield Included | No |
| Extended Length | 19.83 |
| Front Spring Rate | 700 |
| Gas Charged | yes |
| Grade Type | Performance |
| Includes Bump Stop | Yes |
| Internal Construction Type | Single Tube |
| Lower Mount Type | BAR PIN |
| Material | Aluminum |
| Maximum Lift | 3 |
| Maximum Ride Height Raising Distance | 3 |
| Minimum Lift | 1 |
| OEM Wheels & Tires Fitment | Yes |
| Recommended Aftermarket Tires | 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required.) |
| Recommended Aftermarket Wheels | ICON Alloys - 17x8.5" w/ 4.75” Backspace / 0mm Offset |
| Remote Reservoir | NO |
| Reservoir Style | Internal |
| Self-Leveling | No |
| Service Parts | 257306 - 7/8 SHAFT 9.65 OAL, 5.40 TRAVEL |
| Shaft Diameter | 0.875 |
| Shock Absorber Body End Measuring Point | Top of Upper Mount Plate |
| Shock Absorber Rod End Measuring Point | Flat on Bar Pin |
| Spring Color | Black |
| Spring Material | Steel |
| Spring Rate Type | Linear |
| Travel Length | 4.87 |
| Upper Mount Type | Mounting Plate |
| Valving Type | Digressive |
Warranty
1 Year
