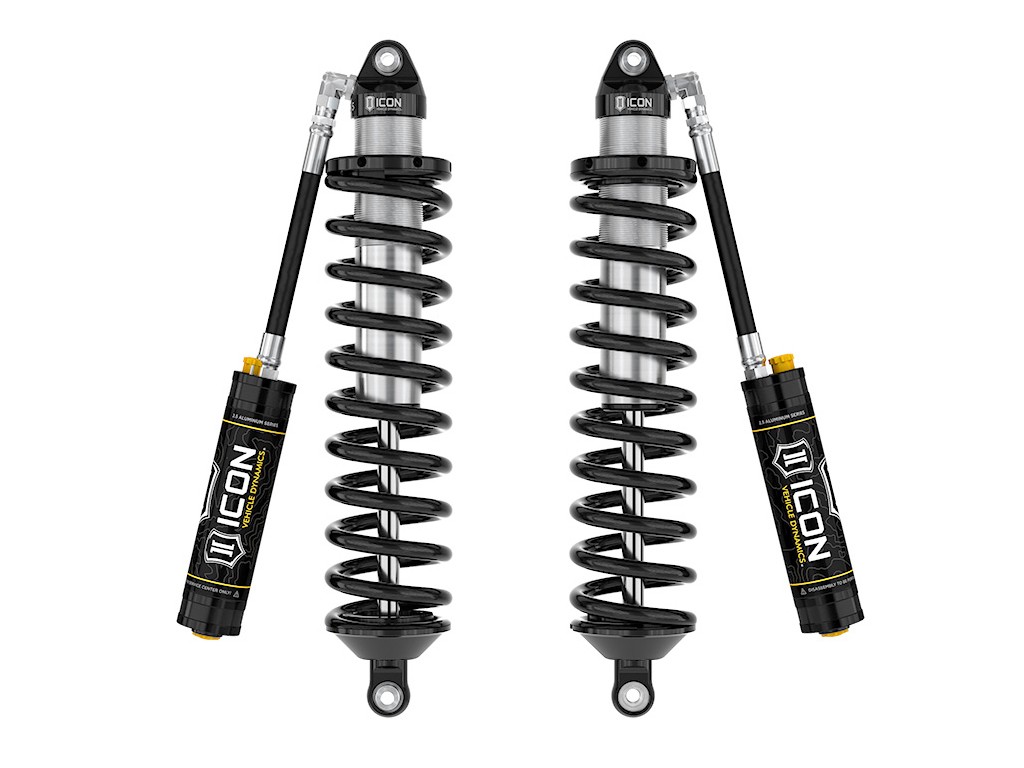

ICON 2008-2016 Ford F-250/F-350 4WD, Diesel, Front, 7-9" Lift, V.S. 2.5 Series Coilover Conversion Kit for Fabricated Hoop, Remote Reservoir w/ CDCV

Name: ICON 2008-2016 Ford F-250/F-350 4WD, Diesel, Front, 7-9" Lift, V.S. 2.5 Series Coilover Conversion Kit for Fabricated Hoop, Remote Reservoir w/ CDCV
Brand: ICON Vehicle Dynamics
SKU: 166652579
Price: 2097.10 USD
Availability: OutOfStock

Part Number 61700C (166652579)

Select vehicle for guaranteed fit

$2,097.10

Out of stock

Description

The ICON Vehicle Dynamics Coilover Conversion System transforms the front suspension of 2008-2016 Ford Super Duty trucks by replacing the factory coil spring arrangement with a high-performance, bolt-in coilover system designed for use with ICON fabricated shock hoops. Ride height adjustable coilovers provide 7-9" of front lift, delivering improved suspension tuning capability along with reduced body roll and significantly enhanced on- and off-road ride dynamics. Vehicle-specific shock valving is engineered to provide exceptional ride quality and precise control, while remote reservoirs increase shock oil capacity and dissipate heat to maintain consistent damping performance during extended off-road use. ICON's exclusive Compression Damping Control Valves are included for precisely dialing in your suspension performance. CDCV controls fluid flow under compression, allowing you to achieve the perfect tune whether driving on the street, slow-crawling through the rocks or mobbing across the desert at full throttle. The corrosion-resistant CAD plated coilover shock bodies, 7/8" shafts for exceptional strength, and ICON-engineered dual-rate coil springs are backed by a lifetime guarantee against sagging or breakage. High-strength FK rod end bearings minimize deflection while providing long-lasting durability in demanding environments. Designed with future performance upgrades in mind, the coilover conversion also allows for the addition of a secondary shock, making it an ideal foundation for high-performance Super Duty suspension systems.

ICON Vehicle Dynamics specializes in performance suspension components, shocks, and accessories for today’s most popular trucks & SUVs. Since 2008, ICON has been developing products that redefine the limits of what a “stock” vehicle is capable of. ICON is part of a family of manufacturing companies that includes state of the art machining, laser cutting, and metal forming processes. This unique situation allows ICON to develop products that are at the forefront of technology quickly and efficiently, while maintaining a standard of quality unrivaled in the industry.

Fitment

This part fits the following vehicles.

2008-2016 Ford F-250 Super Duty
2008-2016 Ford F-350 Super Duty

Features & benefits

Bolt-in system fits in ICON fabricated shock hoops
Ride height adjustable coilovers provide 7-9" of front lift over stock
Decreased body roll and improved on and off-road ride dynamics
Vehicle-specific shock valving provides unparalleled ride quality and control
Remote reservoirs maintain cooler operating temperatures during extended off-road use
ICON CDCV equipped for 10 settings of external compression damping adjustment
Shocks are fully rebuildable and revalveable
Coilover conversion allows for addition of secondary shock
Corrosion resistant CAD plated coilover shock body with 7/8" shaft
ICON engineered dual rate coil springs guaranteed for life against sagging or breakage
FK Rod End bearings for extended longevity and minimal deflection
Factory Wheels & Tires Fitment: Yes
Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5.00” Backspace / 6mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.25” Backspace / 6mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.25” Backspace / 6mm Offset
APPLICATION NOTE #1: Only fits 4WD models
APPLICATION NOTE #6: Springs are rated for diesel engines
APPLICATION NOTE #115: Lift heights based on 4WD Crew Cab diesel
APPLICATION NOTE #120: Secondary shock options available, contact ICON for more details.

Specifications

Active Or Passive Suspension	Passive
Adjustable Compression	Yes
Adjustable Damping	Yes
Adjustable Rebound	No
Adjustable Ride Height	Yes
Assembled	Yes
Body Diameter	2.5
Coil Over Springs Included	Yes
Compressed Length	16.49
Country Of Origin	USA
Cylinder Color	Silver
Cylinder Finish	Cadmium Plated
Cylinder Material	Steel
Damping Adjustment Type	Manual
Damping Type	Oil
Dust Shield Included	No
Extended Length	25.98
Front Spring Rate	390
Gas Charged	yes
Grade Type	Performance
Includes Bump Stop	Yes
Internal Construction Type	Single Tube
Lower Mount Type	Eyelet
Material	Aluminum
Maximum Lift	9
Maximum Ride Height Raising Distance	9
Minimum Lift	7
OEM Wheels & Tires Fitment	Yes
Recommended Aftermarket Tires	35" x 12.50" (Larger Tires May Fit but Fender Trimming and Modifications will be Required)
Recommended Aftermarket Wheels	ICON Alloys - 17x8.5" w/ 5.00” Backspace / 6mm Offset
Remote Reservoir	Yes
Reservoir Style	Remote
Self-Leveling	No
Service Parts	252002 - UNIVERSAL SPANNER WRENCH (2.0/2.5/3.0)
Shaft Diameter	0.875
Shock Absorber Body End Measuring Point	Center of Eylet
Shock Absorber Rod End Measuring Point	Center of Eylet
Spring Color	Black
Spring Material	Steel
Spring Rate Type	Progressive Dual Rate
Travel Length	9.49
Upper Mount Type	Eyelet
Valving Type	Digressive

Videos and guides

Magnuson-Moss Warranty Act

Legally, a vehicle manufacturer cannot void the warranty on a vehicle due to an aftermarket part unless they can prove that the aftermarket part caused or contributed to the failure in the vehicle (per the Magnuson Moss Warranty Act (15 U.S.C. 2302(C)).
