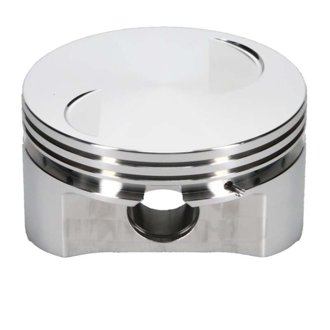

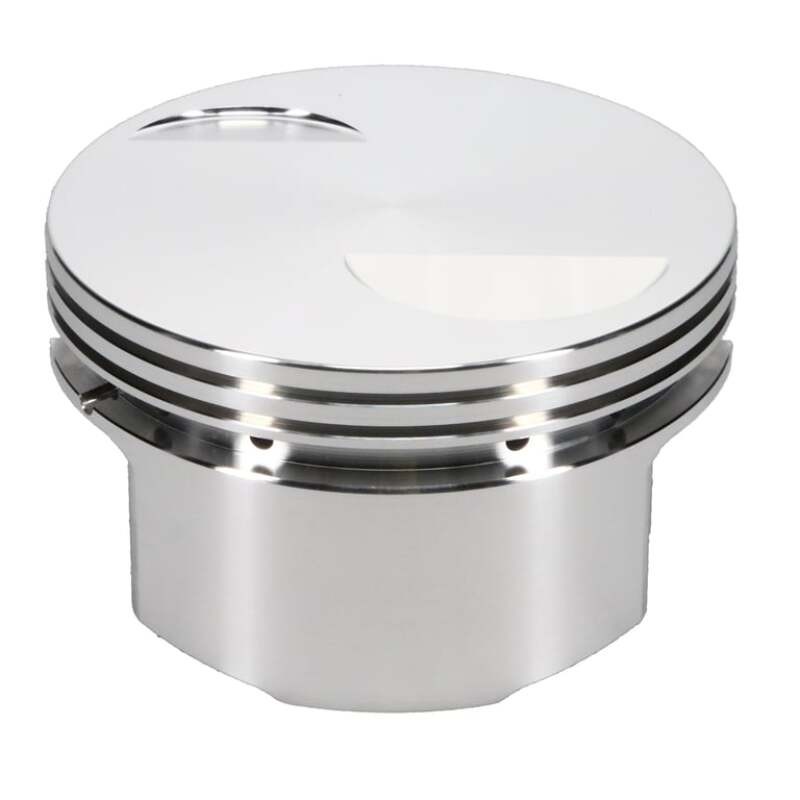

Piston Set, 2618, Flat Top, 3.820 Bore, 1.090 CD, 0.927 Pin, Set of 4.

Part Number 118560 (132583004)
Package contents: 1 Each per Box
Select vehicle for guaranteed fit
MADE IN USA
$641.99 FREE SHIPPING

Out of stock
FREE SHIPPING

Description

JE Auto forged pistons from JE Pistons are the result of over 75 years of industry leading experience extended to our range of premium forged pistons for Ford Pinto 2300cc Engines JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From drift track to drag strip, JE Pistons’ performance is proven in victory lane time and time again. Equipped with the following custom level features

Features & benefits

  • Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applications
  • Designed specifically for Ford Pinto 2300cc Engines To provide optimized performance durability
  • Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
  • Includes high-quality wrist pins, and locks
  • Made 100% in the USA
  • Pin Fit: The pin bore is precision honed to attain an exact pin clearance. Clearances typically range from .0003 to .0010 between the wrist pin and pin bore.

Specifications

2nd Groove Width 0.064 in
3D Undercrown Milling No
Accumulator Groove No
Anodize Top Ring Groove No
Barcode 00193564035011
Bore Diameter 3.820 in
Combo 2 No
Compression Height 1.090 in
Connecting Rod Length 5.700 IN
Contact Reduction No
Country Of Origin USA
Cylinder Head PINTO
Dimensions 10" x 5" x 5"
Double Pin Oilers No
DVGP No
Econo Undercrown Milling No
EN Plating No
Engine Pinto
Engine Displacement 302 SB
Engine Stroke 3.126 in
Engine Type ICE
Exhaust Angle 23
Exhaust Depth ^.063
Forging Type Round
Gas Distribution No
Intake Angle 35
Intake Depth .285 in
Intake Diameter 2.450 in
Lateral Gas Ports No
Make Ford
Mill Undercrown No
Oil Groove Width 0.21800 in
Oil Rail Support Required Part Number Yes
Oil Rail Support Required. Part Number: 3812-173
Oil Ring Thickness 0.218 in
Pin Fit Yes
Piston Average Weight 349 gr
Piston Head Type Flat
Piston Material 2618
Piston Quantity 4
Piston Series JE Pistons
Piston To Wall Clearance -0.004 in
Piston Volume -2.00 cc
Product Market Domestic
Product Type Engine Piston Kit
Ring Set - Recommended J100F1-3820-5
Ring Set Included Yes
Ring Set Part Number J100F1-3820-5
Second Compression Ring Thickness 0.0640 in
Skirt Coat No
Smooth Crown Finish No
Thermal Crown No
Top Compression Ring Thickness 0.0640 in
Top Groove Width 0.06400 in
Tuff Skirt No
Ultra Dome No
Ultra Groove No
Ultra Groove Plus Gas Port No
Vertical Gas Ports No
Weight 5.5 lbs
Wrist Pin Length 2.500 in
Wrist Pin Material 5115 Low Carbon Steel, Case Hardened
Wrist Pin Outer Diameter 0.927 in
Wrist Pin Wall Thickness 0.130 in

Warranty

30 Months

About JE Pistons

JE pistons are all designed, forged, and machined in-house, allowing control over every step of the piston-making process. JE Pistons 7+ decades of experience in high-level racing has led to offering premium racing features, including full billet construction, EN plating, and purpose-designed coatings, to name a few.
