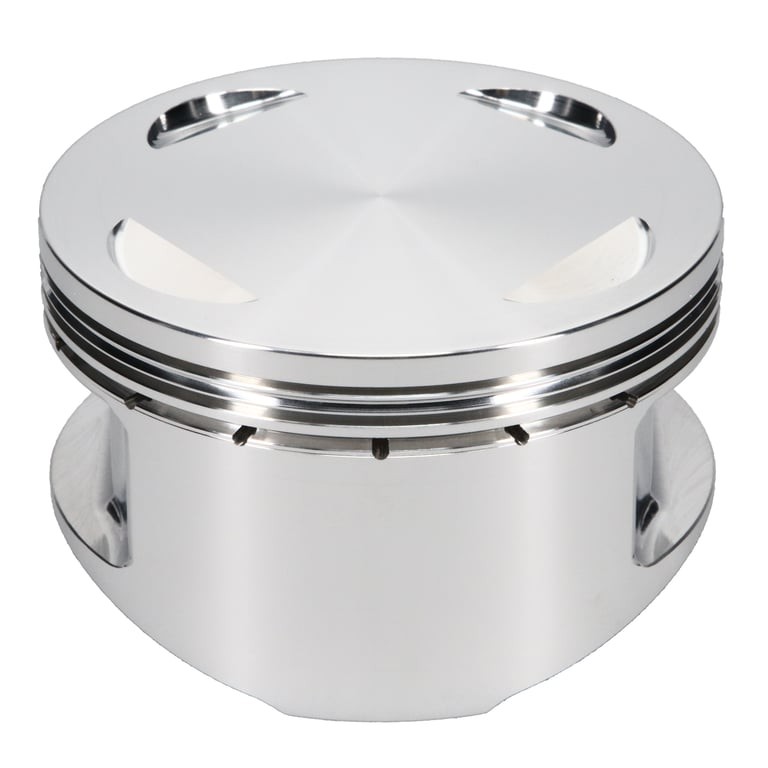

Offroad Series 1993-2025 Honda XR 650L Piston Kit

Description

As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for dirt bike and other off-road motorcycle engines. Engineered, forged and machined 100 percent in the USA, JE Pistons are designed for each specific engine and riding application to provide the ultimate combination of durability and performance. From the motocross track to the trail and everything in between, JE Pistons' performance is proven with every handful of throttle and wave of the checkered flag. Equip your bike with the best in forged pistons.

JE pistons are all designed, forged, and machined in-house, allowing control over every step of the piston-making process. JE Pistons 7+ decades of experience in high-level racing has led to offering premium racing features, including full billet construction, EN plating, and purpose-designed coatings, to name a few.

Features & benefits

• Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
• Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applications
• Designed specifically for each engine and use application to provide optimized performance durability
• Includes high-quality wrist pins, locks, and JE Pro Seal premium piston rings
• Race-inspired two-ring design promotes quick revving and throttle response for noticeable power
• Designed specifically for Honda XR 650L Engines to provide optimized performance durability
• Made 100% in the USA
• Accumulator Groove: A specialty groove between the top and second ring provides added volume for blow-by gases. This helps reduce pressure between the rings, improving top ring seal and minimizing ring flutter at high cylinder pressures.
• Pin Fit: The pin bore is precision honed to attain an exact pin clearance. Clearances typically range from .0003 to .0010 between the wrist pin and pin bore.

Specifications

Warranty

30 Months

Magnuson-Moss Warranty Act

Legally, a vehicle manufacturer cannot void the warranty on a vehicle due to an aftermarket part unless they can prove that the aftermarket part caused or contributed to the failure in the vehicle (per the Magnuson Moss Warranty Act (15 U.S.C. 2302(C)).

California residents

WARNING: This product can expose you to chemicals including nickel, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov.

Carb Status

California carb status to be completed
