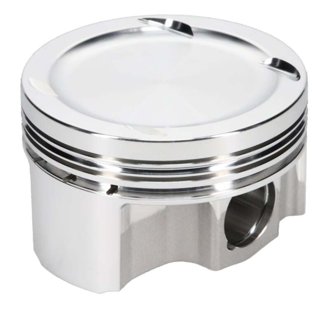

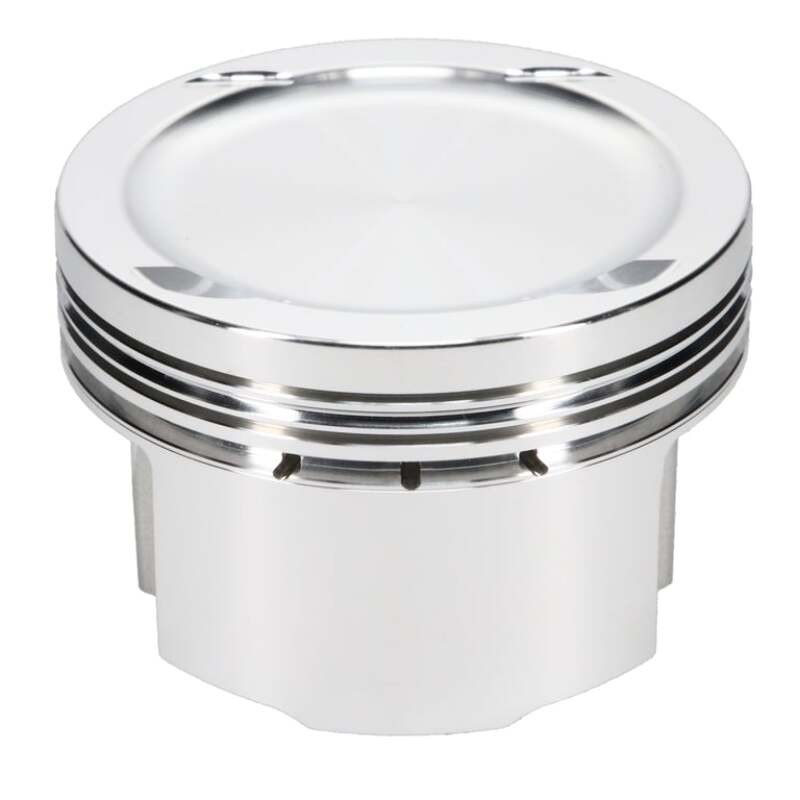

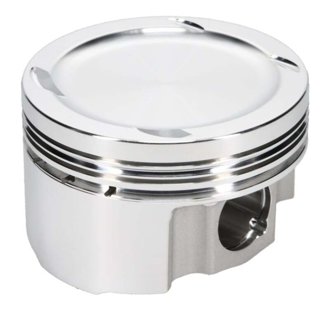

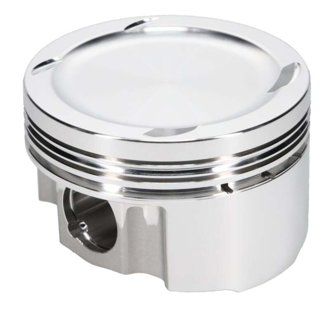

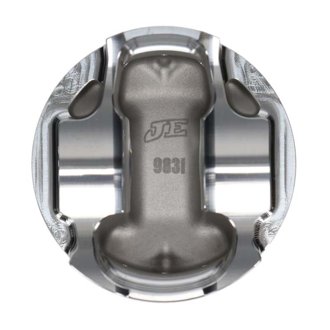

Piston Set, 2618, Inv Dome/Dish, 3.228 Bore, 1.291 CD, 0.866 Pin, Set of 5.

Part Number 312403 (132585665)

UPC: 193564037602

Package contents: 1 Each per Box

$1,124.99 FREE SHIPPING

Out of stock

FREE SHIPPING

Description

Sport Compact, Import and European forged pistons from JE Pistons are the result of over 75 years of industry leading experience extended to our range of premium forged pistons for Fiat 2.0L Turbo 20v Engines. JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From drift track to drag strip, JE Pistons’ performance is proven in victory lane time and time again. Equipped with the following custom level features

Features & benefits

Forged in the USA using 2618 aluminum, yielding tensile strength and minimal thermal expansion
Designed specifically for Fiat 2.0L Turbo 20v Engines. To provide optimized performance durability
Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
Includes high-quality wrist pins, locks, and JE Pro Seal premium piston rings
Made 100% in the USA
Accumulator Groove: A specialty groove between the top and second ring provides added volume for blow-by gases. This helps reduce pressure between the rings, improving top ring seal and minimizing ring flutter at high cylinder pressures.
Pin Fit: The pin bore is precision honed to attain an exact pin clearance. Clearances typically range from .0003 to .0010 between the wrist pin and pin bore.

Specifications

2nd Groove Width	0.048 in
3D Undercrown Milling	No
Accumulator Groove	Yes
Anodize Top Ring Groove	No
Bore Diameter	82.00 mm
Combo 2	No
Compression Height	1.291 in
Compression Ratio	0.33333333333333
Connecting Rod Length	5.709 IN
Contact Reduction	No
Country Of Origin	USA
Cylinder Head	FIAT COUPE 2.0
Double Pin Oilers	No
DVGP	No
Econo Undercrown Milling	No
EN Plating	No
Engine	2.0L Turbo 20V
Engine Stroke	2.978 in
Engine Type	ICE
Exhaust Angle	21
Exhaust Depth	.045
Exhaust Diameter	1.100
Forging Type	FSR
Gas Distribution	No
Intake Angle	25
Intake Depth	.105 in
Intake Diameter	1.250 in
Lateral Gas Ports	No
Make	Fiat
Mill Undercrown	No
Oil Groove Width	0.11100 in
Oil Ring Thickness	0.111 in
Pin Fit	Yes
Piston Average Weight	294 gr
Piston Head Type	Dish
Piston Material	2618
Piston Quantity	5
Piston Series	JE Pistons
Piston To Wall Clearance	-0.004 in
Piston Volume	-8.00 cc
Product Market	European
Product Type	Engine Piston Kit
Ring Set - Recommended	HG1001-3228
Ring Set Included	Yes
Ring Set Part Number	HG1001-3228
Second Compression Ring Thickness	0.0480 in
Skirt Coat	No
Smooth Crown Finish	No
Thermal Crown	No
Top Compression Ring Thickness	0.0400 in
Top Groove Width	0.04000 in
Tuff Skirt	No
Ultra Dome	No
Ultra Groove	No
Ultra Groove Plus Gas Port	No
Vertical Gas Ports	No
Wrist Pin Length	2.250 in
Wrist Pin Material	5115 Low Carbon Steel, Case Hardened
Wrist Pin Outer Diameter	0.866 in
Wrist Pin Wall Thickness	0.150 in

Warranty

30 Months
