NGK Authorized Dealer

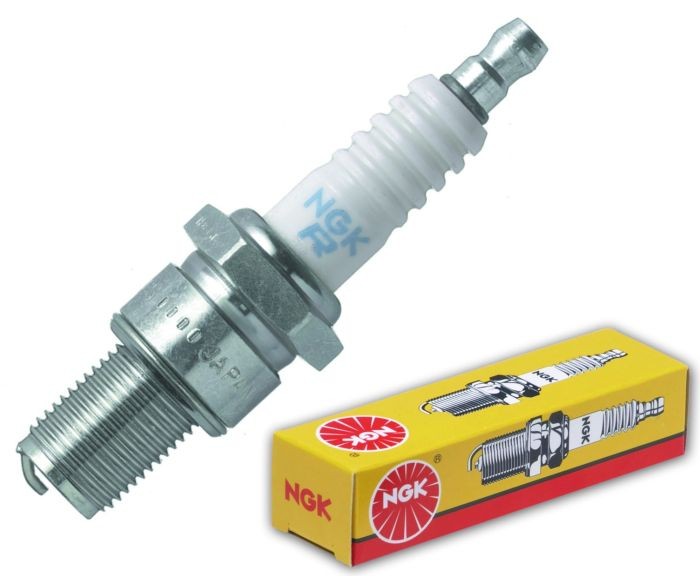

OE Series Standard Nickel Spark Plug: Low Angle Tip, BR10ECS SOLID

Part Number 5940 (132648608)

UPC: 87295059401

Package contents: 1 Each

Select vehicle for guaranteed fit

$8.76

In stockShips by 29th Oct

Description

NGK Standard spark plugs (in the iconic NGK 'yellow box' packaging) are a proven OE cornerstone and technology customers have relied on for decades. Engineered specifically for OE applications, NGK Standard spark plugs provide OE quality nickel alloy reliable performance and design. NGK's legendary high grade alumina silicate ceramic creates a stronger insulator for optimal dielectric performance, while triple gasket sealing prevents combustion gas leakage. Solid 98% pure copper core offers superior heat dissipation, conductivity and ultra wide heat ranges. Trivalent metal plating ensures superior anti-corrosion and anti-seizing properties.

Fitment

This part fits the following vehicles.

2010-2011 Ski-Doo Grand Touring 600 Sport
2008-2009 Ski-Doo GSX 500SS Sport
2010 Ski-Doo GSX 600 Sport
2008-2009 Ski-Doo GTX 500SS Sport
2008-2009 Ski-Doo MX Z 500 TNT
2008-2009 Ski-Doo MX Z 500 Trail
2010-2011 Ski-Doo MX Z 600 Sport
2010-2011 Ski-Doo MX Z 600 TNT
2010 Ski-Doo Summit 600 Sport
2011 Ski-Doo Summit Sport
1998 Yamaha SRX600
1998 Yamaha SRX700

Features & benefits

TRIVALENT METAL PLATING: Delivers superior anti-corrosion and anti-seizing properties, ensuring ease of installation and removal
Pure alumina silicate ceramic insulator provides superior strength and better heat transfer
Trivalent metal plating for superior anti-corrosion and anti-seizing properties
Corrugated ribs prevent flashover
Copper core aids in heat removal
Triple seals prevent leakage
RECOMMENDED USAGE: Best for vehicles with OE nickel alloy plugs, not recommended on vehicles with factory precious metal plugs
SOLID COPPER CORE: 98% pure copper core offers superior heat dissipation, conductivity and ultra wide heat ranges
ACTUAL OE or EQUIVALENT DESIGN: OEM quality construction nickel alloy center electrode provides consistent performance
COLD-ROLLED THREADS: Prevents cross-threading and damage to cylinder heads
NGK's OE CERAMIC TECHNOLOGY: High grade alumina silicate ceramic creates a stronger insulator for optimal dielectric performance

Specifications

Center Electrode Core Material	Copper
Center Electrode Design	Standard
Center Electrode Insulator Tip Projection	0.3 mm
Center Electrode Projection	Non-Projected
Center Electrode Tip Material	Nickel
Color	Nickel
Country Of Origin	JP
Electrical Terminal Type	Non-Removable Nut
Grade Type	Standard Replacement
Ground Configuration	Slant
Ground Electrode Core Material	Nickel
Ground Electrode Quantity	1
Ground Electrode Tip Design	Pin Type
Ground Electrode Tip Material	Nickel
Hex Size	13/16"
Insulator Height	56.5 mm
Insulator Material	Ceramic
Manufacturer Heat Range	10
Metallurgy	Copper
Part Number	BR10ECS SOLID
Pre-Gap Size	0.8 mm
Reach	19.0 mm
Resistance	5000.0 82
Resistor Type	Yes
Seat Type	Flat
Service Number	BR10ECS SOLID
Short Style Spark Plug	No
Skirt	No
Skirt Length	0.0 mm
Street Legal	Yes
Thread Size	M14 - 1.25
Thread Type Standard	Metric
Washer Type	Crush
Washer(s) Included	Yes
