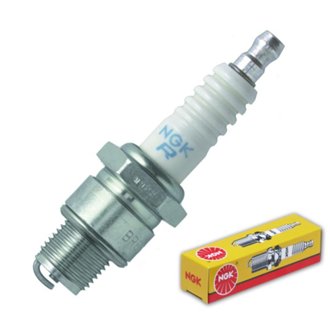

BR8HS Nickel Spark Plug Removable Terminal 0.7MM Gap

Part Number 4322 (132648396)

UPC: 87295043226

Package contents: 1 Each

Select vehicle for guaranteed fit

Color

Nickel

Nickel −$0.36 In stock
Tan −$0.94 In stock

$3.15

In stockShips by 9th Nov

Description

NGK Standard spark plugs (in the iconic NGK 'yellow box' packaging) are a proven OE cornerstone and technology customers have relied on for decades. Engineered specifically for OE applications, NGK Standard spark plugs provide OE quality nickel alloy reliable performance and design. NGK's legendary high grade alumina silicate ceramic creates a stronger insulator for optimal dielectric performance, while triple gasket sealing prevents combustion gas leakage. Solid 98% pure copper core offers superior heat dissipation, conductivity and ultra wide heat ranges. Trivalent metal plating ensures superior anti-corrosion and anti-seizing properties.

Fitment

This part fits the following vehicles.

BMW

1960-1969 R50/2

Gas Gas

1992 Enducross 50
2001, 2004-2006 Enducross EC Boy 50

Honda

1982 MB5

Hyosung

2008-2009 SF50B/Prima
2008-2009 SF50R/Rally

Kawasaki

1968-1970 F3 Bushwhacker
1971-1973 F6
1971-1972 F8
1969-1974 G3SS
1969-1970 G3TR
1972-1975 G5
1975-1979 KD125
1976-1977 KE100
1976-1979 KE125
1976-1978 KE175
1976 KH100
1976-1977 KH400
1974-1975 KS125
1979 KX80
1974-1975 S3 Mach II

KTM

1998-1999 50 Mini Adventure
1996 50 SXR Pro Jr
1996 50 SXR Pro Sr

Suzuki

1980-1983 RM60
1973-1977 TC100
1972-1977 TC125
1973-1977 TS100
1976-1977 TS125

Yamaha

1970-1971 CS3
1985-1987 CV80 Riva 80
1998-2001 CW50 Zuma II
1969-1970 DS6
1972 DS7
1974-1975 DT100
1970-1971 HS1
1970-1971 HT1
1972 LT2
1972 LT2M
1973 LT3
1973 LTMX
1969 R3
1970-1972 R5
1975 RD125
1974-1975 RD200
1973-1975 RD250
1973-1975 RD350
1975-1976 RS100
1983 RX50
1987 YSR50
1975 YZ80

Features & benefits

SOLID COPPER CORE: 98% pure copper core offers superior heat dissipation, conductivity and ultra wide heat ranges
RECOMMENDED USAGE: Best for vehicles with OE nickel alloy plugs, not recommended on vehicles with factory precious metal plugs
COLD-ROLLED THREADS: Prevents cross-threading and damage to cylinder heads
TRIVALENT METAL PLATING: Delivers superior anti-corrosion and anti-seizing properties, ensuring ease of installation and removal
NGK's OE CERAMIC TECHNOLOGY: High grade alumina silicate ceramic creates a stronger insulator for optimal dielectric performance
ACTUAL OE or EQUIVALENT DESIGN: OEM quality construction nickel alloy center electrode provides consistent performance
Pure alumina silicate ceramic insulator provides superior strength and better heat transfer
Trivalent metal plating for superior anti-corrosion and anti-seizing properties
Corrugated ribs prevent flashover
Copper core aids in heat removal
Triple seals prevent leakage

Specifications

Center Electrode Core Material	Copper
Center Electrode Design	Standard
Center Electrode Insulator Tip Projection	1.0 mm
Center Electrode Projection	Non-Projected
Center Electrode Tip Material	Nickel
Color	Nickel
Country Of Origin	JP
Electrical Terminal Type	Removable Nut
Grade Type	Standard Replacement
Ground Configuration	J-Gap
Ground Electrode Core Material	Nickel
Ground Electrode Quantity	1
Ground Electrode Tip Design	Standard
Ground Electrode Tip Material	Nickel
Hex Size	13/16"
Insulator Height	56.3 mm
Insulator Material	Ceramic
Manufacturer Heat Range	8
Metallurgy	Copper
Part Number	BR8HS
Pre-Gap Size	0.7 mm
Reach	12.7 mm
Resistance	5000.0 82
Resistor Type	Yes
Seat Type	Flat
Service Number	BR8HS
Short Style Spark Plug	No
Skirt	No
Skirt Length	0.0 mm
Street Legal	Yes
Thread Size	M14 - 1.25
Thread Type Standard	Metric
Washer Type	Crush
Washer(s) Included	Yes
