5-Point Harness Set

Description

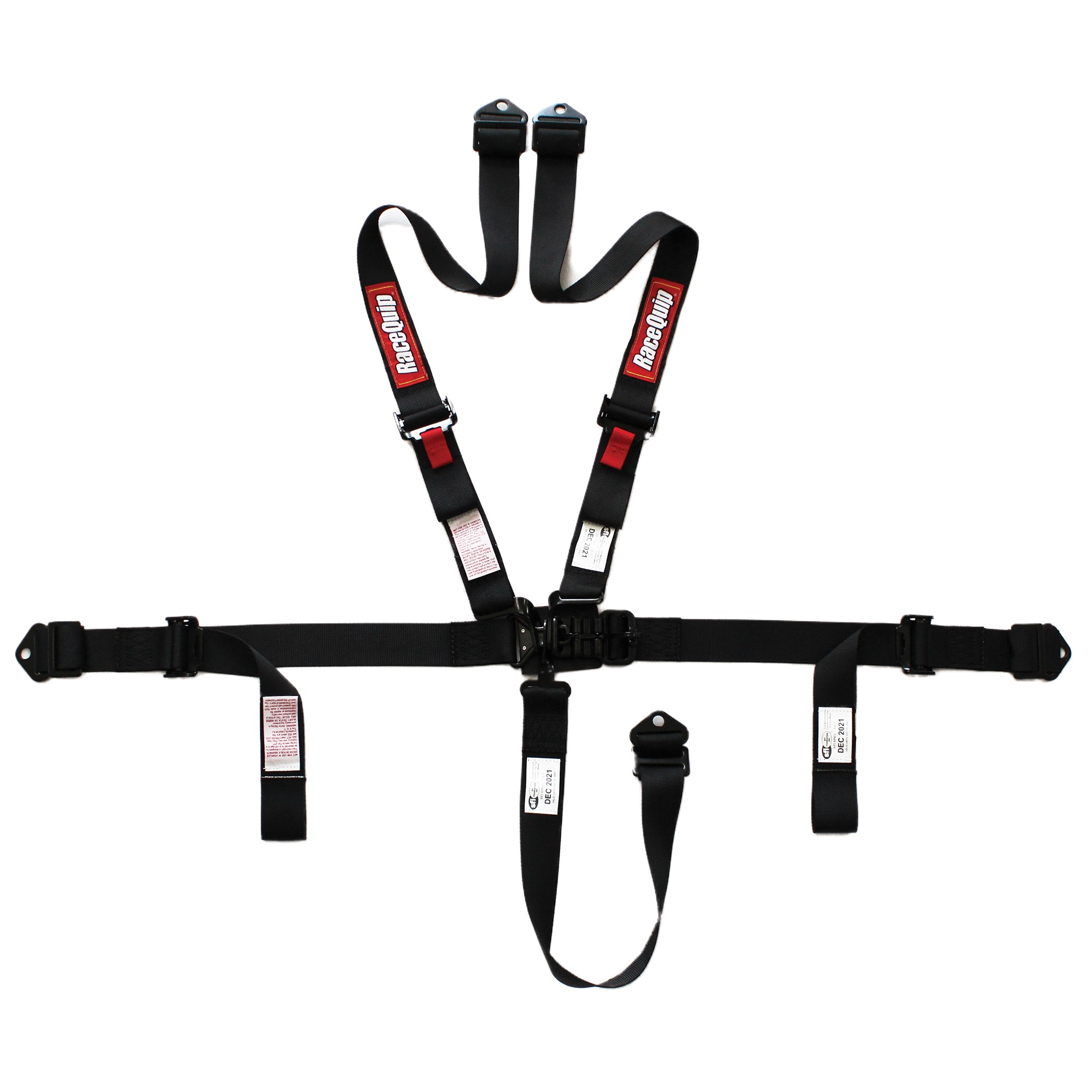

RaceQuip's all 2" small buckle Latch & Link Pro 5-point auto racing harness set has twin individual HANS / HNR style shoulder belts and is manufactured using premium polyester webbing and drop forged steel black hardware to exceed the SFI 16.1 rating. Shoulders are 2" width to accommodate a HANS or other Head & Neck Restraint Device and adjust from 26" to 62" in length. The 2" wide lap belt adjusts from 30" to 65". Many racers now prefer a 2" lap belt because it tucks under the iliac crest (hip bone) so that you can get the lap belt tighter. This harness set is a "pull up lap" design, which means that the lap belt straps must be pulled up and toward the center latch & link buckle mechanism to tighten the belts. This 2" Pro Harness set features a small compact design buckle that is lightweight and stays out of the way. Both shoulder belts and the sub-belt are hooked over the link; the link is inserted into the latch on the lap belt; the lever is then brought down into and over the link, securely holding all the pieces in place. Since RaceQuip seat belt sets are "double adjustable", lengths are simply adjusted on either end for ease of installation. Using the included three bar slide you can mount the belts by either wrapping them around a rollbar or by bolting them in place.

RaceQuip was founded in Columbus, Ohio in 1975. Since then, we have enjoyed a reputation for manufacturing high quality auto racing safety equipment at a great value. Racers worldwide look to the RaceQuip name for all their motorsports safety needs.

Features & benefits

• NOT D.O.T. / FMVSS Certified for on Highway Use
• Premium 2" Polyester Webbing
• Pull Up Style Lap Belt
• 5 Point Design - Single 2" Crotch Strap
• 2" Hardware Ends Installed
• Double Adjustable for Ease of Installation
• Wrap Around or Bolt-in Mounting
• Drop-Forged Steel Hardware
• Lap Belt Adjusts 30" to 65"
• Twin Individual 2" HANS / HNR Shoulder Belts
• Black Epoxy Coated Hardware

Specifications
