G-Power Spark Plug: Single Platinum Tip, ZFR5BGP

Part Number 90804 (132648698)

UPC: 87295908044

Package contents: 1 Each per Box

Select vehicle for guaranteed fit

$1.88

In stockShips by 29th Oct

Description

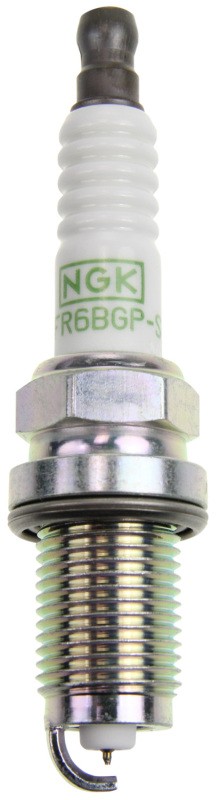

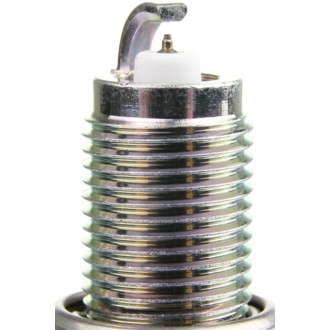

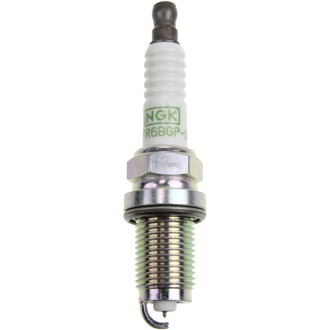

NGK G-Power Platinum spark plugs are the best single platinum spark plugs at an economical price. G-Power plugs feature a fine wire platinum center electrode and a trapezoidal cut ground electrode that offers increased durability, improved fuel efficiency, lower emissions, faster starts and quicker acceleration over conventional nickel spark plugs. An excellent upgrade for vehicles which used nickel alloy spark plugs originally. For better performance consider upgrading to a NGK Iridium IX plug. For even greater performance consider upgrading to a NGK RUTHENIUM HX plug.

Fitment

This part fits the following vehicles.

2003-2006 Acura MDX
2005-2010 Honda Odyssey
2006-2008 Honda Pilot
2006-2008 Honda Ridgeline
2004-2007 Saturn Vue
2001-2008 Volkswagen Beetle
2001-2002 Volkswagen EuroVan
2001-2006 Volkswagen Golf
2001-2007 Volkswagen Jetta
2006-2009 Volkswagen Rabbit

Features & benefits

RECOMMENDED USAGE: Lower cost alternative to double precious metal spark plugs or as an upgrade to OE nickel alloy spark plugs
Pure alumina silicate ceramic insulator provides superior strength and better heat transfer
Trivalent metal plating for superior anti-corrosion and anti-seizing properties
Trapezoid cut ground electrode reduces quenching
Corrugated ribs prevent flashover
Copper core aids in heat removal
Triple seals prevent leakage
SINGLE PLATINUM TIP: Fine wire 0.6 millimeter platinum tip center electrode ensures improved durability and a consistently stable spark
SOLID COPPER CORE: 98% pure copper core offers superior heat dissipation, conductivity and ultra wide heat ranges
COLD-ROLLED THREADS: Prevents cross-threading and damage to cylinder heads
PLATINUM ALLOY: G-Power platinum provides exceptional value with increased performance and longer service intervals than factory nickel plugs
TRAPEZOIDAL CUT GROUND ELECTRODE: Reduces quenching design produces improved ignitability and performance

Specifications

Center Electrode Core Material	Copper
Center Electrode Design	Fine Wire
Center Electrode Insulator Tip Projection	5.0 mm
Center Electrode Projection	Long Projection
Center Electrode Tip Material	Platinum
Color	Platinum
Country Of Origin	JP
Electrical Terminal Type	Non-Removable Nut
Grade Type	Standard Replacement
Ground Configuration	J-Gap
Ground Electrode Core Material	Nickel
Ground Electrode Quantity	1
Ground Electrode Tip Design	Trapezoid
Ground Electrode Tip Material	Nickel
Hex Size	5/8" (16mm)
Insulator Height	50.5 mm
Insulator Material	Ceramic
Manufacturer Heat Range	5
Metallurgy	Single Platinum
Part Number	ZFR5BGP
Pre-Gap Size	1.0 mm
Reach	19.0 mm
Resistance	5000.0 82
Resistor Type	Yes
Seat Type	Flat
Service Number	ZFR5BGP
Short Style Spark Plug	No
Skirt	Yes
Skirt Length	1.5 mm
Street Legal	Yes
Thread Size	M14 - 1.25
Thread Type Standard	Metric
Washer Type	Crush
Washer(s) Included	Yes
