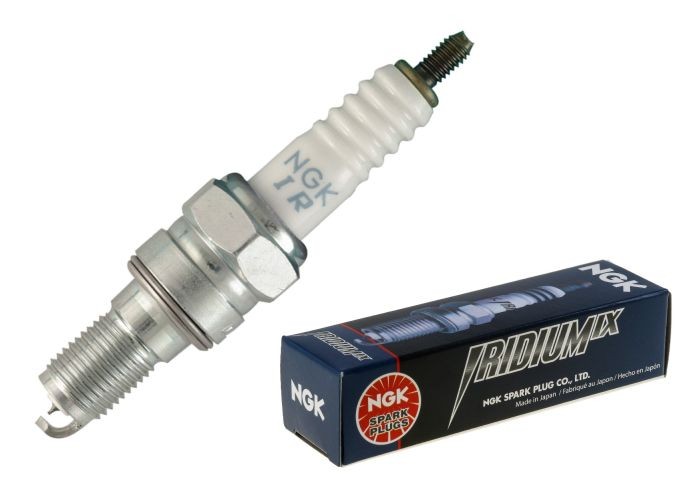

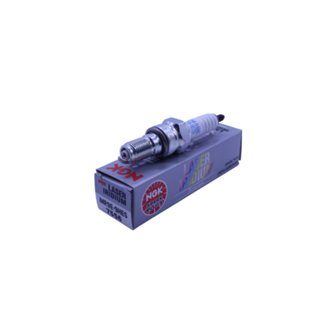

IMR9E-9HES Laser Iridium Spark Plug 12.7MM Thread

Part Number 7556 (132648963)
Package contents: 1 Each per Box
Select vehicle for guaranteed fit
PERFORMANCE PART
$15.48

In stockShips by 18th Nov

Description

NGK Laser Iridium High Ignitability spark plugs offer the best combination of performance and longevity. Engineered specifically for OE applications, Laser Iridium High Ignitability spark plugs are tested to the highest standards to ensure quality and durability. Iridium tipped center electrode provides durability six times harder than platinum. NGKs high grade pure alumina ceramic and 98 percent pure copper core prevents the spark plug from overheating while providing reliable starts. Laser Iridium High Ignitability spark plugs feature raised platinum pad or platinum fine wire tip on the ground electrode for even wear in distributorless ignition systems and improved spark performance.

Fitment

This part fits the following vehicles.

Honda

  • 2011-2016, 2018-2019 CB1000R
  • 2019 CB650R
  • 2019-2020 CB650R ABS
  • 2008-2019 CBR1000RR
  • 2019 CBR1000RR ABS
  • 2019 CBR1000RR SP
  • 2009-2012 CBR600RR
  • 2019 CBR650R
  • 2019-2020 CBR650R ABS
  • 2010, 2012-2013 VFR1200F
  • 2010, 2012-2013 VFR1200F DCT

Features & benefits

  • RECOMMENDED USAGE: Best for vehicles with OE SPE iridium alloy plugs
  • SPE DESIGN: Square platinum electrode shape of the ground electrode provides the best ignitability and service life for high heat engines
  • IRIDIUM ALLOY CENTER ELECTRODE: Iridium's density (6x that of platinum) and extremely high melting point is perfect for modern high efficiency engines
  • ACTUAL OE or EQUIVALENT HIGH IGNITABILITY DESIGN: SPE tip & iridium alloy center electrode produce the most advanced OE spark plug technology
  • SOLID COPPER CORE: 98% pure copper core offers superior heat dissipation, conductivity and ultra wide heat ranges
  • TRIVALENT METAL PLATING: Delivers superior anti-corrosion and anti-seizing properties, ensuring ease of installation and removal
  • Pure alumina silicate ceramic insulator provides superior strength and better heat transfer
  • Trivalent metal plating for superior anti-corrosion and anti-seizing properties
  • Copper core aids in heat removal
  • Triple seals prevent leakage

Specifications

Barcode 00087295075562
Center Electrode Core Material Copper
Center Electrode Design Fine Wire
Center Electrode Insulator Tip Projection 2.0 mm
Center Electrode Projection Mid Projection
Center Electrode Tip Material Iridium
Country Of Origin JP
Dimensions 4" x 3.6" x 0.9"
Electrical Terminal Type Stud
Grade Type Performance
Ground Configuration J-Gap
Ground Electrode Core Material Nickel
Ground Electrode Quantity 1
Ground Electrode Tip Design Square Platinum Electrode (SPE) - High Ignitability
Ground Electrode Tip Material Platinum
Hex Size 5/8" (16mm)
Insulator Height 48.9 mm
Insulator Material Ceramic
Manufacturer Heat Range 9
Metallurgy Iridium Platinum
Part Number IMR9E-9HES
Pre-Gap Size 0.9 mm
Reach 19.0 mm
Resistance 5000.0 82
Resistor Type Yes
Seat Type Flat
Service Number IMR9E-9HES
Short Style Spark Plug No
Skirt No
Skirt Length 0.0 mm
Street Legal Yes
Thread Size M10 - 1.0
Thread Type Standard Metric
Washer Type Crush
Washer(s) Included Yes
Weight 0.33 lbs
