NGK Authorized Dealer

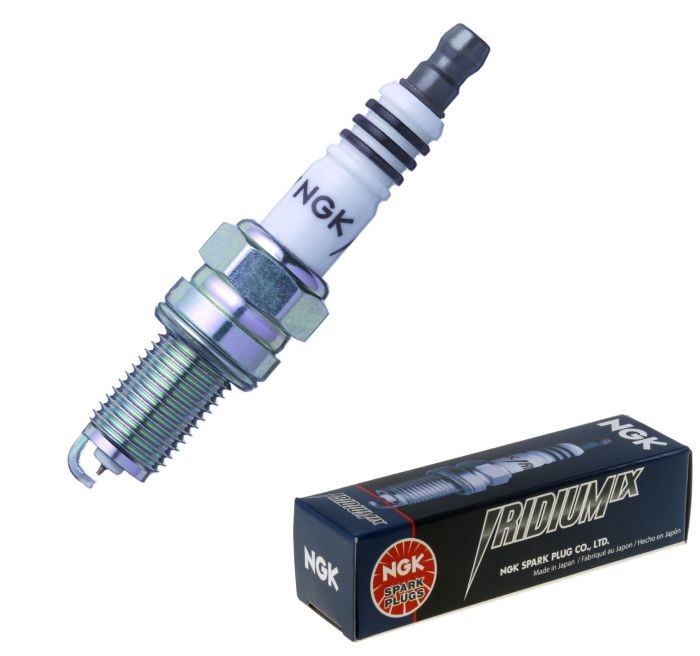

Iridium IX Spark Plug Box of 4 (DCPR6EIX

Part Number 8196 (132649113)

UPC: 87295081969

Package contents: 1 Each

Select vehicle for guaranteed fit

$9.09

In stockShips by 9th Nov

Description

NGK Iridium IX spark plugs are specifically designed for the performance enthusiast. Iridium IX provides outstanding acceleration, high fuel efficiency and durability. NGK Iridium IX plugs offer extreme ignitability and exceptional anti-fouling. Tapered cut ground electrode provides improved starting, idling and throttle response. The Iridium fine wire center electrode's durability is six times harder than platinum. Iridium alloy's extremely high melting point is perfect for today's engines. For even greater performance consider upgrading to an NGK Ruthenium HX plug.

Fitment

This part fits the following vehicles.

Honda

2010, 2012-2016 VT1300CRA Stateline ABS
2010-2016 VT1300CR Stateline
2010, 2012-2014 VT1300CSA Sabre ABS
2010-2014 VT1300CS Sabre
2011-2015 VT1300CTA Interstate ABS
2010-2015 VT1300CT Interstate
2012-2016, 2018-2019 VT13CXA Fury ABS
2010-2020 VT13CX Fury
2004-2009 VTX1300C
2005-2009 VTX1300R
2003-2007 VTX1300S
2008-2009 VTX1300T

Victory

2009-2013 Arlen Ness Vision
2013-2014 Boardwalk
2011-2012 Cory Ness Cross Country
2013 Cory Ness Cross Country Tour
2010-2017 Cross Country
2014-2016 Cross Country 8-Ball
2012-2017 Cross Country Tour
2010-2012 Cross Roads
2013-2014 Cross Roads Classic
2012 Cross Roads Classic LE
2015-2017 Gunner
2008-2011 Hammer
2010-2015 Hammer 8-Ball
2009-2012, 2016-2017 Hammer S
2012-2017 High-Ball
2013-2014 Judge
2008-2012 Kingpin
2008-2011 Kingpin 8-Ball
2009 Kingpin Low
2008-2009 Kingpin Tour
2015-2017 Magnum
2017 Magnum X-1
2016 Magnum X-1 Stealth Edition
2014 Ness Cross Country
1998-2001 V92C Standard Cruiser
2001 V92C Standard Cruiser Deluxe
2000 V92C Standard Cruiser Special Edition
2000-2001 V92SC Sport Cruiser
2008-2012, 2016-2017 Vegas
2008-2017 Vegas 8-Ball
2008-2013 Vegas Jackpot
2008-2009 Vegas Low
2016-2017 Vision
2010-2011 Vision 8-Ball
2008-2009 Vision Street
2008-2015 Vision Tour
2013 Zach Ness Cross Country
2011-2012 Zach Ness Vegas

Features & benefits

TRIVALENT METAL PLATING: Delivers superior anti-corrosion and anti-seizing properties, ensuring ease of installation and removal
IRIDIUM ALLOY CENTER ELECTRODE: Iridium's density (6x that of platinum) and extremely high melting point is perfect for modern high efficiency engines
RECOMMENDED USAGE: Modified or high performance applications, or as an upgrade to OE nickel alloy spark plugs
SOLID COPPER CORE: 98% pure copper core offers superior heat dissipation, conductivity and ultra wide heat ranges
TAPERED CUT GROUND ELECTRODE: Reduced quenching design produces outstanding ignitability, improved acceleration, fuel efficiency and durability
SINGLE IRIDIUM TIP: Fine wire 0.6 millimeter iridium tip center electrode ensures high durability and a consistently stable spark
Trivalent metal plating for superior anti-corrosion and anti-seizing properties
Outstanding acceleration, high fuel efficiency and durability
Fine iridium tip ensures durable and consistent spark

Specifications

Center Electrode Core Material	Copper
Center Electrode Design	Fine Wire
Center Electrode Insulator Tip Projection	3.0 mm
Center Electrode Projection	Mid Projection
Center Electrode Tip Material	Iridium
Country Of Origin	JP
Electrical Terminal Type	Removable Nut
Grade Type	Performance
Ground Configuration	J-Gap
Ground Electrode Core Material	Nickel
Ground Electrode Quantity	1
Ground Electrode Tip Design	Taper Cut
Ground Electrode Tip Material	Nickel
Hex Size	5/8" (16mm)
Insulator Height	51.0 mm
Insulator Material	Ceramic
Manufacturer Heat Range	6
Metallurgy	Single Iridium
Part Number	DCPR6EIX
Pre-Gap Size	0.8 mm
Reach	19.0 mm
Resistance	5000.0 82
Resistor Type	Yes
Seat Type	Flat
Service Number	DCPR6EIX
Short Style Spark Plug	No
Skirt	No
Skirt Length	0.0 mm
Street Legal	Yes
Thread Size	M12 - 1.25
Thread Type Standard	Metric
Washer Type	Crush
Washer(s) Included	Yes
