NGK Authorized Dealer

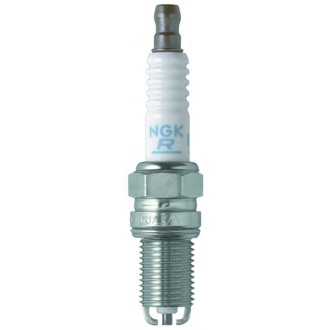

OE Series Laser Iridium Spark Plug: Fine Wire Tip, IFR9H11

Part Number 6588 (132649010)
UPC: 87295165881
Package contents: 1 Each per Box
Select vehicle for guaranteed fit
PERFORMANCE PART
$15.69
In stockShips by 26th Oct

Description

NGK Laser Iridium spark plugs offer the best combination of performance and longevity. Engineered specifically for OE applications, Laser Iridium spark plugs are tested to the highest standards to ensure quality and durability. Iridium tipped center electrode provides durability six times harder than platinum. NGKs high grade pure alumina ceramic and 98 percent pure copper core prevents the spark plug from overheating while providing reliable starts. Most Laser Iridium spark plugs feature a platinum pad on the ground electrode for even wear in distributorless ignition systems.

Fitment

This part fits the following vehicles.

  • 2002-2006 Honda RVT1000R RC51

Features & benefits

  • Pure alumina silicate ceramic insulator provides superior strength and better heat transfer
  • Trivalent metal plating for superior anti-corrosion and anti-seizing properties
  • RECOMMENDED USAGE: Best for vehicles with OE fine wire iridium alloy plugs
  • Copper core aids in heat removal
  • Triple seals prevent leakage
  • ACTUAL OE or EQUIVALENT DESIGN: OEM quality construction fine wire iridium alloy center electrode provides consistent performance
  • SOLID COPPER CORE: 98% pure copper core offers superior heat dissipation, conductivity and ultra wide heat ranges
  • TRIVALENT METAL PLATING: Delivers superior anti-corrosion and anti-seizing properties, ensuring ease of installation and removal
  • PLATINUM TIP GROUND ELECTRODE: Unless OE specified, platinum protection at the ground electrode provides excellent ignitability and service life
  • IRIDIUM ALLOY CENTER ELECTRODE: Iridium's density (6x that of platinum) and extremely high melting point is perfect for modern high efficiency engines

Specifications

Center Electrode Core Material Copper
Center Electrode Design Fine Wire
Center Electrode Insulator Tip Projection 2.0 mm
Center Electrode Projection Mid Projection
Center Electrode Tip Material Iridium
Country Of Origin JP
Electrical Terminal Type Non-Removable Nut
Grade Type Performance
Ground Configuration J-Gap
Ground Electrode Core Material Nickel
Ground Electrode Quantity 1
Ground Electrode Tip Design Taper Cut
Ground Electrode Tip Material Platinum
Hex Size 5/8" (16mm)
Insulator Height 50.5 mm
Insulator Material Ceramic
Manufacturer Heat Range 9
Metallurgy Iridium Platinum
Part Number IFR9H11
Pre-Gap Size 1.1 mm
Reach 19.0 mm
Resistance 5000.0 82
Resistor Type Yes
Seat Type Flat
Service Number IFR9H11
Short Style Spark Plug No
Skirt No
Skirt Length 0.0 mm
Street Legal Yes
Thread Size M14 - 1.25
Thread Type Standard Metric
Washer Type Crush
Washer(s) Included Yes

Warranty

2 Months
