Description

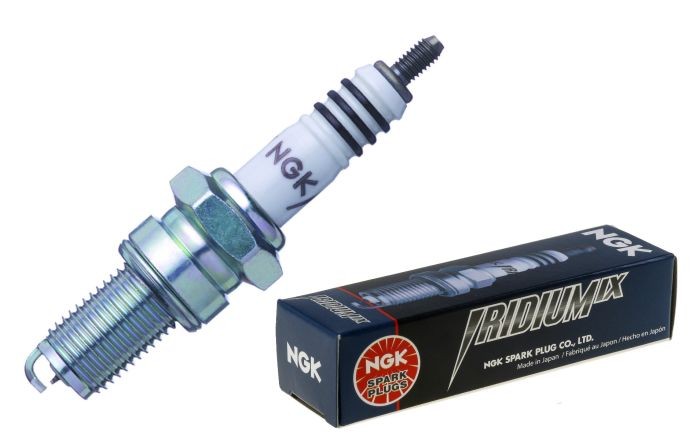

NGK Iridium IX spark plugs are specifically designed for the performance enthusiast. Iridium IX provides outstanding acceleration, high fuel efficiency and durability. NGK Iridium IX plugs offer extreme ignitability and exceptional anti-fouling. Tapered cut ground electrode provides improved starting, idling and throttle response. The Iridium fine wire center electrode's durability is six times harder than platinum. Iridium alloy's extremely high melting point is perfect for today's engines. For even greater performance consider upgrading to an NGK Ruthenium HX plug.
Features & benefits
- RECOMMENDED USAGE: Modified or high performance applications, or as an upgrade to OE nickel alloy spark plugs
- Trivalent metal plating for superior anti-corrosion and anti-seizing properties
- Outstanding acceleration, high fuel efficiency and durability
- Fine iridium tip ensures durable and consistent spark
- TRIVALENT METAL PLATING: Delivers superior anti-corrosion and anti-seizing properties, ensuring ease of installation and removal
- TAPERED CUT GROUND ELECTRODE: Reduced quenching design produces outstanding ignitability, improved acceleration, fuel efficiency and durability
- IRIDIUM ALLOY CENTER ELECTRODE: Iridium's density (6x that of platinum) and extremely high melting point is perfect for modern high efficiency engines
- SOLID COPPER CORE: 98% pure copper core offers superior heat dissipation, conductivity and ultra wide heat ranges
- SINGLE IRIDIUM TIP: Fine wire 0.6 millimeter iridium tip center electrode ensures high durability and a consistently stable spark
Specifications
| Center Electrode Core Material | Copper |
|---|---|
| Center Electrode Design | Fine Wire |
| Center Electrode Insulator Tip Projection | 2.15 |
| Center Electrode Projection | Mid Projection |
| Center Electrode Tip Material | Iridium |
| Electrical Terminal Type | Stud |
| Grade Type | Performance |
| Ground Configuration | J-Gap |
| Ground Electrode Core Material | Nickel |
| Ground Electrode Quantity | 1 |

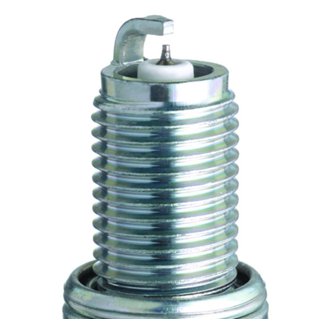

| Ground Electrode Tip Design | Taper Cut |
| Ground Electrode Tip Material | Nickel |
| Hex Size | 18mm |
| Insulator Height | 50.5 |
| Insulator Material | Ceramic |
| Manufacturer Heat Range | 9 |
| Metallurgy | Single Iridium |
| Part Number | DR9EIX |
| Pre-Gap Size | 0.8 |
| Reach | 19.0 |
| Resistance | 5000.0 |
| Resistor Type | Yes |
| Seat Type | Flat |
| Service Number | DR9EIX |
| Short Style Spark Plug | No |
| Skirt | No |
| Skirt Length | 0.0 |
| Stock Number | 4772 |
| Street Legal | Yes |
| Thread Size | M12 - 1.25 |
| Thread Type Standard | Metric |
| Washer Type | Crush |
| Washer(s) Included | Yes |
