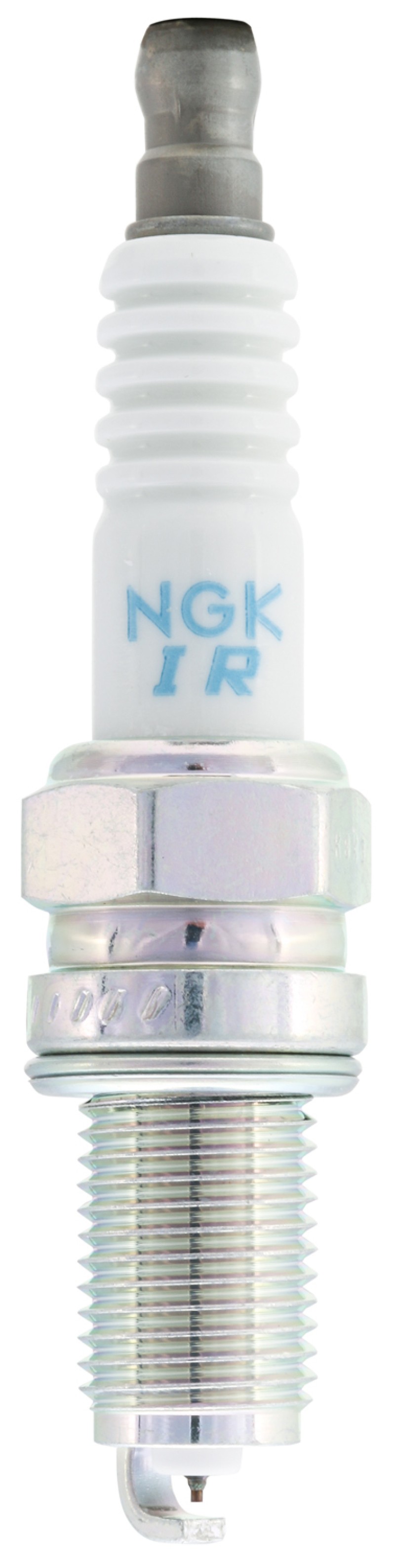

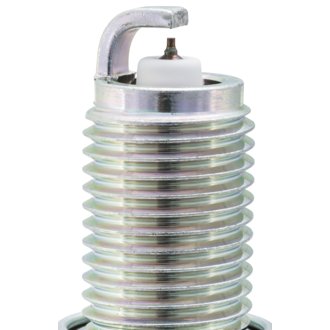

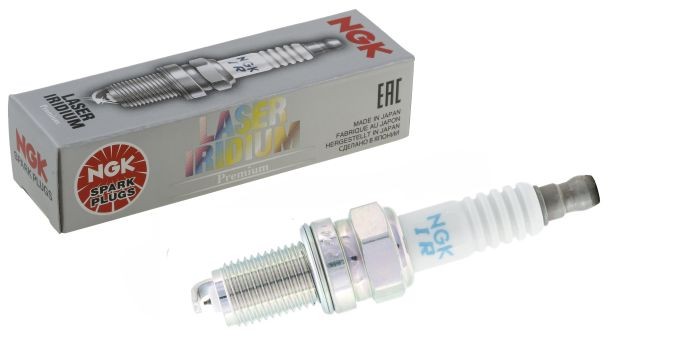

OE Series Laser Iridium Spark Plug: Fine Wire Tip, KR8BI

Part Number 4347 (132648421)

UPC: 87295143476

Package contents: 1 Each

Select vehicle for guaranteed fit

$11.00

In stockShips by 29th Oct

Description

KR8BI / 4347

NGK iridium spark plugs currently represent the highest-quality technological solution. They feature an iridium-alloy on the middle electrode. It is welded on in a special process using laser. The precious metal iridium starts melting at a temperature of 2450°C and is therefore very resistant to spark erosion. To sum things up, by using the iridium spark plug, the service life is doubled on average in comparison to standard nickel spark plugs.

12mm Thread x 19mm

Wrench Size:16mm

Spark gap: 0.7mm

Solid Terminal

Application: Can-Am Spyder RT (12-13)

2 required

Sold individually

Fitment

This part fits the following vehicles.

2010-2011, 2013-2015 Can-Am Spyder RS (SE5)
2010-2011, 2013-2016 Can-Am Spyder RS (SM5)
2010-2011, 2013-2016 Can-Am Spyder RS-S (SE5)
2013-2016 Can-Am Spyder RS-S (SM5)
2010-2013 Can-Am Spyder RT Limited (SE5)
2010-2011, 2013 Can-Am Spyder RT (SE5)
2010-2012 Can-Am Spyder RT (SE5) Audio/Convenience
2010-2013 Can-Am Spyder RT (SM5)
2010-2012 Can-Am Spyder RT (SM5) Audio/Convenience
2012-2013 Can-Am Spyder RT-S (SE5)
2012-2013 Can-Am Spyder RT-S (SM5)
2013-2015 Can-Am Spyder ST Limited (SE5)
2013-2015 Can-Am Spyder ST (SE5)
2013-2015 Can-Am Spyder ST (SM5)
2013-2016 Can-Am Spyder ST-S (SE5)
2013-2015 Can-Am Spyder ST-S (SM5)
2003-2010 Lamborghini Murcielago

Features & benefits

Pure alumina silicate ceramic insulator provides superior strength and better heat transfer
Trivalent metal plating for superior anti-corrosion and anti-seizing properties
RECOMMENDED USAGE: Best for vehicles with OE fine wire iridium alloy plugs
Copper core aids in heat removal
Triple seals prevent leakage
IRIDIUM ALLOY CENTER ELECTRODE: Iridium's density (6x that of platinum) and extremely high melting point is perfect for modern high efficiency engines
SOLID COPPER CORE: 98% pure copper core offers superior heat dissipation, conductivity and ultra wide heat ranges
TRIVALENT METAL PLATING: Delivers superior anti-corrosion and anti-seizing properties, ensuring ease of installation and removal
ACTUAL OE or EQUIVALENT DESIGN: OEM quality construction fine wire iridium alloy center electrode provides consistent performance
PLATINUM TIP GROUND ELECTRODE: Unless OE specified, platinum protection at the ground electrode provides excellent ignitability and service life

Specifications

Center Electrode Core Material	Copper
Center Electrode Design	Fine Wire
Center Electrode Insulator Tip Projection	3.0 mm
Center Electrode Projection	Mid Projection
Center Electrode Tip Material	Iridium
Country Of Origin	JP
Electrical Terminal Type	Non-Removable Nut
Grade Type	Performance
Ground Configuration	J-Gap
Ground Electrode Core Material	Nickel
Ground Electrode Quantity	1
Ground Electrode Tip Design	Standard
Ground Electrode Tip Material	Nickel
Hex Size	5/8" (16mm)
Insulator Height	51.0 mm
Insulator Material	Ceramic
Manufacturer Heat Range	8
Metallurgy	Single Iridium
Part Number	KR8BI
Pre-Gap Size	0.8 mm
Reach	19.0 mm
Resistance	5000.0 82
Resistor Type	Yes
Seat Type	Flat
Service Number	KR8BI
Short Style Spark Plug	No
Skirt	No
Skirt Length	0.0 mm
Street Legal	Yes
Thread Size	M12 - 1.25
Thread Type Standard	Metric
Washer Type	Crush
Washer(s) Included	Yes

Warranty

2 Months
