NGK Authorized Dealer

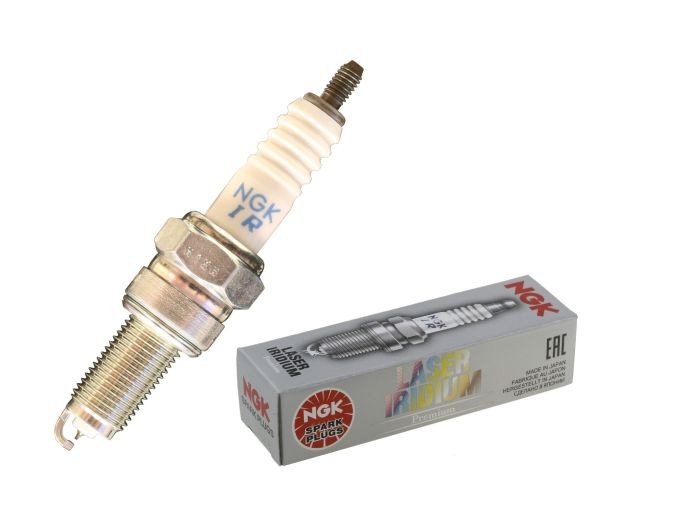

OE Series Laser Iridium High Ignitability Spark Plug: SPE Tip, SIMR8A9

Part Number 91064 (132648803)

UPC: 87295910641

Package contents: 1 Each

Select vehicle for guaranteed fit

$15.99

In stockShips by 29th Oct

Description

NGK Laser Iridium High Ignitability spark plugs offer the best combination of performance and longevity. Engineered specifically for OE applications, Laser Iridium High Ignitability spark plugs are tested to the highest standards to ensure quality and durability. Iridium tipped center electrode provides durability six times harder than platinum. NGKs high grade pure alumina ceramic and 98 percent pure copper core prevents the spark plug from overheating while providing reliable starts. Laser Iridium High Ignitability spark plugs feature raised platinum pad or platinum fine wire tip on the ground electrode for even wear in distributorless ignition systems and improved spark performance.

Fitment

This part fits the following vehicles.

2015-2018 Honda CB300F
2019 Honda CB300R
2019 Honda CB300R ABS
2011-2013 Honda CBR250R
2011-2013 Honda CBR250R ABS
2015-2020 Honda CBR300R
2015-2016, 2019-2020 Honda CBR300R ABS
2017-2020 Honda CMX300 Rebel 300
2019-2020 Honda CMX300 Rebel 300 ABS
2013-2020 Honda CRF250L
2019-2020 Honda CRF250L ABS
2018-2020 Honda CRF250L Rally
2019-2020 Honda CRF250L Rally ABS
2009 Honda NSA700 DN-01

Features & benefits

Pure alumina silicate ceramic insulator provides superior strength and better heat transfer
Trivalent metal plating for superior anti-corrosion and anti-seizing properties
RECOMMENDED USAGE: Best for vehicles with OE SPE iridium alloy plugs
Copper core aids in heat removal
Triple seals prevent leakage

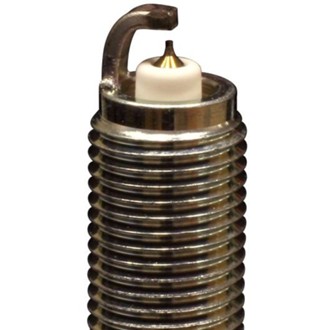

SPE DESIGN: Square platinum electrode shape of the ground electrode provides the best ignitability and service life for high heat engines
TRIVALENT METAL PLATING: Delivers superior anti-corrosion and anti-seizing properties, ensuring ease of installation and removal
IRIDIUM ALLOY CENTER ELECTRODE: Iridium's density (6x that of platinum) and extremely high melting point is perfect for modern high efficiency engines
SOLID COPPER CORE: 98% pure copper core offers superior heat dissipation, conductivity and ultra wide heat ranges
ACTUAL OE or EQUIVALENT HIGH IGNITABILITY DESIGN: SPE tip & iridium alloy center electrode produce the most advanced OE spark plug technology

Specifications

Center Electrode Core Material	Copper
Center Electrode Design	Fine Wire
Center Electrode Insulator Tip Projection	3.0 mm
Center Electrode Projection	Mid Projection
Center Electrode Tip Material	Iridium
Country Of Origin	JP
Electrical Terminal Type	Stud
Grade Type	Performance
Ground Configuration	J-Gap
Ground Electrode Core Material	Nickel
Ground Electrode Quantity	1
Ground Electrode Tip Design	Square Platinum Electrode (SPE) - High Ignitability
Ground Electrode Tip Material	Platinum
Hex Size	5/8" (16mm)
Insulator Height	48.8 mm
Insulator Material	Ceramic
Manufacturer Heat Range	8
Metallurgy	Iridium Platinum
Part Number	SIMR8A9
Pre-Gap Size	0.9 mm
Reach	19.0 mm
Resistance	5000.0 82
Resistor Type	Yes
Seat Type	Flat
Service Number	SIMR8A9
Short Style Spark Plug	No
Skirt	No
Skirt Length	0.0 mm
Street Legal	Yes
Thread Size	M10 - 1.0
Thread Type Standard	Metric
Washer Type	Crush
Washer(s) Included	Yes

Warranty

2 Months
