NGK Authorized Dealer

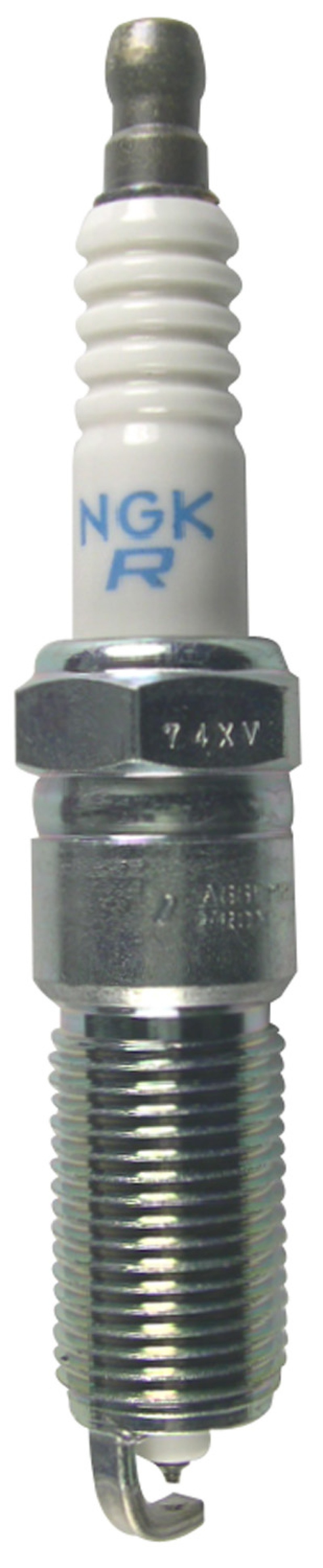

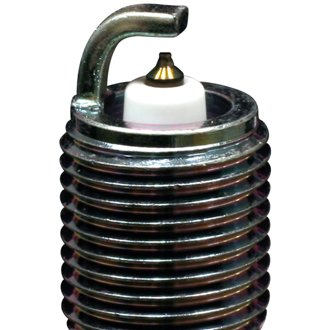

OE Series Laser Platinum Spark Plug: Fine Wire Tip, LTR6BP13

Part Number 94806 (132648783)

UPC: 87295948064

Package contents: 1 Each per Box

Select vehicle for guaranteed fit

$6.44

In stockShips by 26th Oct

Description

NGK Laser Platinum spark plugs provide high ignitability and longer service life compared to conventional nickel spark plugs. Laser Platinum plugs are tested to the highest standards to ensure quality and durability. Engineered specifically for OE applications. Laser platinum plugs provide stable idling, superior anti-fouling, improved fuel efficiency and lower emissions. High-grade pure alumina ceramic and 98% pure copper core prevents spark plug from overheating and provides reliable starts. Most Laser Platinum spark plugs feature a platinum pad on the ground electrode for even wear in distributorless ignition systems.

Fitment

This part fits the following vehicles.

2011-2018 Ford Edge
2011-2020 Ford Explorer
2011-2020 Ford F-150
2012-2019 Ford Flex
2011-2017 Ford Mustang
2013-2019 Ford Police Interceptor Sedan
2013-2020 Ford Police Interceptor Utility
2013-2016 Ford Taurus
2015-2019 Ford Transit-150
2015-2019 Ford Transit-250
2015-2019 Ford Transit-350
2015-2019 Ford Transit-350 HD
2017-2020 Lincoln Continental
2013-2016 Lincoln MKS
2012-2019 Lincoln MKT
2011-2018 Lincoln MKX
2013-2016 Lincoln MKZ
2006-2015 Mazda MX-5 Miata

Features & benefits

Pure alumina silicate ceramic insulator provides superior strength and better heat transfer
Trivalent metal plating for superior anti-corrosion and anti-seizing properties
RECOMMENDED USAGE: Best for vehicles with OE fine wire platinum alloy plugs
Corrugated ribs prevent flashover
Copper core aids in heat removal
Triple seals prevent leakage
ACTUAL OE or EQUIVALENT DESIGN: OEM quality construction fine wire platinum alloy center electrode provides consistent performance
TRIVALENT METAL PLATING: Delivers superior anti-corrosion and anti-seizing properties, ensuring ease of installation and removal
PLATINUM ALLOY CENTER ELECTRODE: Longer wearing and higher temperature resistance compared to traditional nickel spark plugs
PLATINUM TIP GROUND ELECTRODE: Unless OE specified, platinum protection at the ground electrode provides excellent ignitability and service life
SOLID COPPER CORE: 98% pure copper core offers superior heat dissipation, conductivity and ultra wide heat ranges

Specifications

Center Electrode Core Material	Copper
Center Electrode Design	Fine Wire
Center Electrode Insulator Tip Projection	3.5 mm
Center Electrode Projection	Mid Projection
Center Electrode Tip Material	Platinum
Color	Platinum
Country Of Origin	JP
Electrical Terminal Type	Non-Removable Nut
Grade Type	Performance
Ground Configuration	J-Gap
Ground Electrode Core Material	Nickel
Ground Electrode Quantity	1
Ground Electrode Tip Design	Standard
Ground Electrode Tip Material	Nickel
Hex Size	5/8" (16mm)
Insulator Height	52.5 mm
Insulator Material	Ceramic
Manufacturer Heat Range	6
Metallurgy	Single Platinum
Part Number	LTR6BP13
Pre-Gap Size	1.3 mm
Reach	25.0 mm
Resistance	5000.0 82
Resistor Type	Yes
Seat Type	Tapered
Service Number	LTR6BP13
Short Style Spark Plug	No
Skirt	No
Skirt Length	0.0 mm
Street Legal	Yes
Thread Size	M14 - 1.25
Thread Type Standard	Metric
Washer(s) Included	No

Warranty

2 Months

Magnuson-Moss Warranty Act

Legally, a vehicle manufacturer cannot void the warranty on a vehicle due to an aftermarket part unless they can prove that the aftermarket part caused or contributed to the failure in the vehicle (per the Magnuson Moss Warranty Act (15 U.S.C. 2302(C)).
