NGK Authorized Dealer

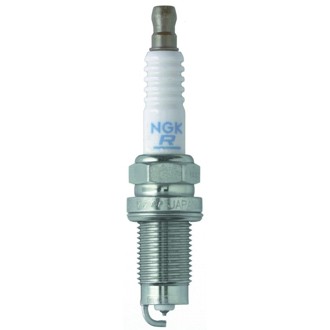

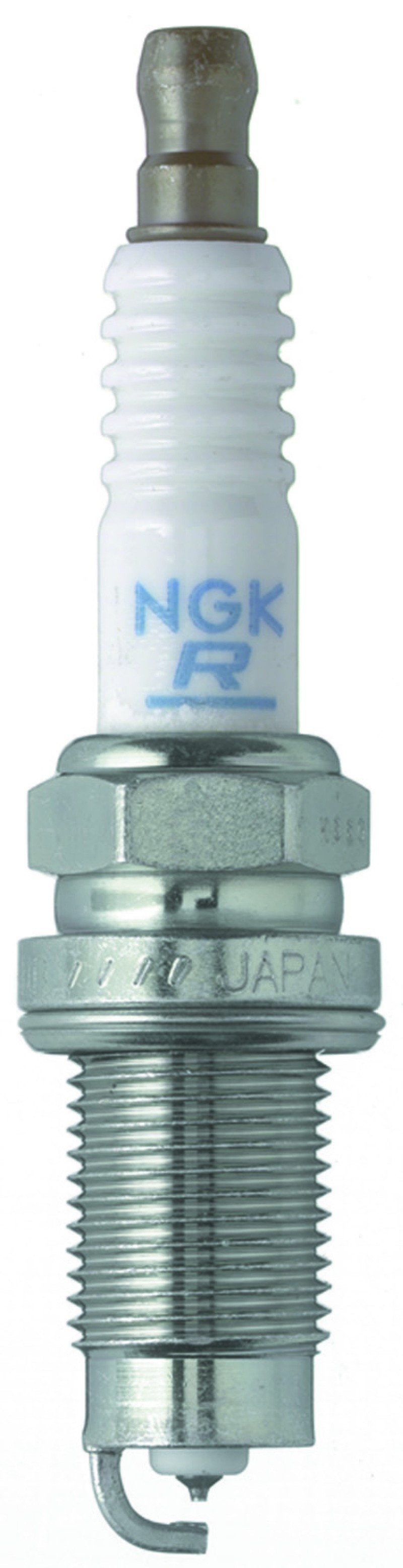

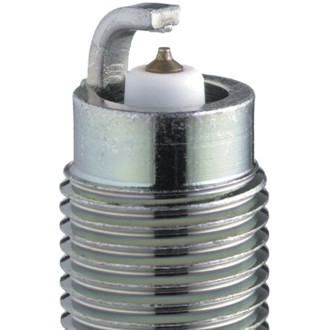

OE Series Laser Platinum Spark Plug: Fine Wire Tip, PFR5B-11B

Part Number 2867 (132648284)
UPC: 87295128671
Package contents: 1 Each per Box
Select vehicle for guaranteed fit
PERFORMANCE PART
$13.91
In stockShips by 26th Oct

Description

NGK Laser Platinum spark plugs provide high ignitability and longer service life compared to conventional nickel spark plugs. Laser Platinum plugs are tested to the highest standards to ensure quality and durability. Engineered specifically for OE applications. Laser platinum plugs provide stable idling, superior anti-fouling, improved fuel efficiency and lower emissions. High-grade pure alumina ceramic and 98% pure copper core prevents spark plug from overheating and provides reliable starts. Most Laser Platinum spark plugs feature a platinum pad on the ground electrode for even wear in distributorless ignition systems.

Fitment

This part fits the following vehicles.

  • 1990-1996 Nissan 300ZX

Features & benefits

  • Pure alumina silicate ceramic insulator provides superior strength and better heat transfer
  • Trivalent metal plating for superior anti-corrosion and anti-seizing properties
  • RECOMMENDED USAGE: Best for vehicles with OE fine wire platinum alloy plugs
  • Corrugated ribs prevent flashover
  • Copper core aids in heat removal
  • Triple seals prevent leakage
  • PLATINUM ALLOY CENTER ELECTRODE: Longer wearing and higher temperature resistance compared to traditional nickel spark plugs
  • ACTUAL OE or EQUIVALENT DESIGN: OEM quality construction fine wire platinum alloy center electrode provides consistent performance
  • SOLID COPPER CORE: 98% pure copper core offers superior heat dissipation, conductivity and ultra wide heat ranges
  • PLATINUM TIP GROUND ELECTRODE: Unless OE specified, platinum protection at the ground electrode provides excellent ignitability and service life
  • TRIVALENT METAL PLATING: Delivers superior anti-corrosion and anti-seizing properties, ensuring ease of installation and removal

Specifications

Center Electrode Core Material Copper
Center Electrode Design Fine Wire
Center Electrode Insulator Tip Projection 6.5 mm
Center Electrode Projection Extra-Long Projection
Center Electrode Tip Material Platinum
Color Platinum
Country Of Origin JP
Electrical Terminal Type Non-Removable Nut
Grade Type Performance
Ground Configuration J-Gap
Ground Electrode Core Material Nickel
Ground Electrode Quantity 1
Ground Electrode Tip Design Standard
Ground Electrode Tip Material Platinum
Hex Size 5/8" (16mm)
Insulator Height 50.5 mm
Insulator Material Ceramic
Manufacturer Heat Range 5
Metallurgy Double Platinum
Part Number PFR5B-11B
Pre-Gap Size 1.1 mm
Reach 19.0 mm
Resistance 5000.0 82
Resistor Type Yes
Seat Type Flat
Service Number PFR5B-11B
Short Style Spark Plug No
Skirt Yes
Skirt Length 3.5 mm
Street Legal Yes
Thread Size M14 - 1.25
Thread Type Standard Metric
Washer Type Crush
Washer(s) Included Yes

Warranty

2 Months
