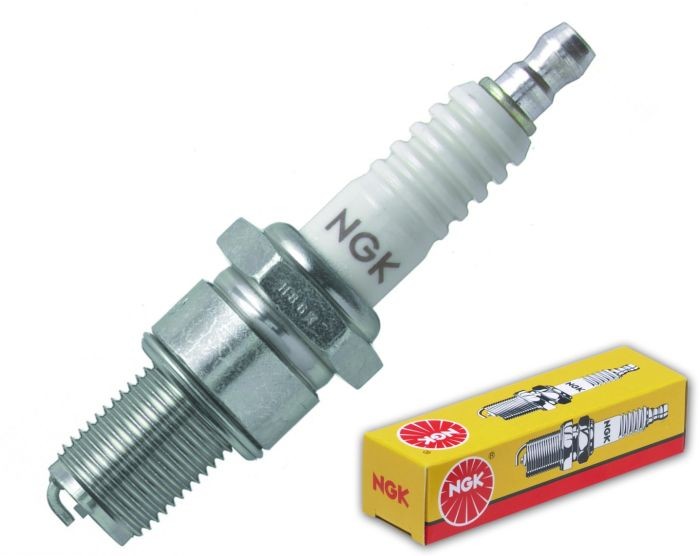

B9EG Racing Plug (Removable Terminal Nut

Part Number 3530 (132648431)

UPC: 87295035306

Package contents: 1 Each

Select vehicle for guaranteed fit

$3.20

In stockShips by 9th Nov

Description

NGK Racing spark plugs are designed with extreme use in mind and meant to withstand the most grueling racing conditions. NGK Spark Plugs have been powering racing champions and can be found in every racing venue throughout the world. The center electrode of the NGK Racing spark plugs has special configurations and designs to ensure durability and ignitability. NGK Racing plugs bring ultra high performance in a variety of heat ranges. Special configurations are used for a wide variety of racing applications.

Fitment

This part fits the following vehicles.

Husqvarna

1990 WXE 250

Kawasaki

1986-1987, 1989-1991 KX250
1983-1984 KX500
1985-2001 KX60
1983-1991 KX80
1987-1991 KX80 Big Wheel

KTM

1990 250 EXC
1984-1988 250 MXC
1990 300 DXC
1990 300 EXC
1990 300 MXC
1989-1990 350 EXC
1985-1988 350 MXC
1985-1986 500 MXC

Suzuki

2003 RM60

Yamaha

1982-1983 IT175
1984-1985 IT200
1982 YZ100
1982-1991, 1994-1998 YZ125
1982, 1984-1987 YZ250

Features & benefits

TRIVALENT METAL PLATING: Delivers superior anti-corrosion and anti-seizing properties, ensuring ease of installation and removal
NGK's OE CERAMIC TECHNOLOGY: High grade alumina silicate ceramic creates a stronger insulator for optimal dielectric performance
SOLID COPPER CORE: 98% pure copper core offers superior heat dissipation, conductivity and ultra wide heat ranges
RECOMMENDED USAGE: Racing use only, featuring special configurations and designs to ensure durability and ignitability
DESIGNED FOR RACING: Conventional nickel alloy center electrode provides consistent performance
COLD-ROLLED THREADS: Prevents cross-threading and damage to cylinder heads
Pure alumina silicate ceramic insulator provides superior strength and better heat transfer
Special insulator nose configurations improve throttle response
Corrugated ribs prevent flashover
Copper core aids in heat removal
Triple seals prevent leakage

Specifications

Center Electrode Core Material	Copper
Center Electrode Design	Fine Wire
Center Electrode Insulator Tip Projection	1.0 mm
Center Electrode Projection	Non-Projected
Center Electrode Tip Material	Nickel
Country Of Origin	JP
Electrical Terminal Type	Removable Nut
Grade Type	Performance
Ground Configuration	J-Gap
Ground Electrode Core Material	Nickel
Ground Electrode Quantity	1
Ground Electrode Tip Design	Standard
Ground Electrode Tip Material	Nickel
Hex Size	13/16"
Insulator Height	55.8 mm
Insulator Material	Ceramic
Manufacturer Heat Range	9
Metallurgy	Copper
Part Number	B9EG
Pre-Gap Size	0.6 mm
Reach	19.0 mm
Resistance	0.0 82
Resistor Type	No
Seat Type	Flat
Service Number	B9EG
Short Style Spark Plug	No
Skirt	No
Skirt Length	0.0 mm
Street Legal	Yes
Thread Size	M14 - 1.25
Thread Type Standard	Metric
Washer Type	Crush
Washer(s) Included	Yes
