NGK Authorized Dealer

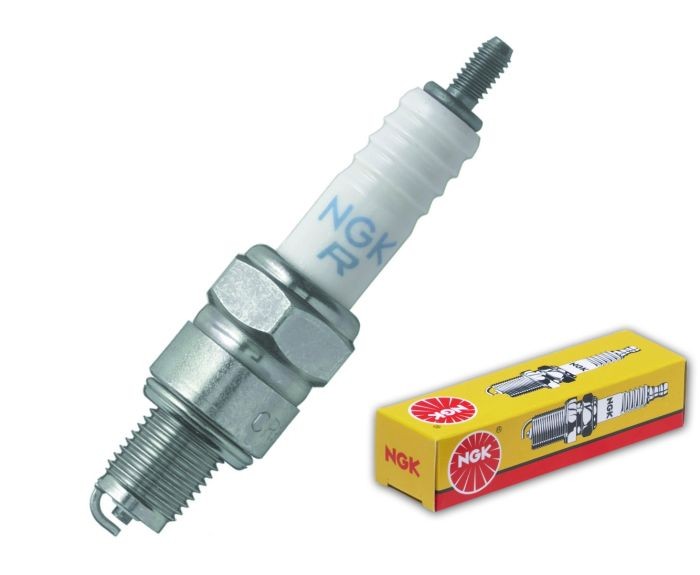

OE Series Standard Nickel Spark Plug: Conventional Tip, CR7HS

Part Number 7223 (132648713)

UPC: 87295072233

Package contents: 1 Each

Select vehicle for guaranteed fit

$3.03

In stockShips by 29th Oct

Description

NGK Standard spark plugs (in the iconic NGK 'yellow box' packaging) are a proven OE cornerstone and technology customers have relied on for decades. Engineered specifically for OE applications, NGK Standard spark plugs provide OE quality nickel alloy reliable performance and design. NGK's legendary high grade alumina silicate ceramic creates a stronger insulator for optimal dielectric performance, while triple gasket sealing prevents combustion gas leakage. Solid 98% pure copper core offers superior heat dissipation, conductivity and ultra wide heat ranges. Trivalent metal plating ensures superior anti-corrosion and anti-seizing properties.

Fitment

This part fits the following vehicles.

2005-2006 Bombardier DS90 4-Stroke
2015-2019 Can-Am DS 70
2007, 2015-2019 Can-Am DS 90
2012, 2015-2019 Can-Am DS 90 X
1982-1985 Honda ATC70
1982-1983 Honda C70
1985-2007 Honda CH80 Elite
1982 Honda CM200T Twinstar
1982 Honda CT70
1986-1987 Honda TRX70
1982-1985 Honda XL80S
1982-1984 Honda XR100
2003-2005 Kasea Skyhawk 250
2003 Vento Phantom R3
2004-2006 Vento Phantom r4i
1999-2004 Yamaha YFA-1 Breeze125
1985-1988, 1992-2001 Yamaha YFM80 Badger
2002-2003 Yamaha YFM80W Raptor

Features & benefits

TRIVALENT METAL PLATING: Delivers superior anti-corrosion and anti-seizing properties, ensuring ease of installation and removal
Pure alumina silicate ceramic insulator provides superior strength and better heat transfer
Trivalent metal plating for superior anti-corrosion and anti-seizing properties
Corrugated ribs prevent flashover
Copper core aids in heat removal
Triple seals prevent leakage
SOLID COPPER CORE: 98% pure copper core offers superior heat dissipation, conductivity and ultra wide heat ranges
RECOMMENDED USAGE: Best for vehicles with OE nickel alloy plugs, not recommended on vehicles with factory precious metal plugs
COLD-ROLLED THREADS: Prevents cross-threading and damage to cylinder heads
ACTUAL OE or EQUIVALENT DESIGN: OEM quality construction nickel alloy center electrode provides consistent performance
NGK's OE CERAMIC TECHNOLOGY: High grade alumina silicate ceramic creates a stronger insulator for optimal dielectric performance

Specifications

Center Electrode Core Material	Copper
Center Electrode Design	Standard
Center Electrode Insulator Tip Projection	1.5 mm
Center Electrode Projection	Non-Projected
Center Electrode Tip Material	Nickel
Color	Nickel
Country Of Origin	TH
Electrical Terminal Type	Stud
Grade Type	Standard Replacement
Ground Configuration	J-Gap
Ground Electrode Core Material	Nickel
Ground Electrode Quantity	1
Ground Electrode Tip Design	Standard
Ground Electrode Tip Material	Nickel
Hex Size	5/8" (16mm)
Insulator Height	50.6 mm
Insulator Material	Ceramic
Manufacturer Heat Range	7
Metallurgy	Copper
Part Number	CR7HS
Pre-Gap Size	0.7 mm
Reach	12.7 mm
Resistance	5000.0 82
Resistor Type	Yes
Seat Type	Flat
Service Number	CR7HS
Short Style Spark Plug	No
Skirt	No
Skirt Length	0.0 mm
Street Legal	Yes
Thread Size	M10 - 1.0
Thread Type Standard	Metric
Washer Type	Crush
Washer(s) Included	Yes
