NGK Authorized Dealer

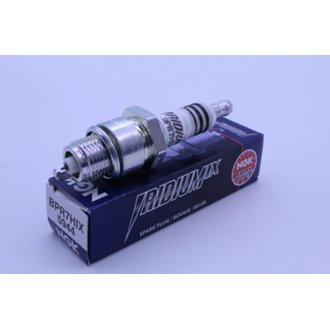

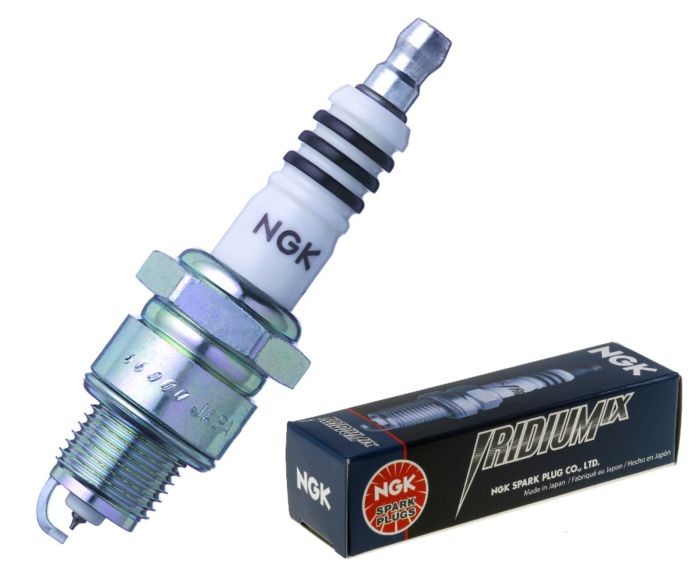

IX Iridium Spark Plug Box of 4 (BPR7HIX

Part Number 5944 (132649053)

UPC: 87295059449

Package contents: 1 Each

Select vehicle for guaranteed fit

$9.09

In stockShips by 10th Nov

Description

NGK Iridium IX spark plugs are specifically designed for the performance enthusiast. Iridium IX provides outstanding acceleration, high fuel efficiency and durability. NGK Iridium IX plugs offer extreme ignitability and exceptional anti-fouling. Tapered cut ground electrode provides improved starting, idling and throttle response. The Iridium fine wire center electrode's durability is six times harder than platinum. Iridium alloy's extremely high melting point is perfect for today's engines. For even greater performance consider upgrading to an NGK Ruthenium HX plug.

Fitment

This part fits the following vehicles.

Aprilia

2004 Mojito Custom 50
2002-2004 SR 50 Ditech

Ducati

1997 400

E-TON

2010 Beamer 50
2010 Matrix 150
2010 Matrix 50

Suzuki

1976 A100
1971 T125R
1971 TC120

Vento

2007 Triton LI

Yamaha

1986-1988, 1990 BW80
1988-1990 CG50 Jog
1983-1984 CV80 Riva 80
1989-1990 CW50 Zuma
2002-2005 YJ50RA Vino Classic
2001-2004 YJ50 Vino
2002-2005, 2008-2011 YW50 Zuma

Features & benefits

SOLID COPPER CORE: 98% pure copper core offers superior heat dissipation, conductivity and ultra wide heat ranges
SINGLE IRIDIUM TIP: Fine wire 0.6 millimeter iridium tip center electrode ensures high durability and a consistently stable spark
TAPERED CUT GROUND ELECTRODE: Reduced quenching design produces outstanding ignitability, improved acceleration, fuel efficiency and durability
TRIVALENT METAL PLATING: Delivers superior anti-corrosion and anti-seizing properties, ensuring ease of installation and removal
RECOMMENDED USAGE: Modified or high performance applications, or as an upgrade to OE nickel alloy spark plugs
IRIDIUM ALLOY CENTER ELECTRODE: Iridium's density (6x that of platinum) and extremely high melting point is perfect for modern high efficiency engines
Trivalent metal plating for superior anti-corrosion and anti-seizing properties
Outstanding acceleration, high fuel efficiency and durability
Fine iridium tip ensures durable and consistent spark

Specifications

Center Electrode Core Material	Copper
Center Electrode Design	Fine Wire
Center Electrode Insulator Tip Projection	4.0 mm
Center Electrode Projection	Mid Projection
Center Electrode Tip Material	Iridium
Country Of Origin	JP
Electrical Terminal Type	Removable Nut
Grade Type	Performance
Ground Configuration	J-Gap
Ground Electrode Core Material	Nickel
Ground Electrode Quantity	1
Ground Electrode Tip Design	Taper Cut
Ground Electrode Tip Material	Nickel
Hex Size	13/16"
Insulator Height	54.3 mm
Insulator Material	Ceramic
Manufacturer Heat Range	7
Metallurgy	Single Iridium
Part Number	BPR7HIX
Pre-Gap Size	0.8 mm
Reach	12.7 mm
Resistance	5000.0 82
Resistor Type	Yes
Seat Type	Flat
Service Number	BPR7HIX
Short Style Spark Plug	No
Skirt	No
Skirt Length	0.0 mm
Street Legal	Yes
Thread Size	M14 - 1.25
Thread Type Standard	Metric
Washer Type	Crush
Washer(s) Included	Yes

Warranty

2 Months

Magnuson-Moss Warranty Act

Legally, a vehicle manufacturer cannot void the warranty on a vehicle due to an aftermarket part unless they can prove that the aftermarket part caused or contributed to the failure in the vehicle (per the Magnuson Moss Warranty Act (15 U.S.C. 2302(C)).

California residents

WARNING: This product can expose you to chemicals including nickel, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov.
